Intake Manifold

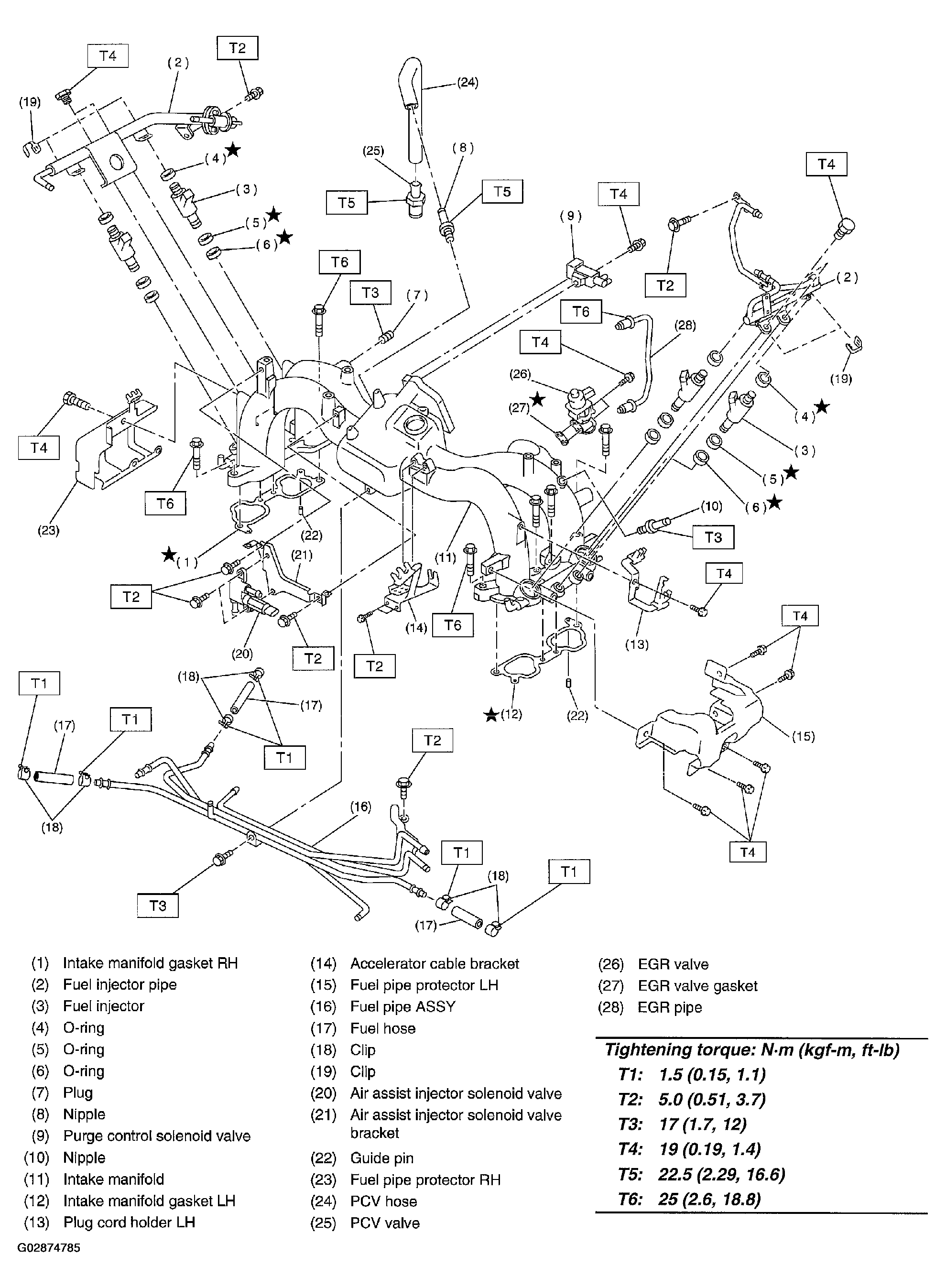

Fig 1: Exploded View Of Intake Manifold Component With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
