Pressure Sensor: Installation

Install in the reverse order of removal.

Tightening torque: 2.4 N.m (0.24 kgf-m, 1.7 ft-lb)

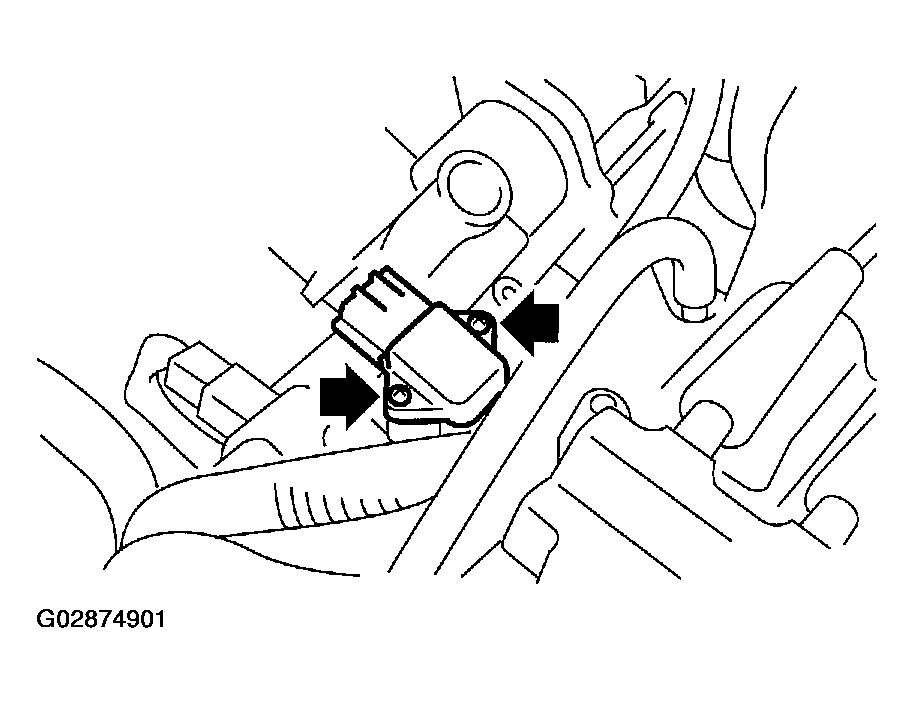

Fig 1: Installing Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Replace O-ring with a new one.
