Rear Oxygen Sensor: Installation

Before installing rear oxygen sensor, apply anti-seize compound only to threaded portion of rear oxygen sensor to make the next removal easier.
CAUTION: Never apply anti-seize compound to protector of rear oxygen sensor.
1. Anti-seize compound: SS-30 by JET LUBE

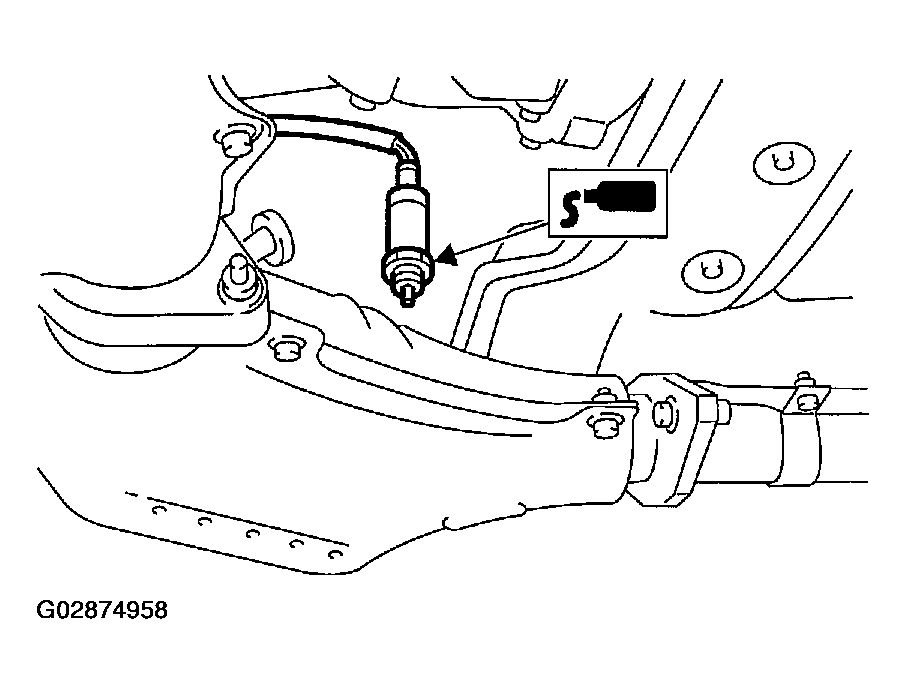

Fig 1: Apply Anti-Seize Compound
Courtesy of SUBARU OF AMERICA, INC.
Install rear oxygen sensor.
1. Tightening torque: 21 N.m (2.1 kgf-m, 15.2 ft-lb)

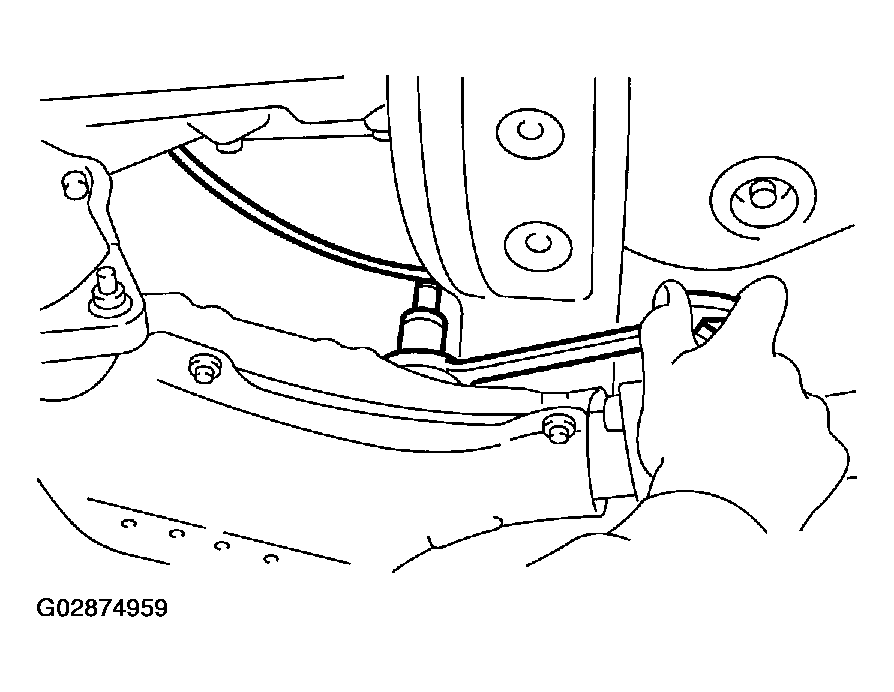

Fig 2: Installing Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect connector to rear oxygen sensor.

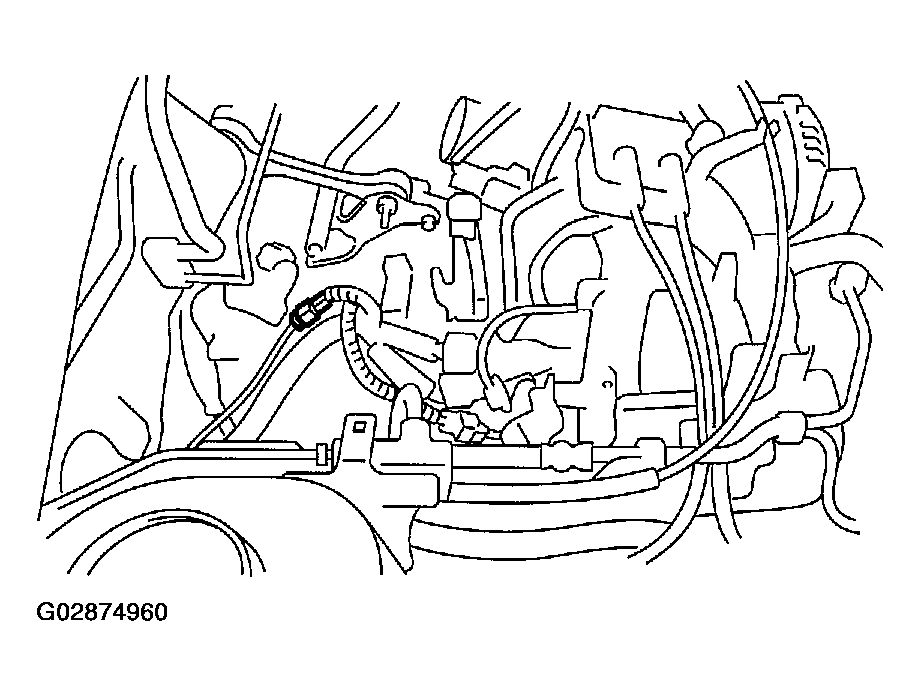

Fig 3: Connecting Connector To Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect battery ground cable.

Fig 4: Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
