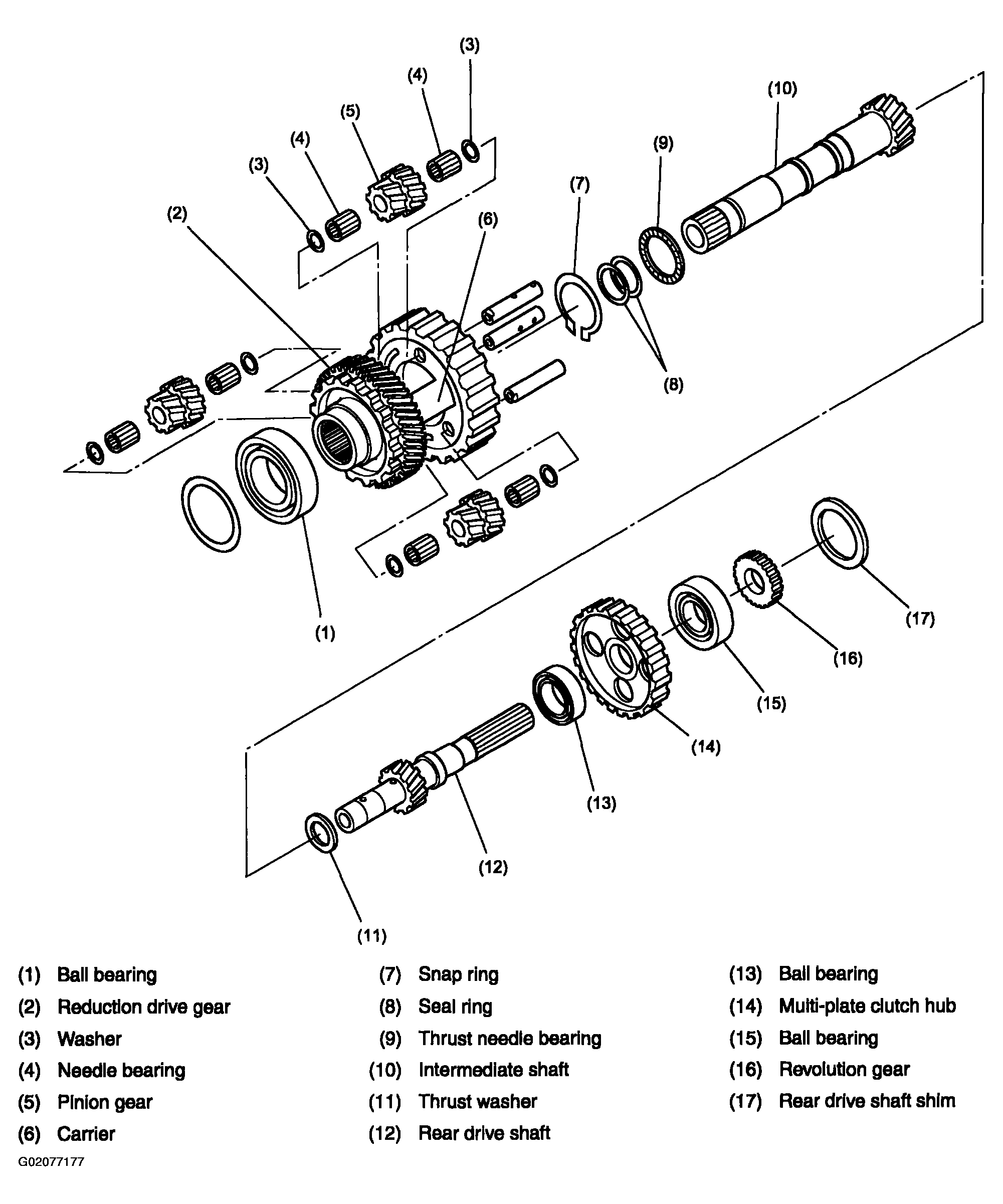

Center Differential Assembly
The center differential is a compound planetary gear set without internally-toothed gears. The input torque from the automatic transmission is transmitted to the input element of the center differential (1st sun gear). The front wheel output elements of the center differential are connected to the carrier and the rear wheel output elements are connected to the 2nd sun gear.
The compound planetary gears uses helical gears for quiet operation and strength. The three pinions are arranged to ensure the best motion balance during operation.
