VTD Models: General
Used in the transfer of the VTD models is the SUBARU drive power distribution system which combines a compound planetary gear type center differential installed in the transfer case behind the transmission and a hydraulically operated multi-plate differential action limiting device (LSD) located between the output components of the center differential. Differential action limiting control is performed by the TCM according to driving and road surface conditions. This system allows combining stability provided by the AWD design with good operability.
The input torque is transmitted to the 1st sun gear of the center differential through the intermediate shaft. From the 1st sun gear, the torque is transmitted through the 1st pinion to the output carrier in the front wheel output components, and through the 2nd pinion to the 2nd sun gear in the rear wheel output components.
The center differential performs the differential functions of absorbing the speed difference between the front and rear wheels and also distributes drive forces to the front and rear wheels at a predetermined ratio. In normal conditions (when there is almost no difference in the speed between the front and rear wheels), the drive force distribution ratio is 45.5 % to the front wheels and 54.5 % to the rear wheels. The hydraulic multi-plate clutch connected in parallel with the center differential between the carrier and 2nd sun gear functions as a differential action limiting device (LSD) and also as a device that controls torque distribution according to driving conditions.

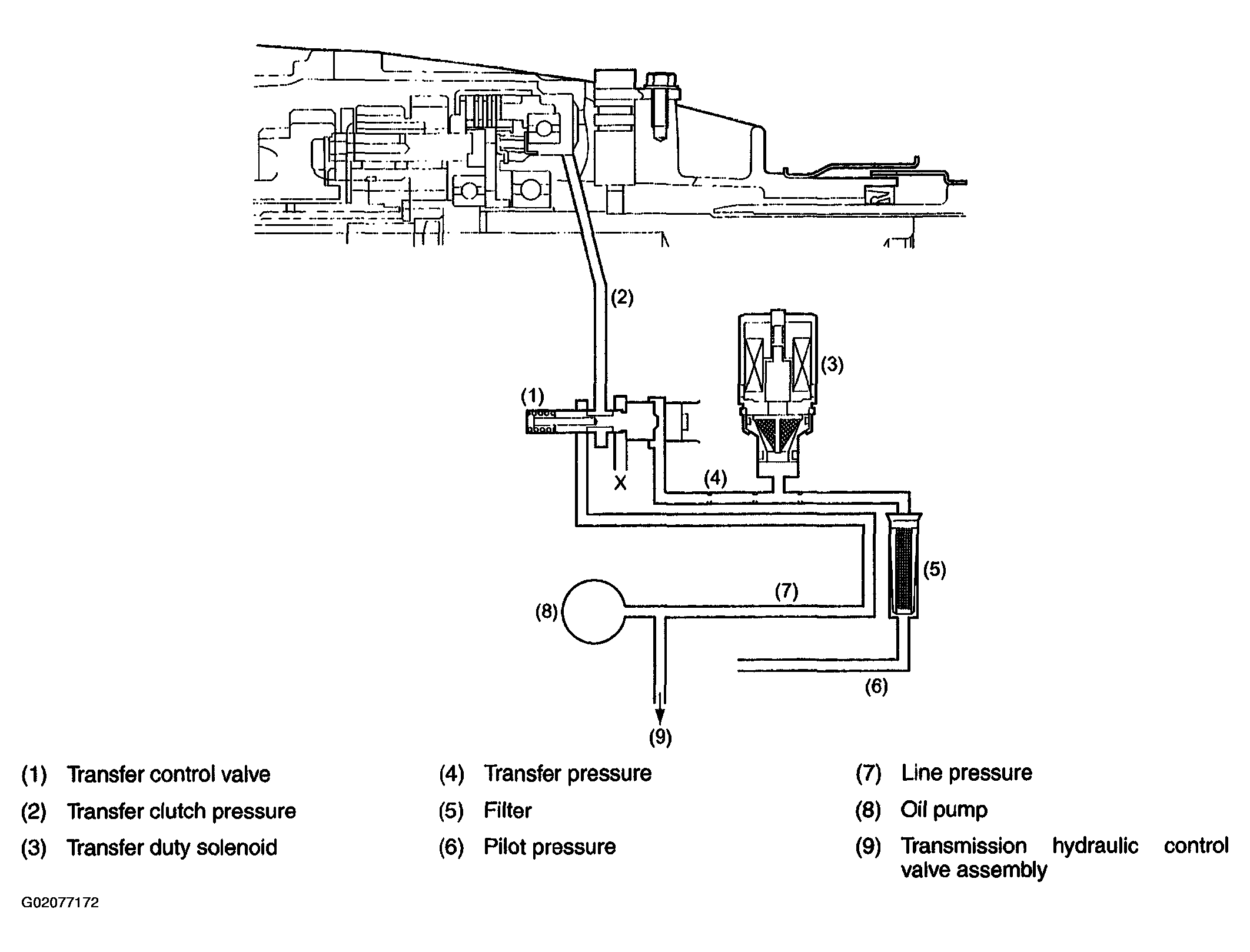

The differential action limiting control is based on the parameters that include the throttle angle, engine speed, vehicle speed, and speed ratio of front and rear wheels. The LSD clutch piston is operated by the fluid whose pressure is adjusted by the duty solenoid and the transfer control valve in the transfer case. According to the pressure applied to the piston, the torque distribution ratio changes from the ratio set for the center differential to the direct AWD ratio.
The speed of the front and rear wheels determine the basic signals for the differential action limiting control. The rear wheel speed is detected by sensor installed above the rear drive shaft and the front wheel speed is detected by the sensor on the parking gear above the reduction drive shaft gear.
