Variable Torque Distribution Center Differential

The front-rear torque distribution ratio is basically determined by the gear tooth ratio of center differential's compound planetary gears and varied by changing the degree of engagement of the hydraulically operated multi-plate clutch that connects the center differential output elements according to driving conditions and road surface conditions. The torque distribution ratio is calculated using the following equations which include torque distribution coefficients (determined by number of gear teeth), input torque to the center differential, and torque capacity of the multi-plate clutch as factors.

  1. When the front wheel speed is higher than the rear wheel speed:

    TR = 0.545 x Ti + Tc

    TF = 0.455 x Ti + Tc

    where

    TR : Rear wheel output torque

    Ti : Input torque to center differential

    Tc : Torque capacity of multi-plate clutch

    TF : Front wheel output torque

    0.545: Coefficient of rear wheel torque determined by number of gear teeth

    0.455: Coefficient of front wheel torque determined by number of gear teeth

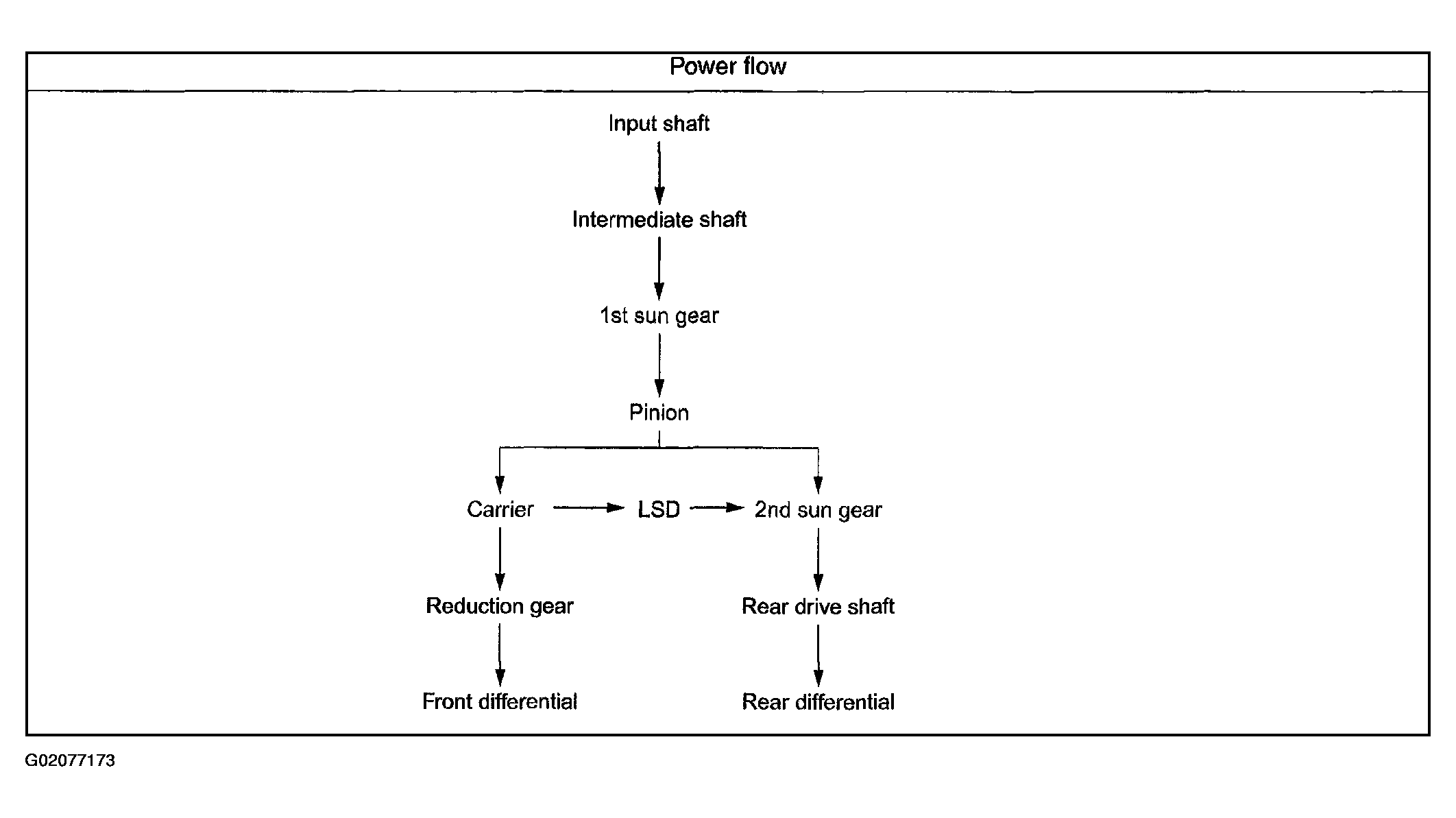

    Fig 1: Power Flow Chart - When Front Wheel Speed Is Higher Than Rear Wheel Speed
    G02077173Courtesy of SUBARU OF AMERICA, INC.

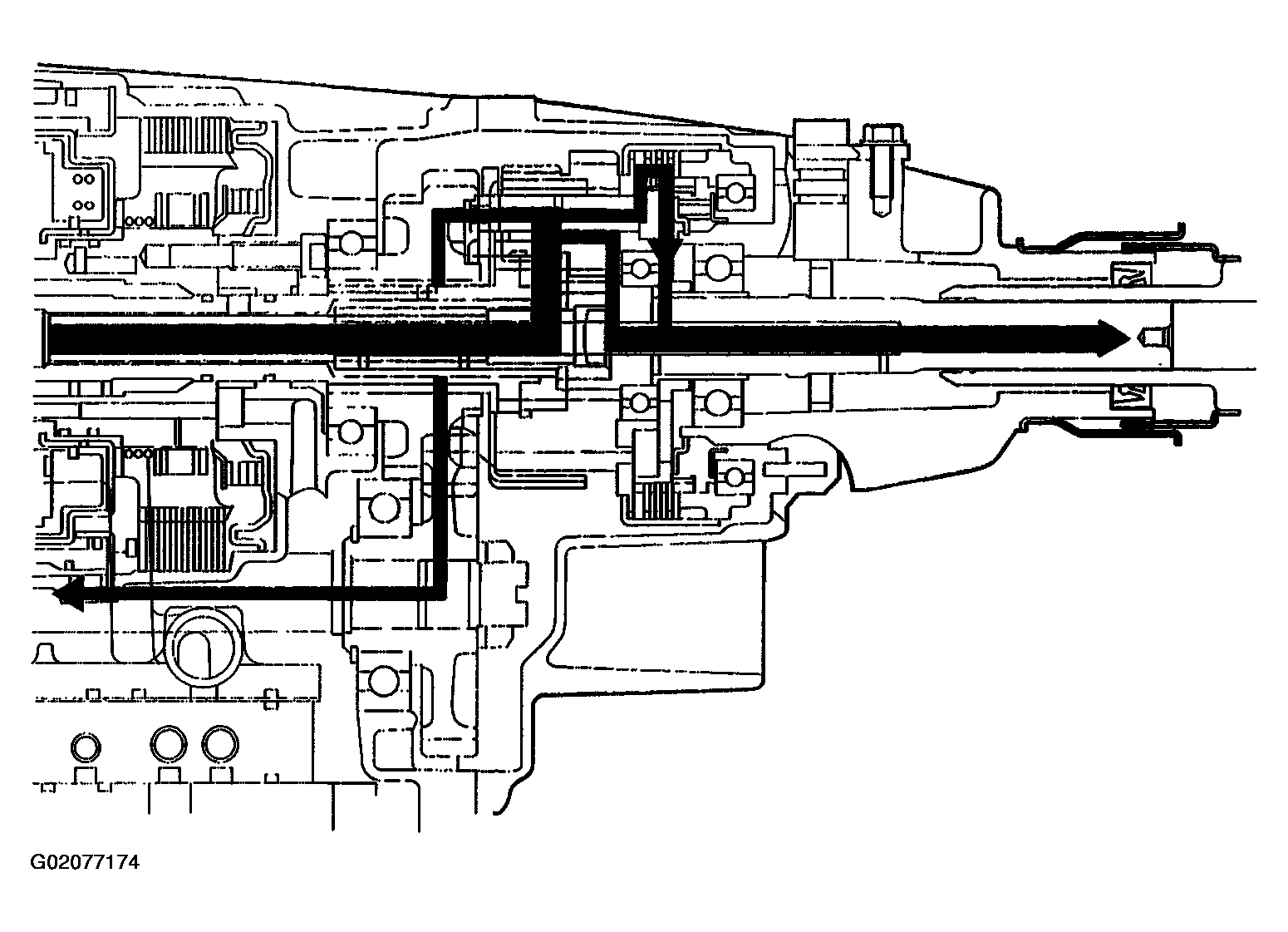

    Fig 2: Hydraulic Schematic Diagram - Power Flow Chart - When Front Wheel Speed Is Higher Than Rear Wheel Speed
    G02077174Courtesy of SUBARU OF AMERICA, INC.
  2. When the rear wheel speed is higher than the front wheel speed:

    TR = 0.545 x Ti - Tc

    TF = 0.455 x Ti - Tc

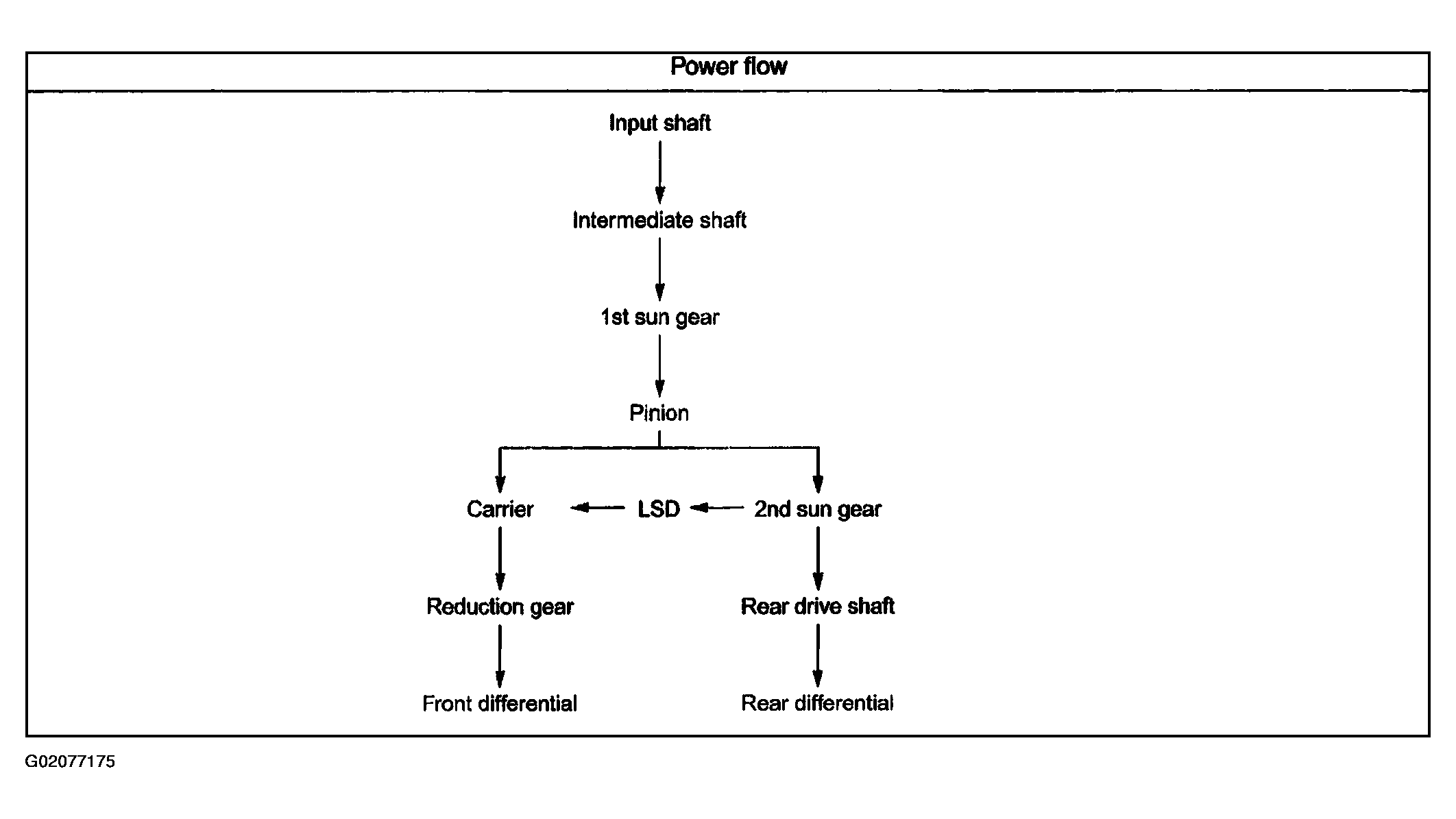

    Fig 3: Power Flow Chart - When Rear Wheel Speed Is Higher Than Front Wheel Speed
    G02077175Courtesy of SUBARU OF AMERICA, INC.

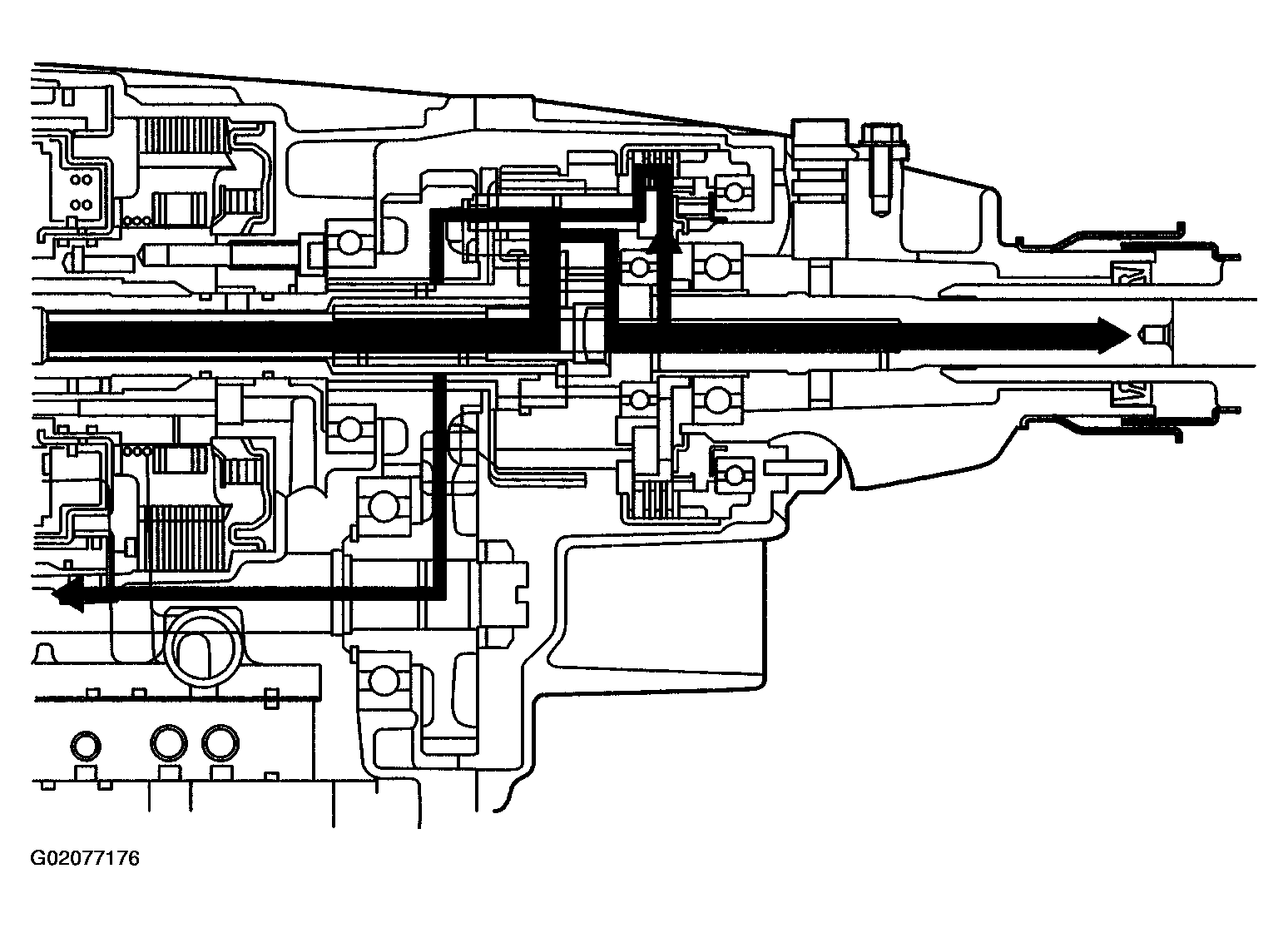

Fig 4: Hydraulic Schematic Diagram - When Rear Wheel Speed Is Higher Than Front Wheel Speed
G02077176Courtesy of SUBARU OF AMERICA, INC.

Calculation of front and rear wheel torques

If the frictional resistance resulting from meshing of the planetary gears and sliding of rotational components are ignored, the torques distributed to the front and rear wheels are expressed by the following equations:

TR = [(ZP1 x ZS2 )/(ZS1 x ZP2 )] x Ti

TF = [1 - (ZP1 x ZS2 )/(ZS1 x ZP2 )] x Ti

where

ZP1 : Number of teeth of 1st planetary gear

ZP2 : Number of teeth of 2nd planetary gear

ZS1 : Number of teeth of 1st sun gear

ZS2 : Number of teeth of 2nd sun gear

Ti : Input torque

If the number of teeth in each component is the same as that assumed in the equations on the previous page, the following ratios are the calculation results of the equations shown above.

TR = 0.545 x Ti

TF = 0.455 x Ti

As a result, the front-rear torque distribution ratio of the compound planetary gear set without an adjustment by the multi-plate clutch is 45.5: 54.5.
