Input Signals

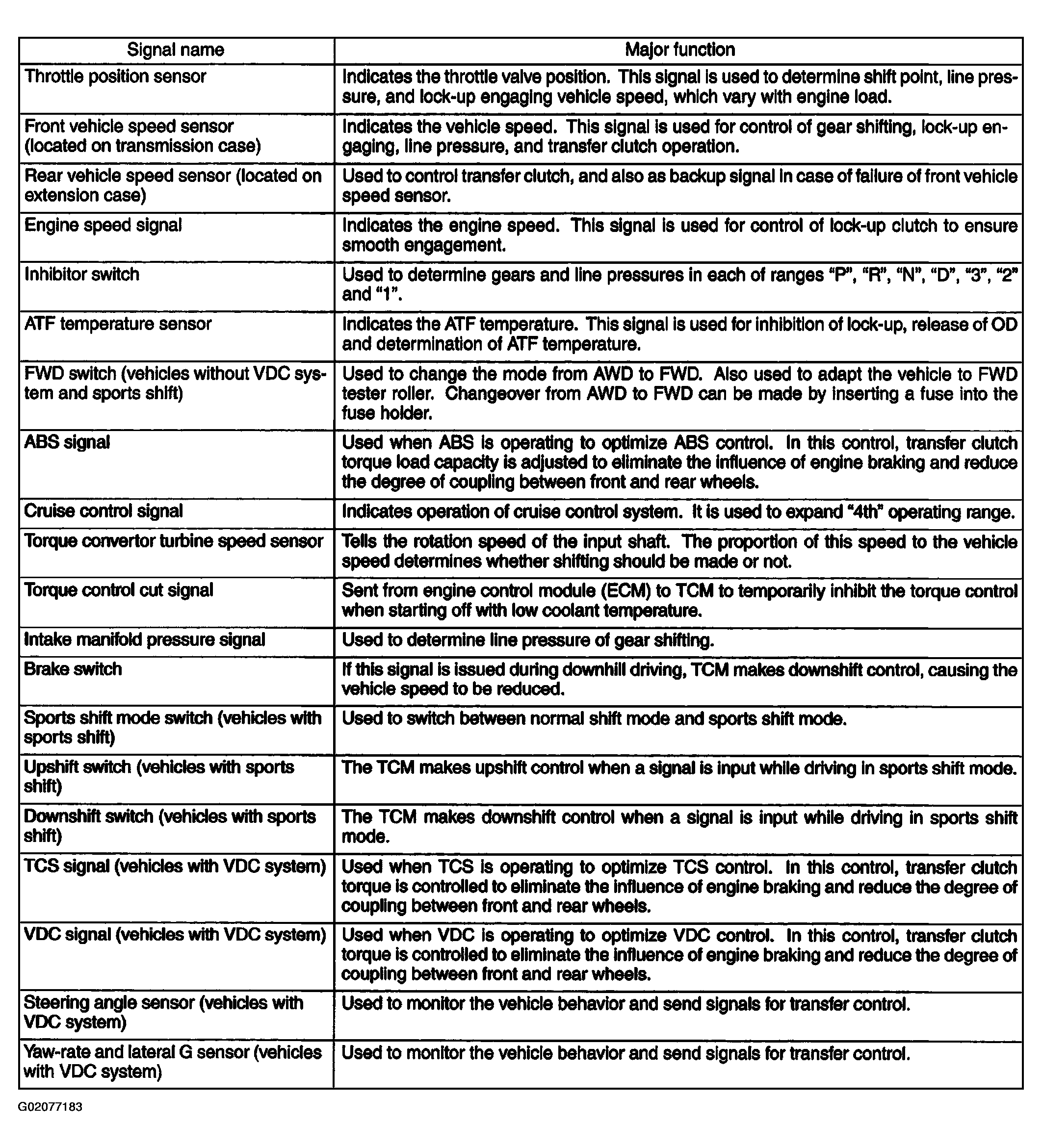

Fig 1: Electrohydraulic Control System - Input Signals Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
