AWD Transfer Clutch Control (MPT Models): Notes

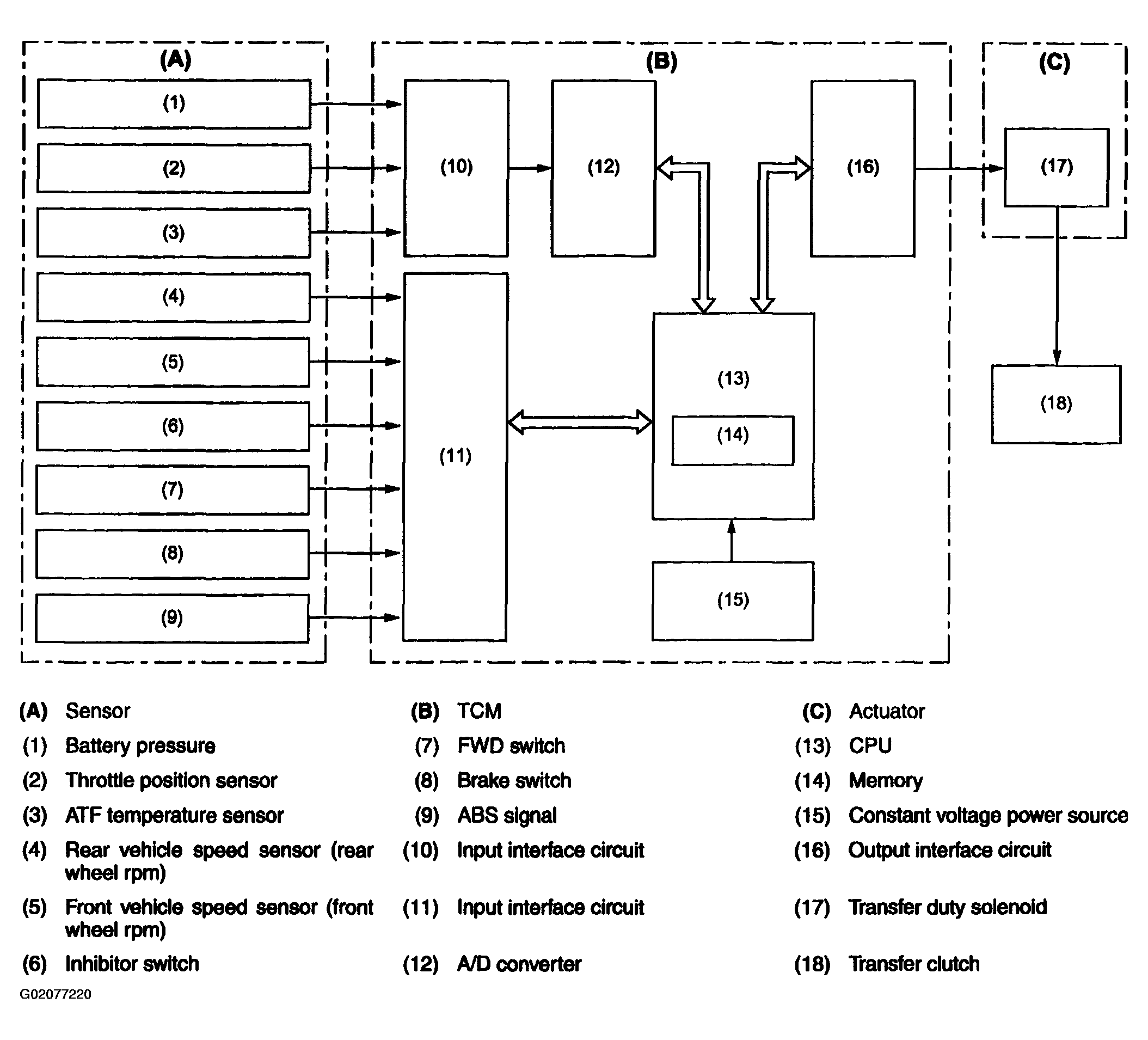

Fig 1: Identifying AWD Transfer Clutch Control (MPT Models)
G02077220Courtesy of SUBARU OF AMERICA, INC.
