MPT Models

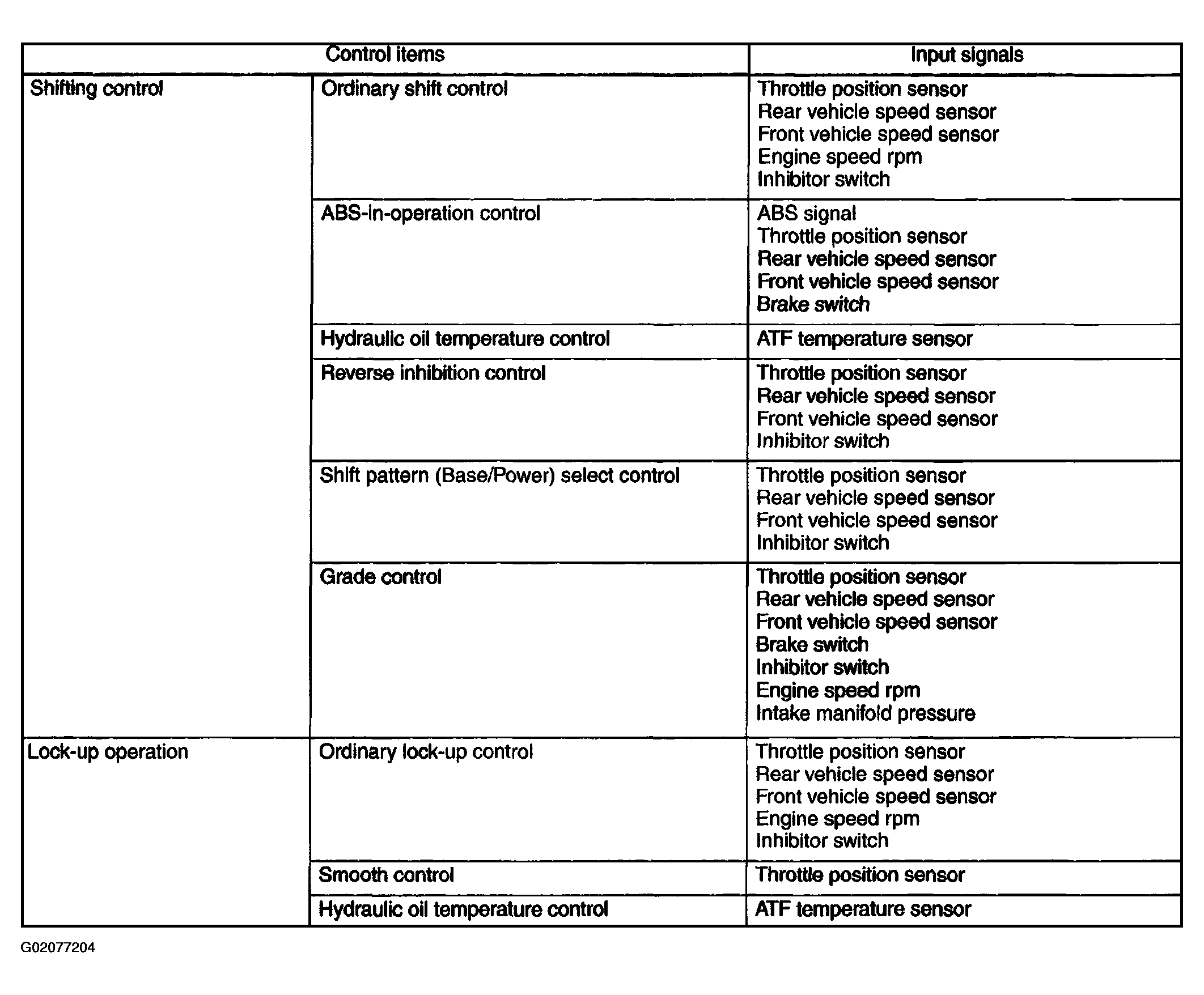

Fig 1: Control Item Input Signals Chart (MPT Models) (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

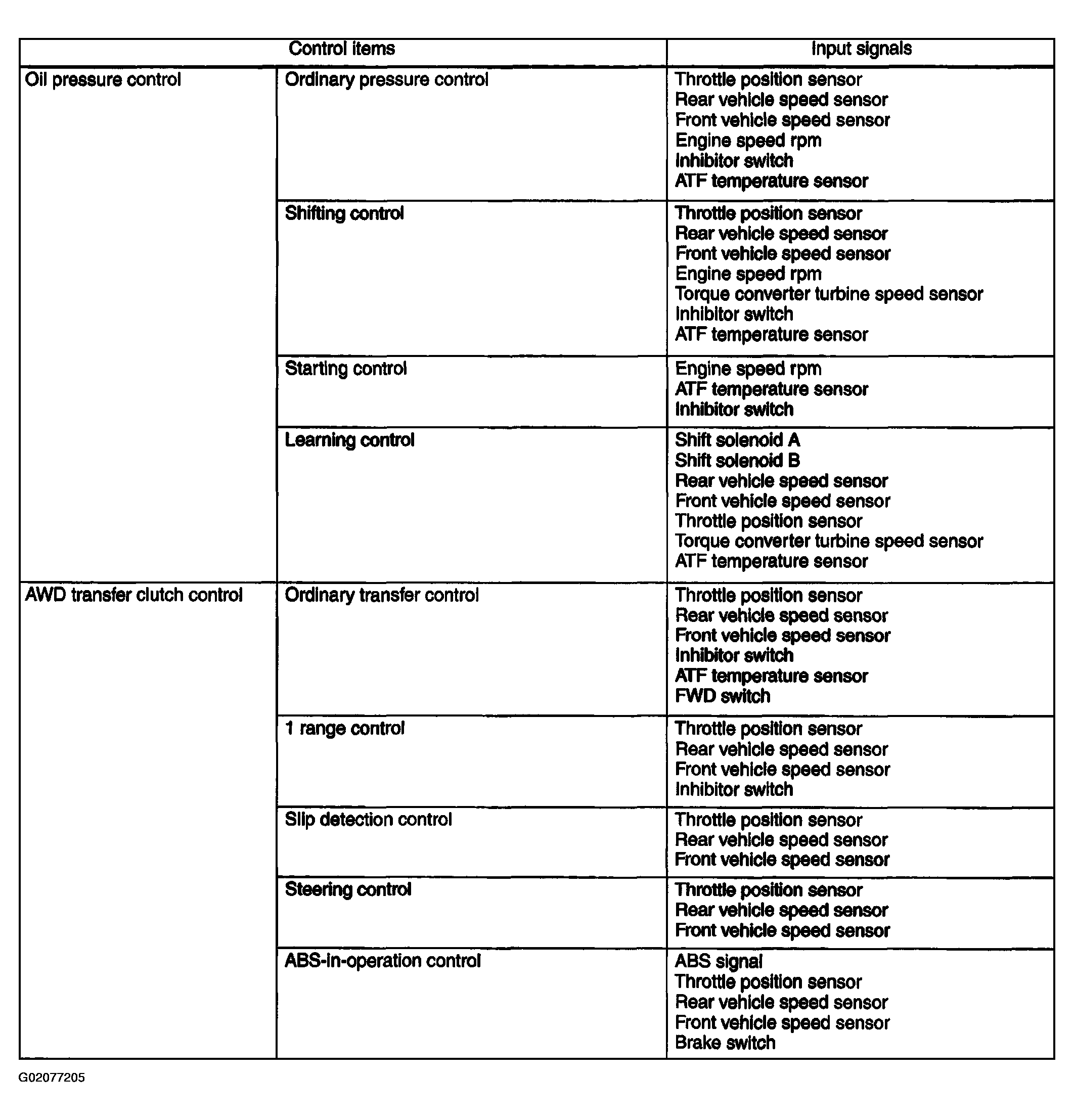

Fig 2: Control Item Input Signals Chart (MPT Models) (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
