VTD Models

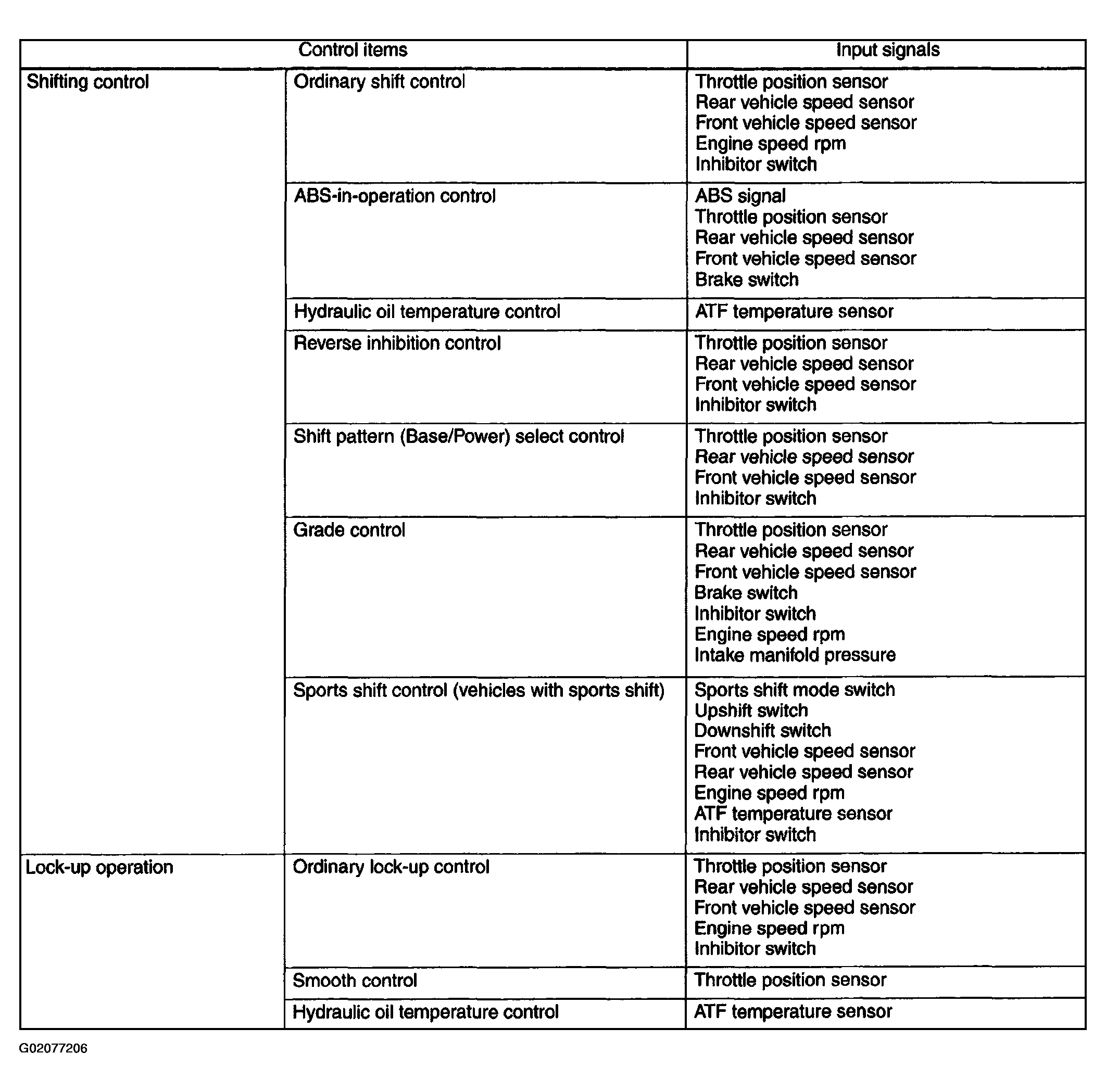

Fig 1: Control Item Input Signals Chart (VTD Models) (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

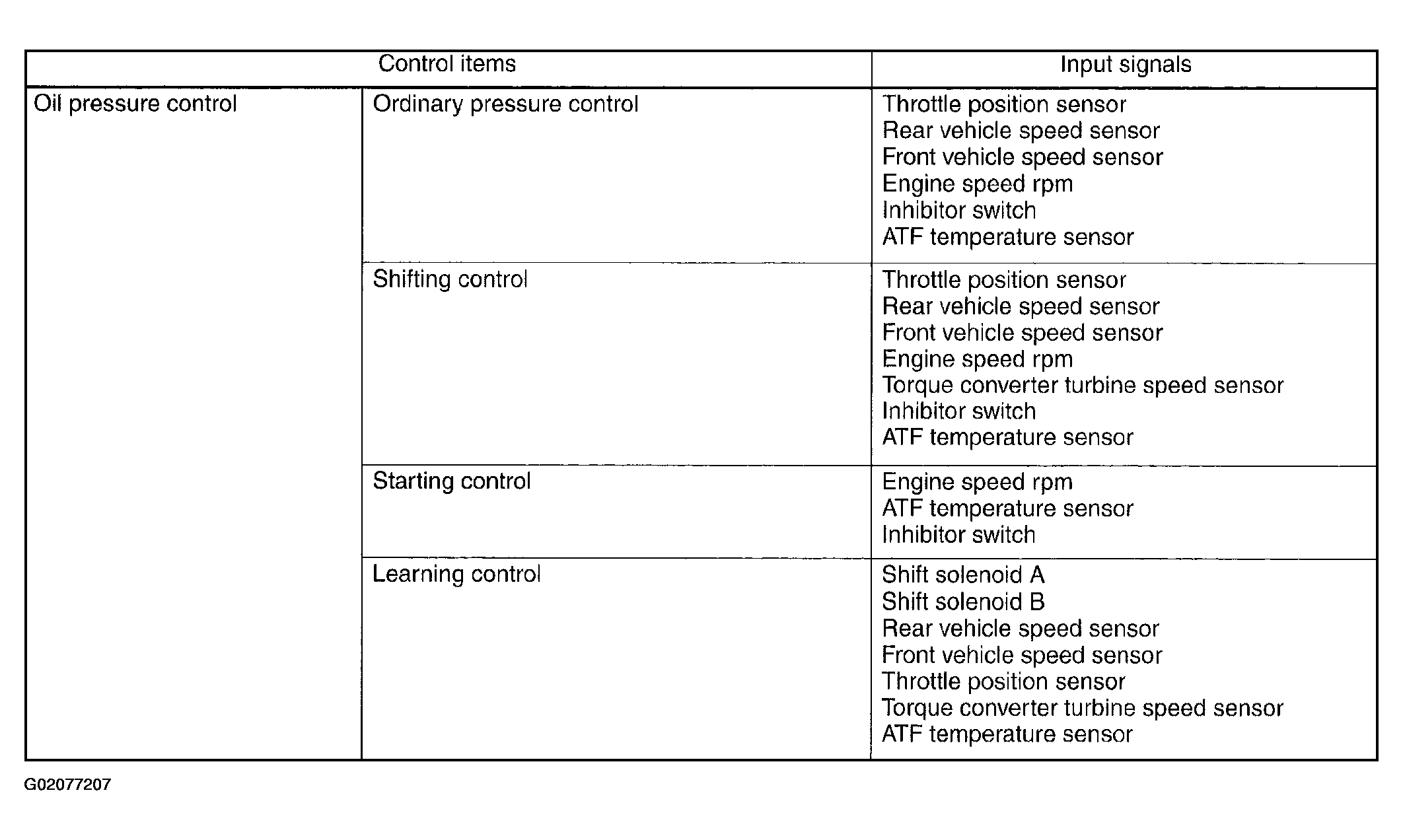

Fig 2: Control Item Input Signals Chart (VTD Models) (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

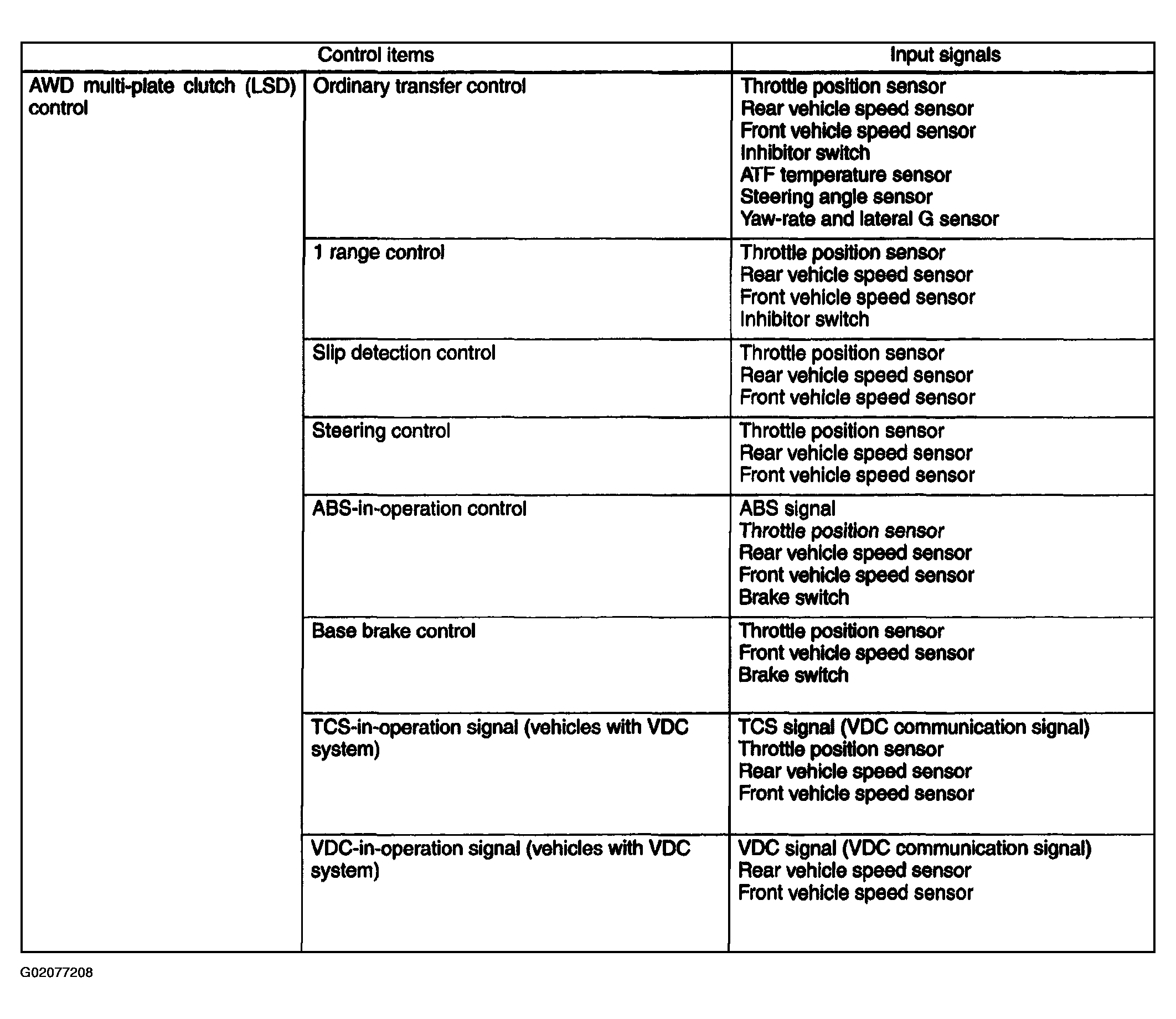

Fig 3: Control Item Input Signals Chart (VTD Models) (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
