Electrical Specification

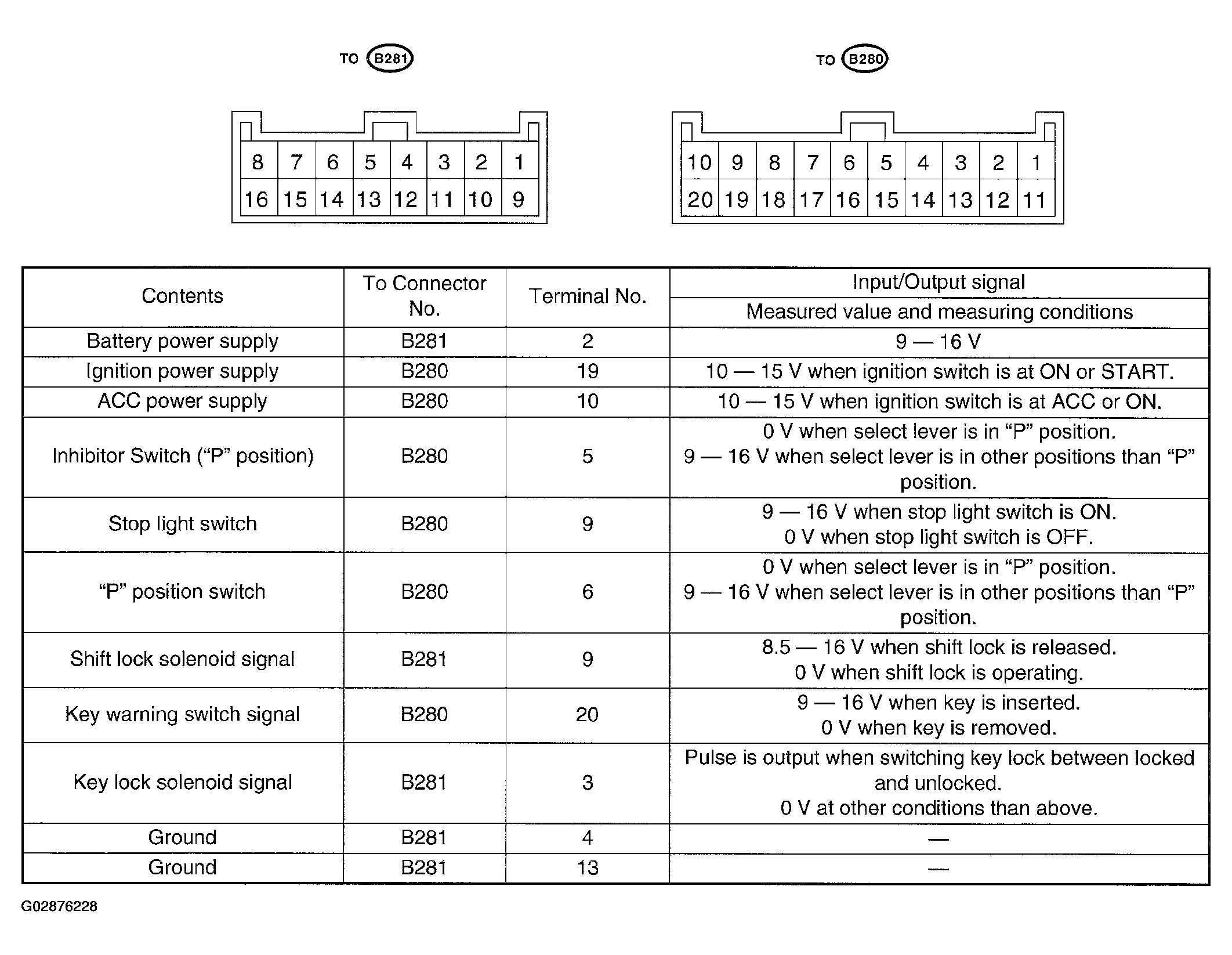

Fig 1: AT Shift Lock System Electrical Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
