MT Gear Shift Lever: Inspection

Check each part (bushing, cushion rubber, spacer, boot, stay and rod, etc.) for deformation, damage and wear. Repair or replace any defective part. Determine defective parts by comparing with new parts.

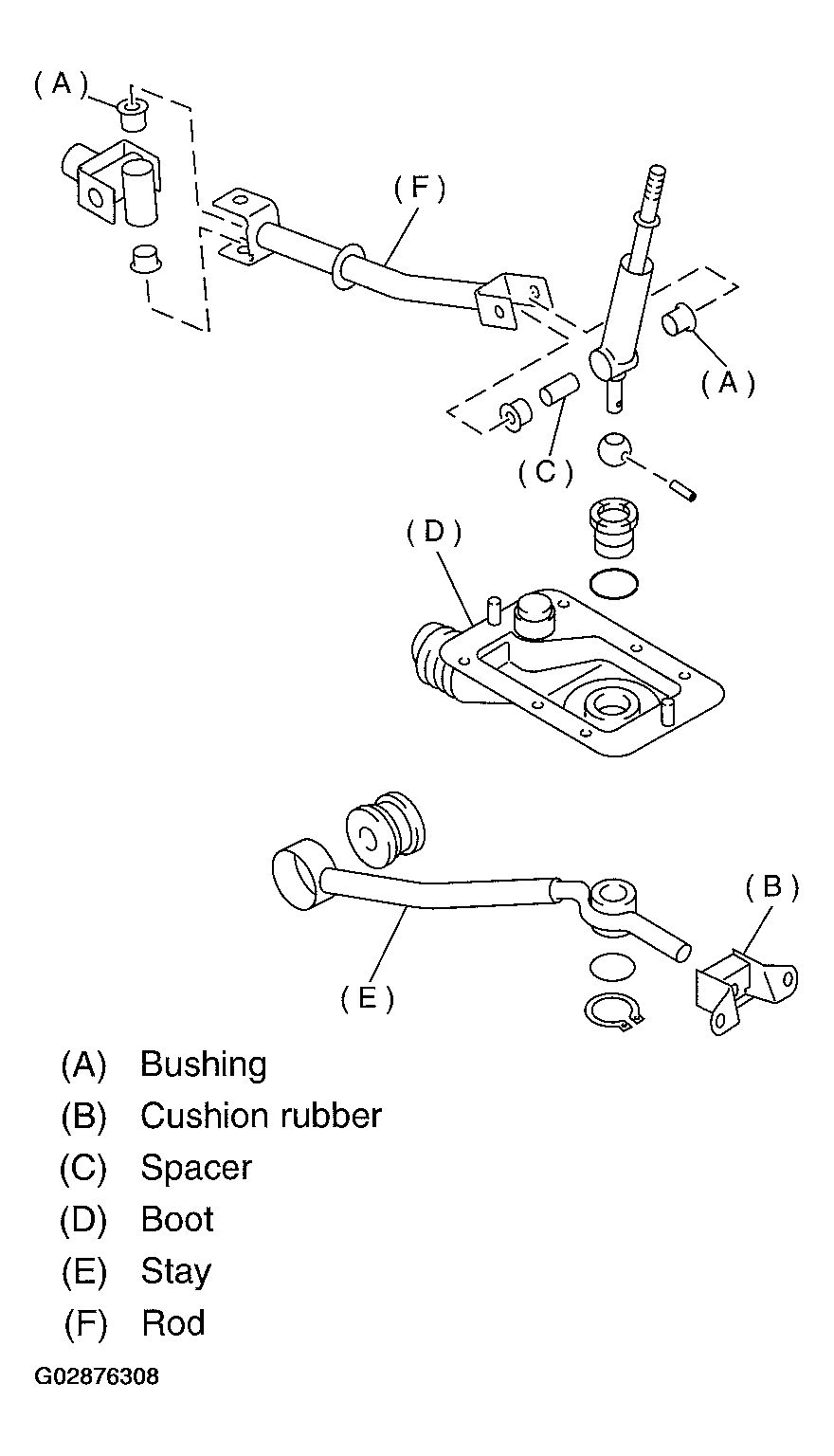

Fig 1: Inspecting MT Gear Shift Lever Parts
Courtesy of SUBARU OF AMERICA, INC.
Check the swing torque of the rod in relation of gear shift lever.
If the torque exceeds specification, replace the bushing or retighten nuts.
1. Swing torque: 3.7 N (0.38 kgf, 0.84 lb) or less
Fig 2: Checking Swing Torque
Courtesy of SUBARU OF AMERICA, INC.
