Sport Shift Model

Remove the packing.

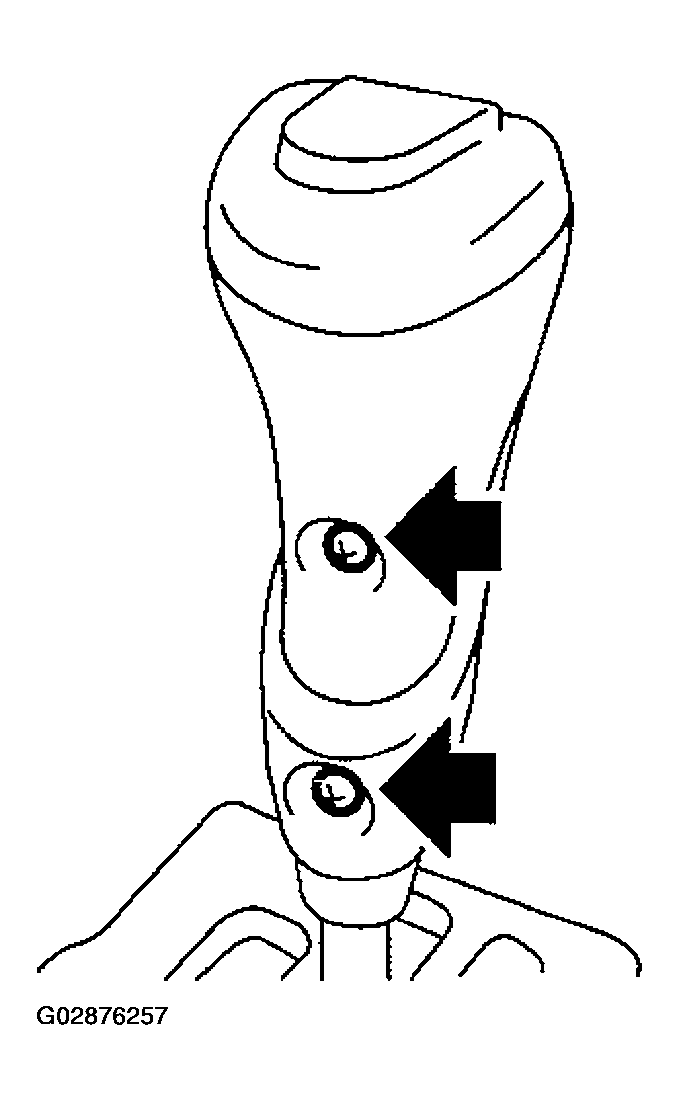

Remove the grip.

Fig 1: Removing Grip
Courtesy of SUBARU OF AMERICA, INC.

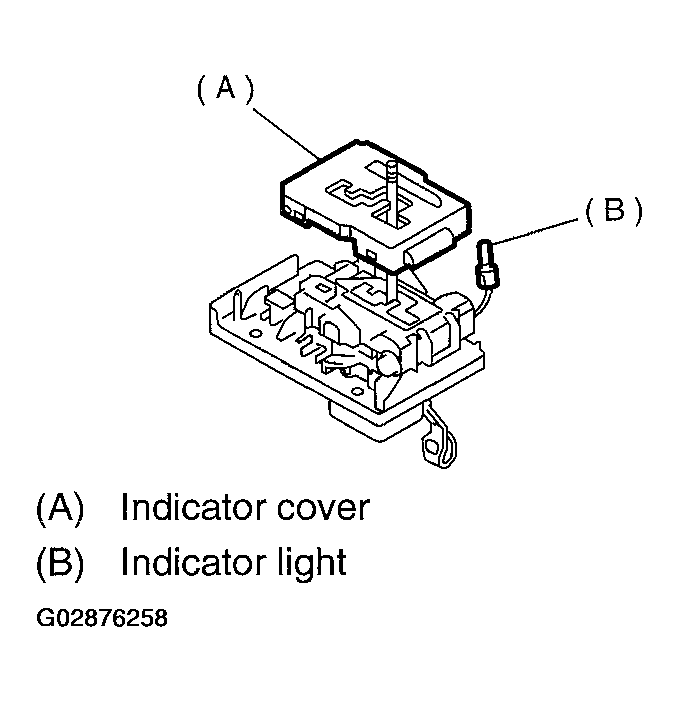

Remove the indicator light, and then remove the indicator cover.
NOTE: Be careful not to break the indicator light during removal.

Fig 2: Removing Indicator Light & Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the slider.

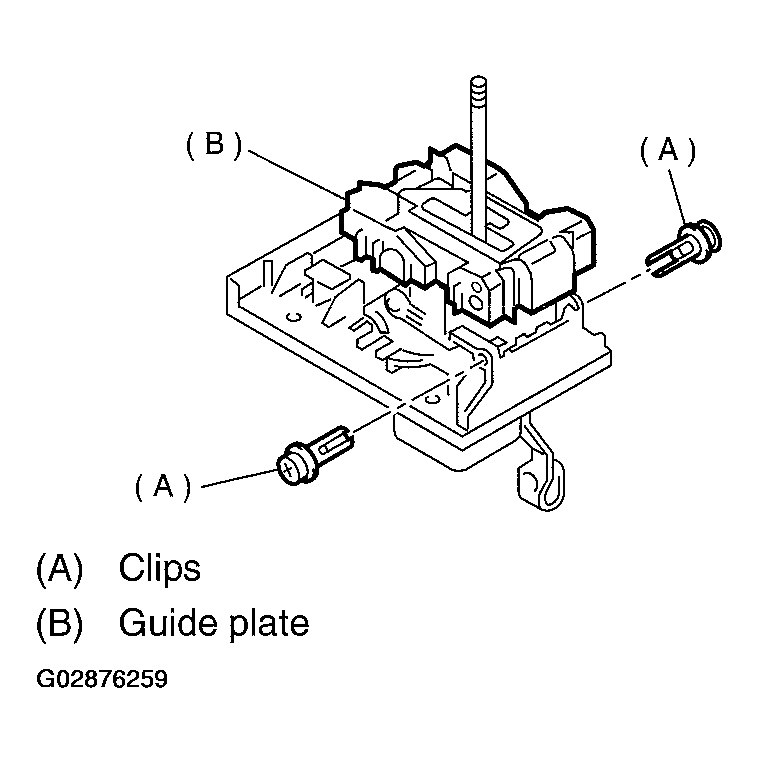

Remove the clips, and then remove the guide plate.

Fig 3: Removing Clips & Guide Plate
Courtesy of SUBARU OF AMERICA, INC.

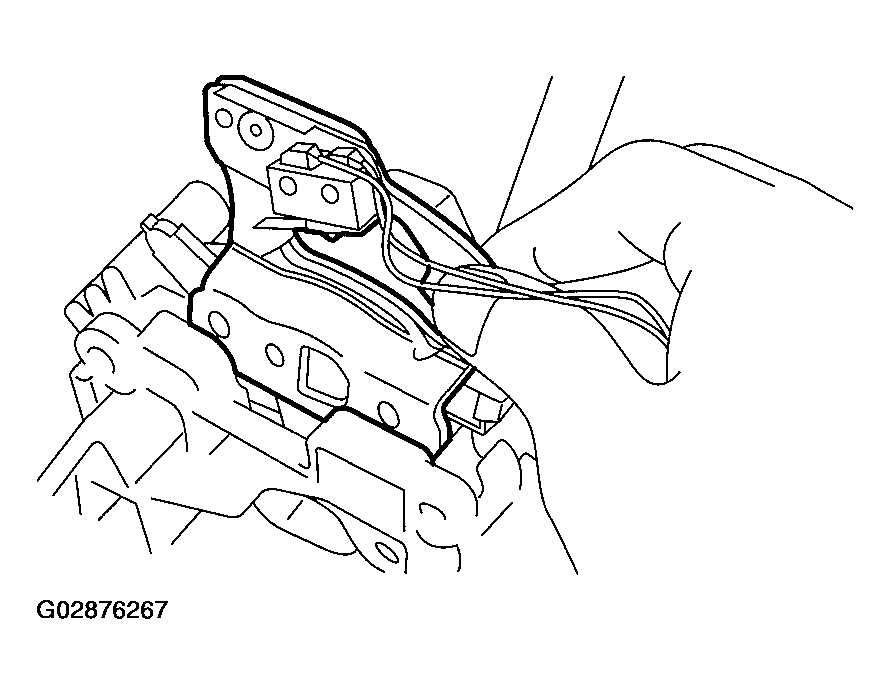

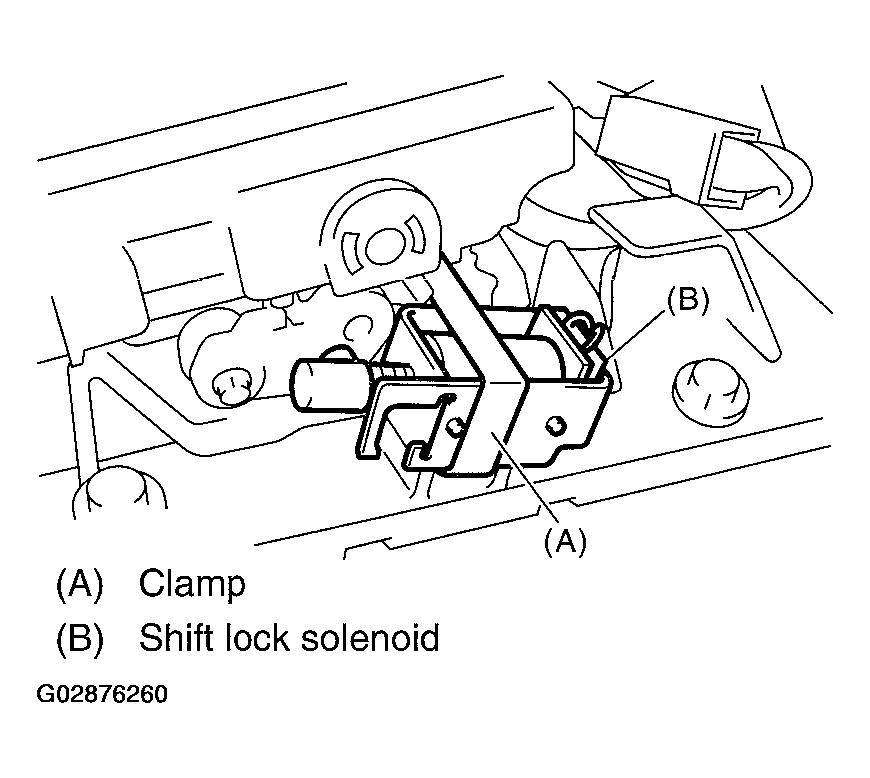

Remove the clamp, shift lock solenoid and cushion.

Fig 4: Removing Clamp, Shift Lock Solenoid & Cushion
Courtesy of SUBARU OF AMERICA, INC.

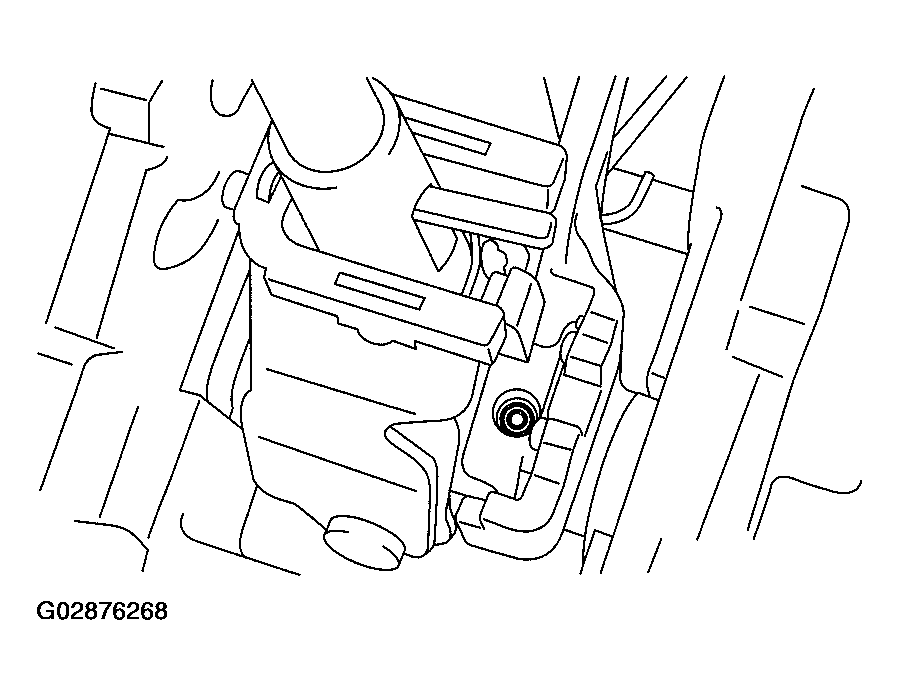

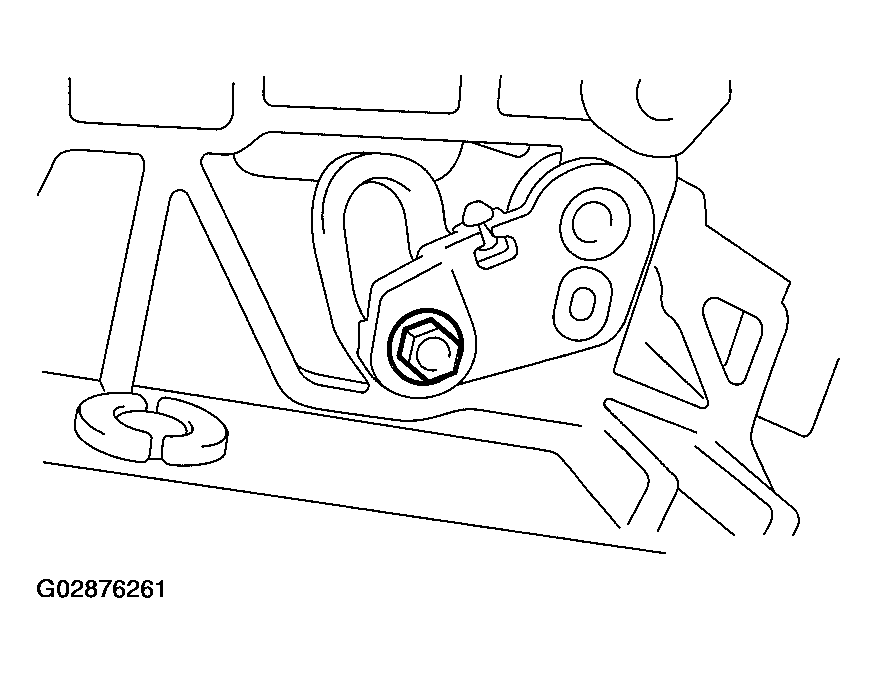

Remove the bolt.

Fig 5: Removing Bolt
Courtesy of SUBARU OF AMERICA, INC.

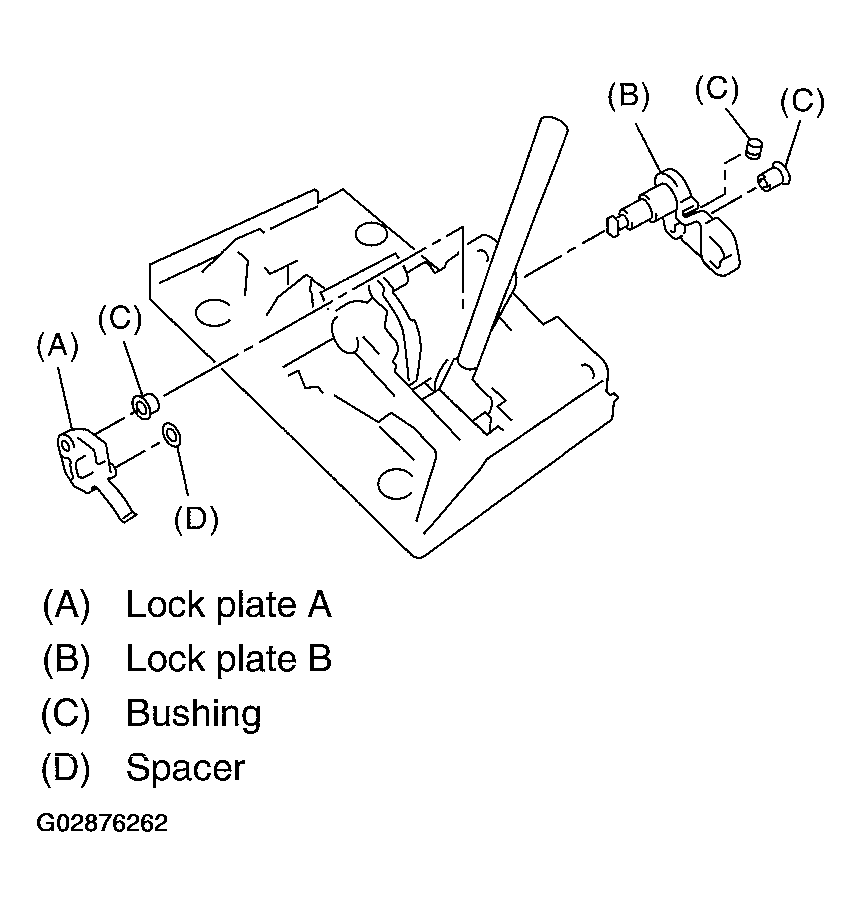

Remove the lock plate A, B, bushing and spacer.

Fig 6: Removing Lock Plate A, B, Bushing & Spacer
Courtesy of SUBARU OF AMERICA, INC.

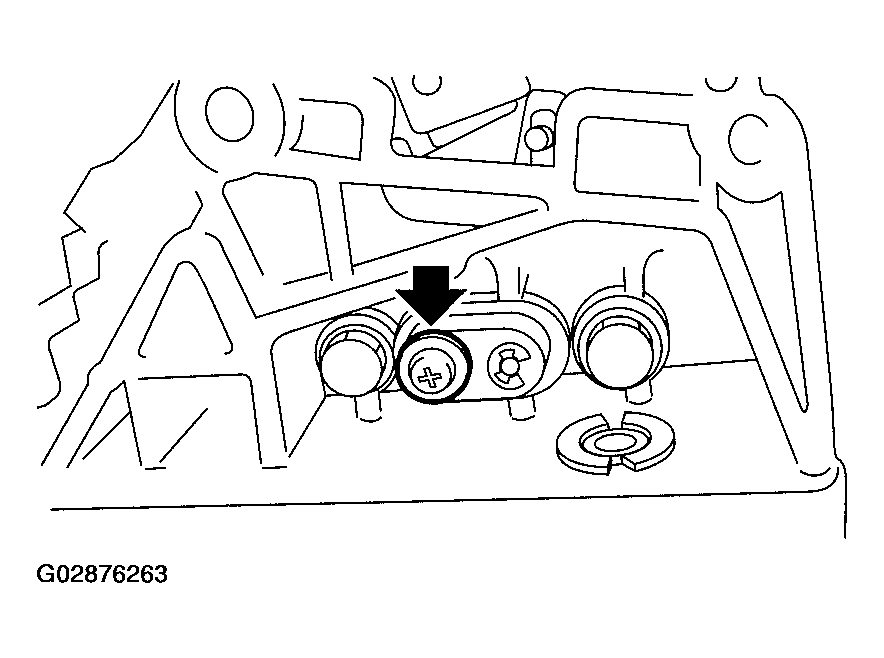

Remove the screw.

Fig 7: Removing Screw
Courtesy of SUBARU OF AMERICA, INC.

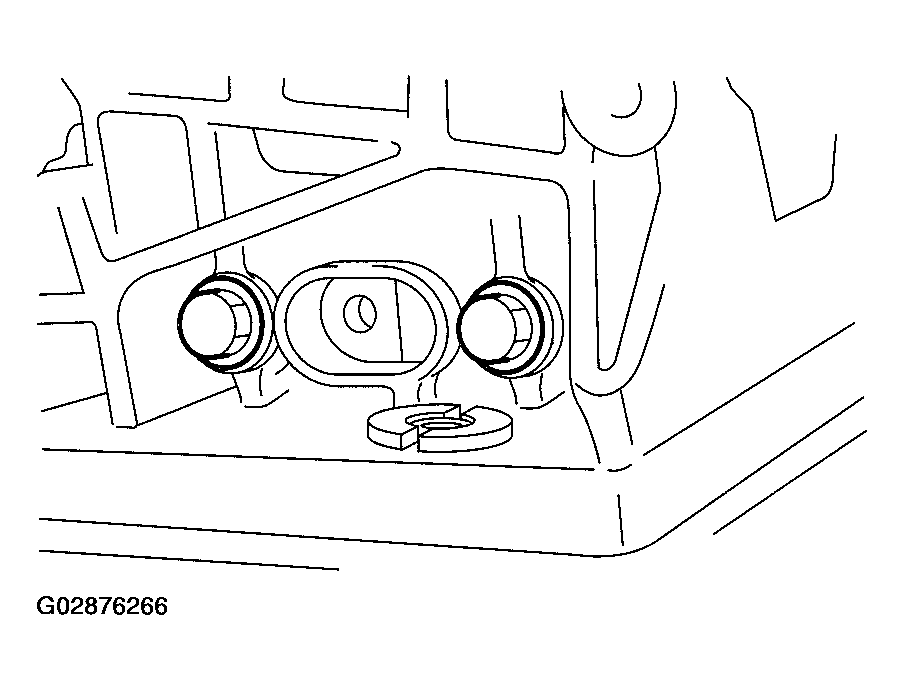

Remove the bushing.

Fig 8: Removing Bushing
Courtesy of SUBARU OF AMERICA, INC.

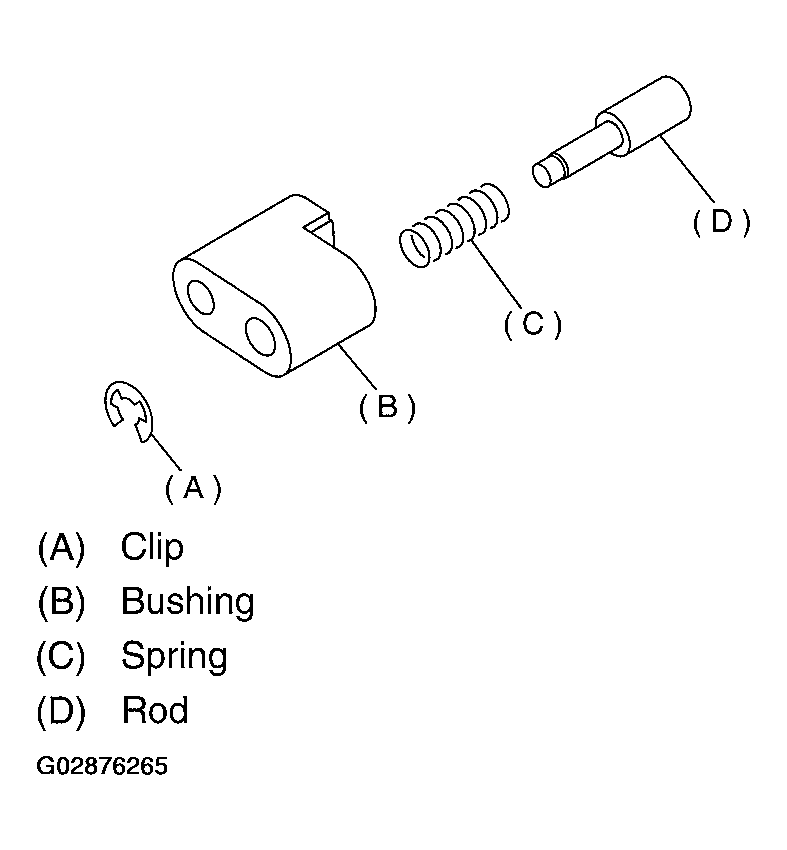

Remove the clip, and then remove the rod and the spring.

Fig 9: Removing Clip, Rod & Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt.

Fig 10: Removing Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the bracket guide COMPL.

Fig 11: Removing Bracket Guide COMPL
Courtesy of SUBARU OF AMERICA, INC.
Remove the grommet, and then extract spring pin from the top.

Fig 12: Removing Grommet
Courtesy of SUBARU OF AMERICA, INC.

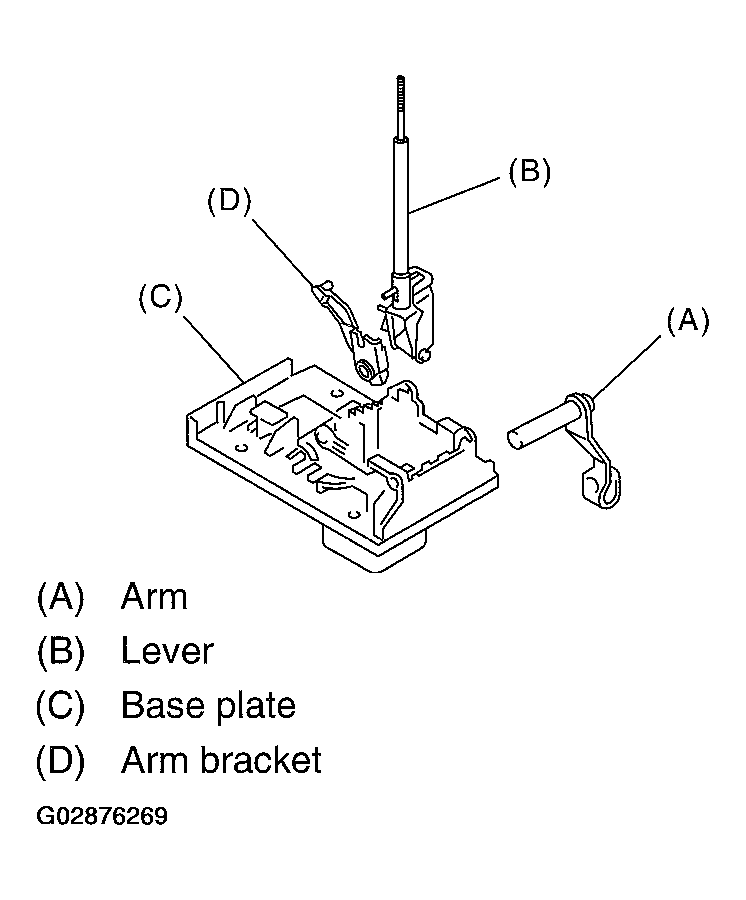

Remove the arm and then take away the lever and arm bracket from plate.

Fig 13: Removing Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring, and then remove the detent arm.
