EGR Valve: Removal

  1. Disconnect battery ground cable.

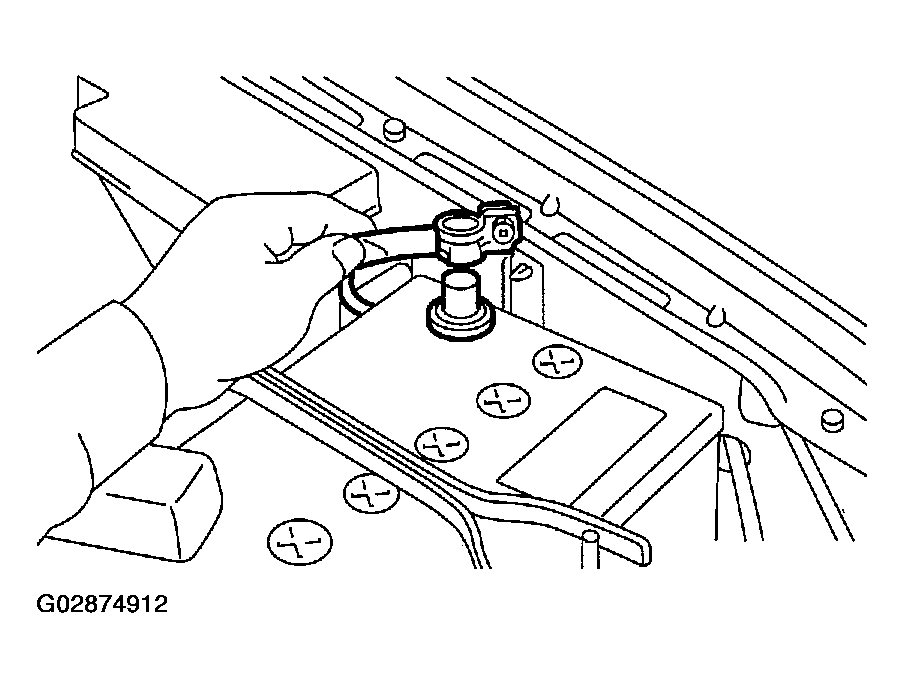

    Fig 1: Disconnecting Battery Ground Cable
    G02874912Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from EGR valve.

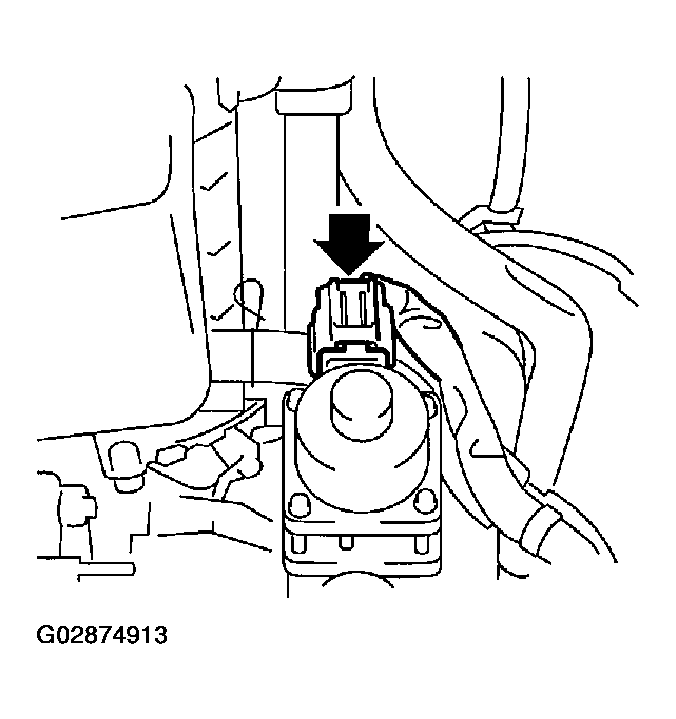

    Fig 2: Disconnecting Connector From EGR Valve
    G02874913Courtesy of SUBARU OF AMERICA, INC.
  3. Remove EGR valve from intake manifold.

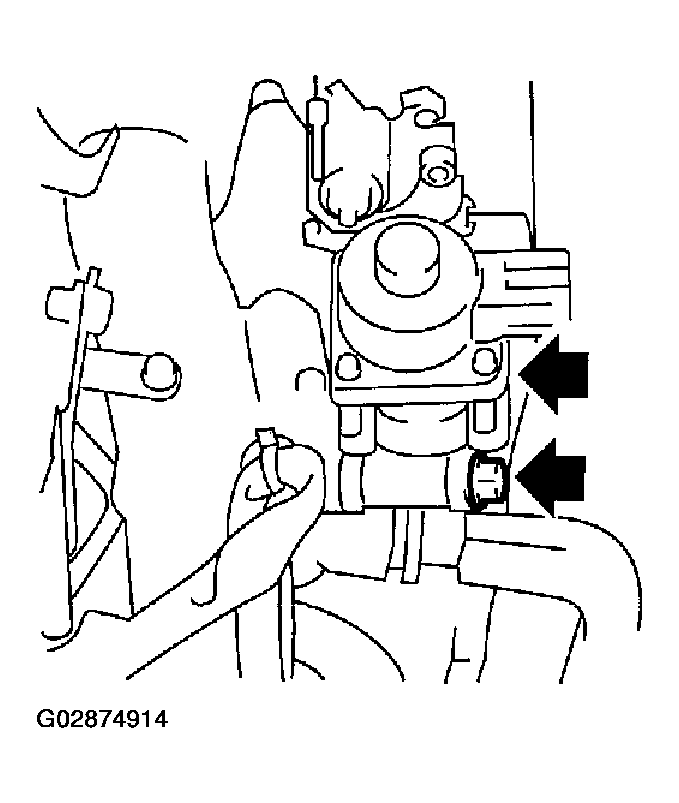

    Fig 3: Removing EGR Valve From Intake Manifold
    G02874914Courtesy of SUBARU OF AMERICA, INC.
