Front Oxygen (A/F) Sensor: Installation

Before installing front oxygen (A/F) sensor, apply anti-seize compound only to threaded portion of front oxygen (A/F) sensor to make the next removal easier.
1. Anti-seize compound: SS-30 by JET LUBE
CAUTION: Never apply anti-seize compound to protector of front oxygen (A/F) sensor.

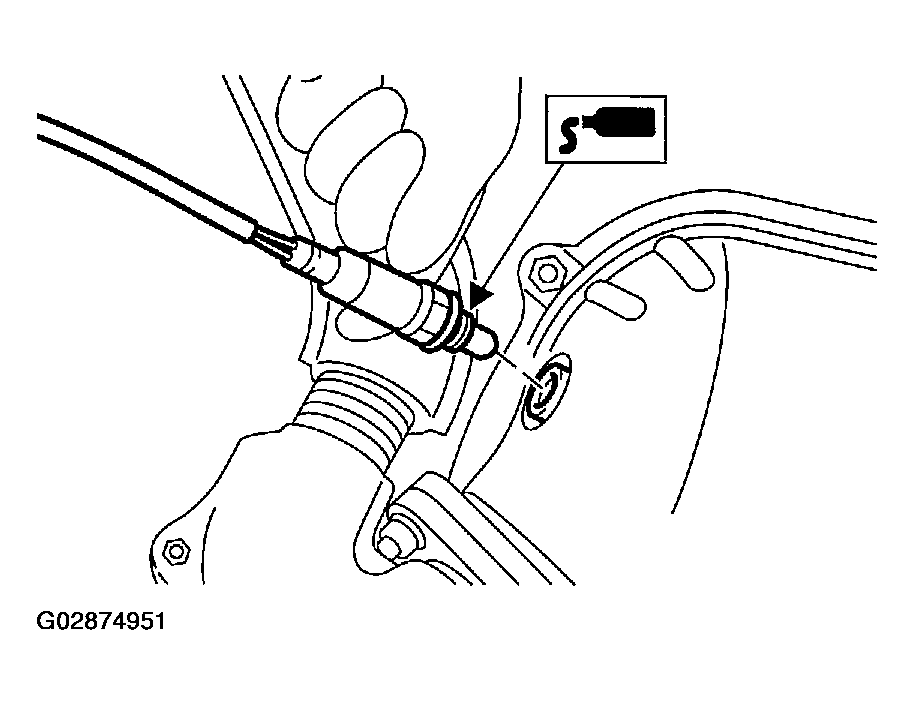

Fig 1: Applying Anti-Seize Compound
Courtesy of SUBARU OF AMERICA, INC.
Install front oxygen (A/F) sensor.
1. Tightening torque: 21 N.m (2.1 kgf-m, 15.2 ft-lb)

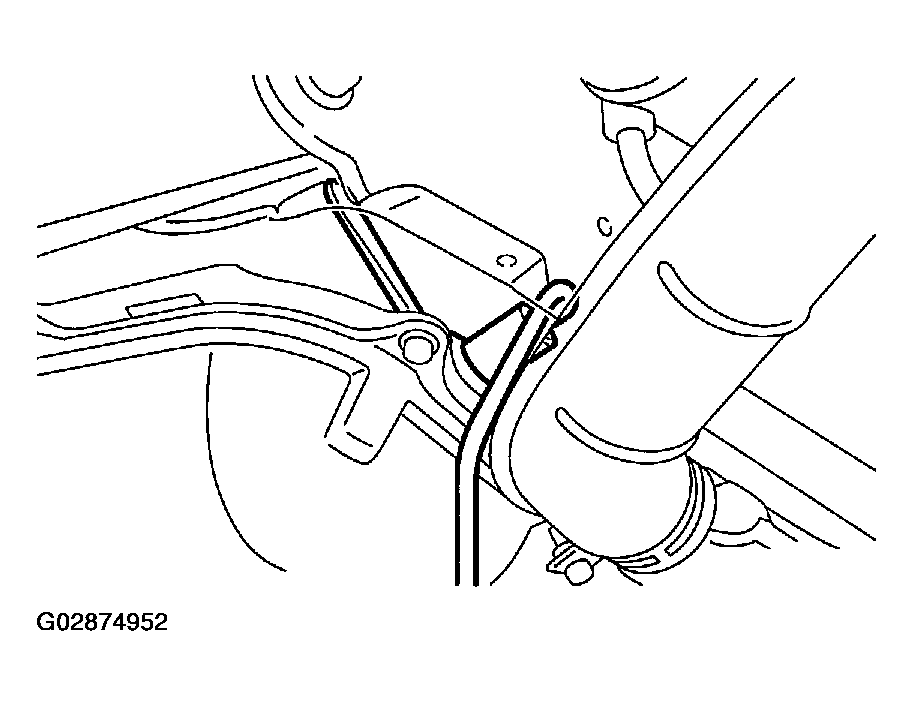

Fig 2: Installing Front Oxygen (A/F) Sensor
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect connector of front oxygen (A/F) sensor.

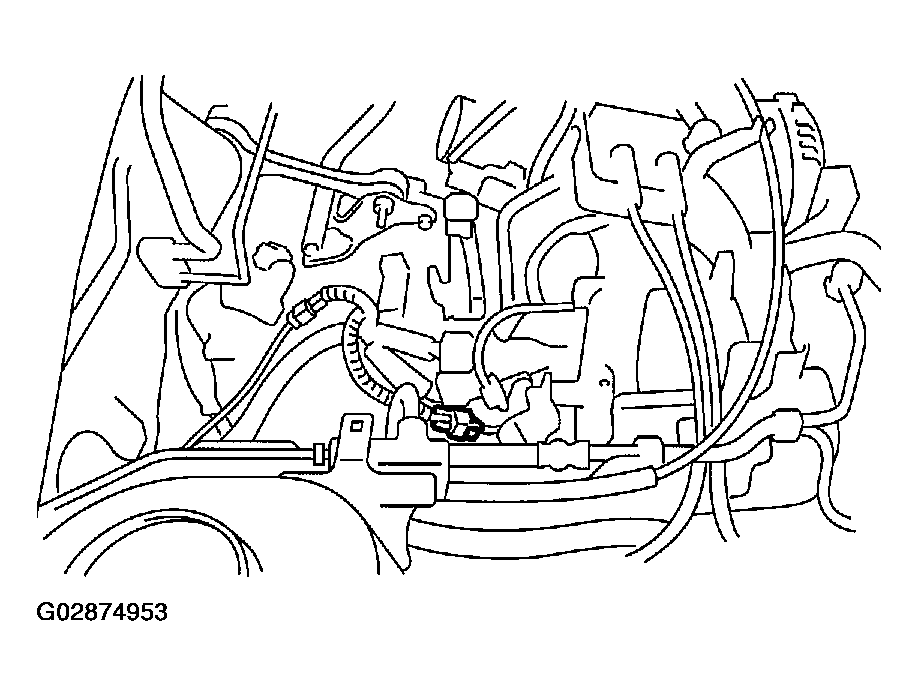

Fig 3: Connecting Connector Of Front Oxygen (A/F) Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect battery ground cable.

Fig 4: Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
