Component Locations

NOTE: For component locations, refer to appropriate illustration. See Fig 1 , Fig 2 , Fig 3 , Fig 4 and Fig 5 .

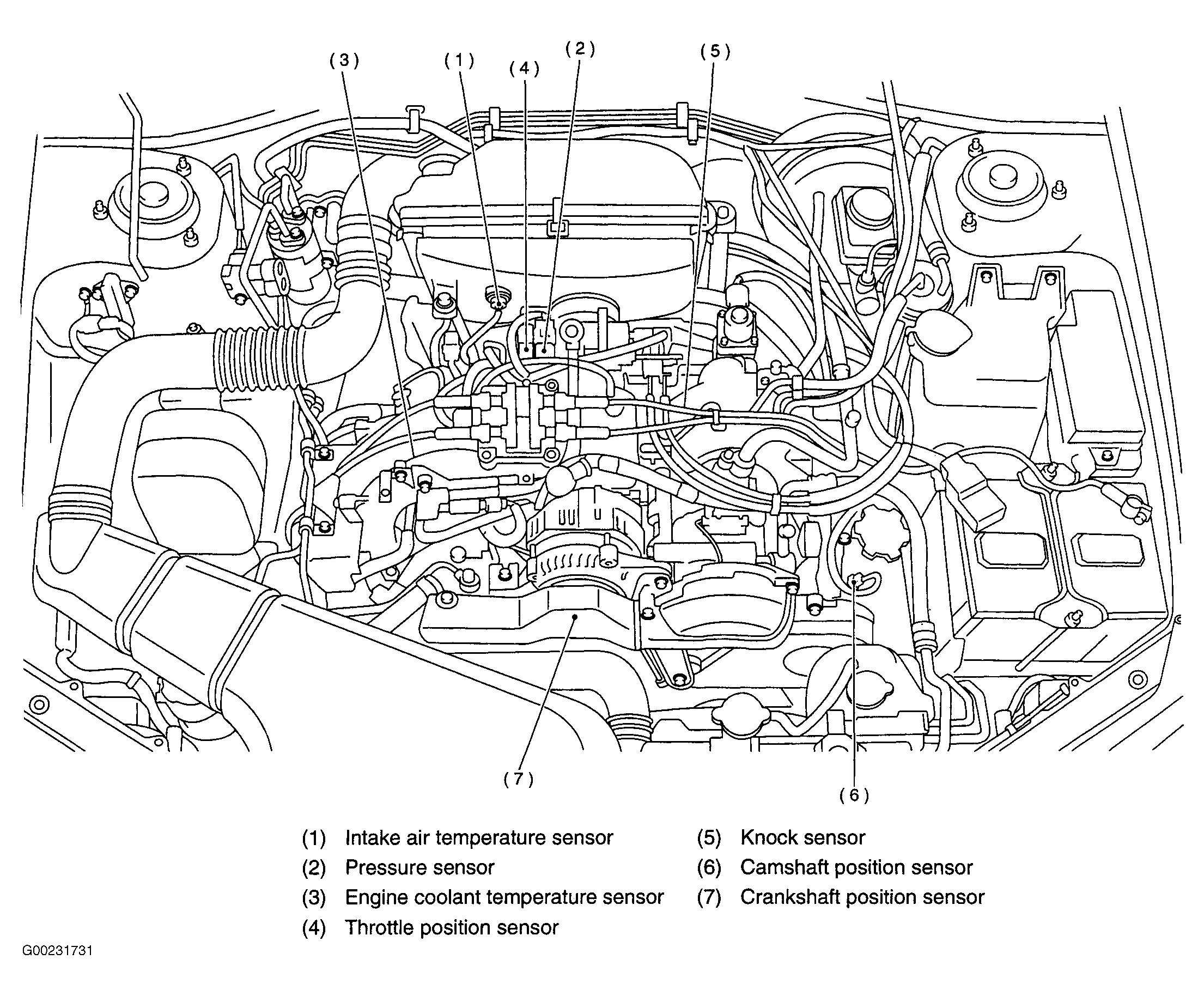

Fig 1: Component Locations (Baja, Legacy & Outback 2.5L)

Courtesy of SUBARU OF AMERICA, INC.

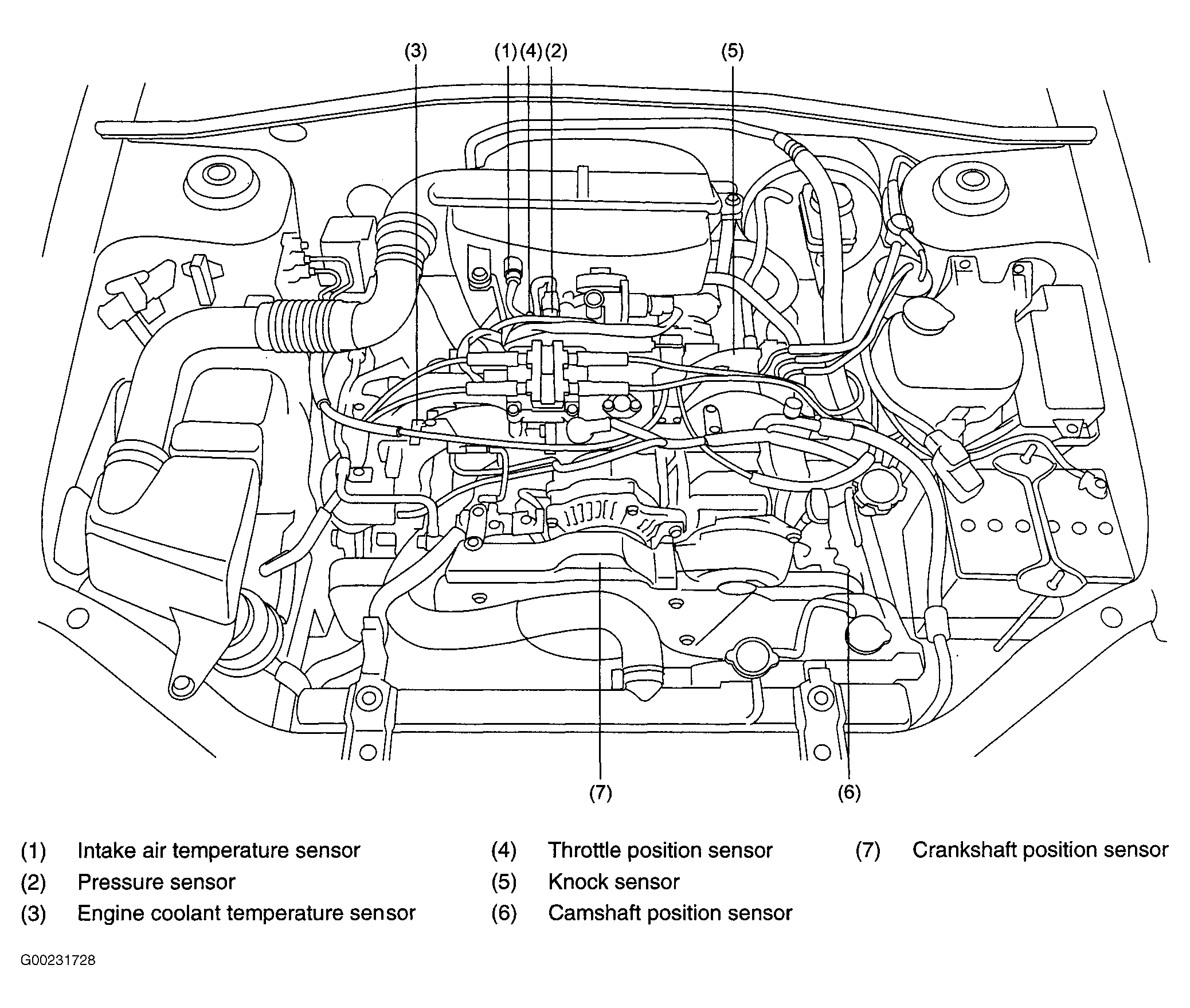

Fig 2: Component Locations (Forester 2.5L)

Courtesy of SUBARU OF AMERICA, INC.

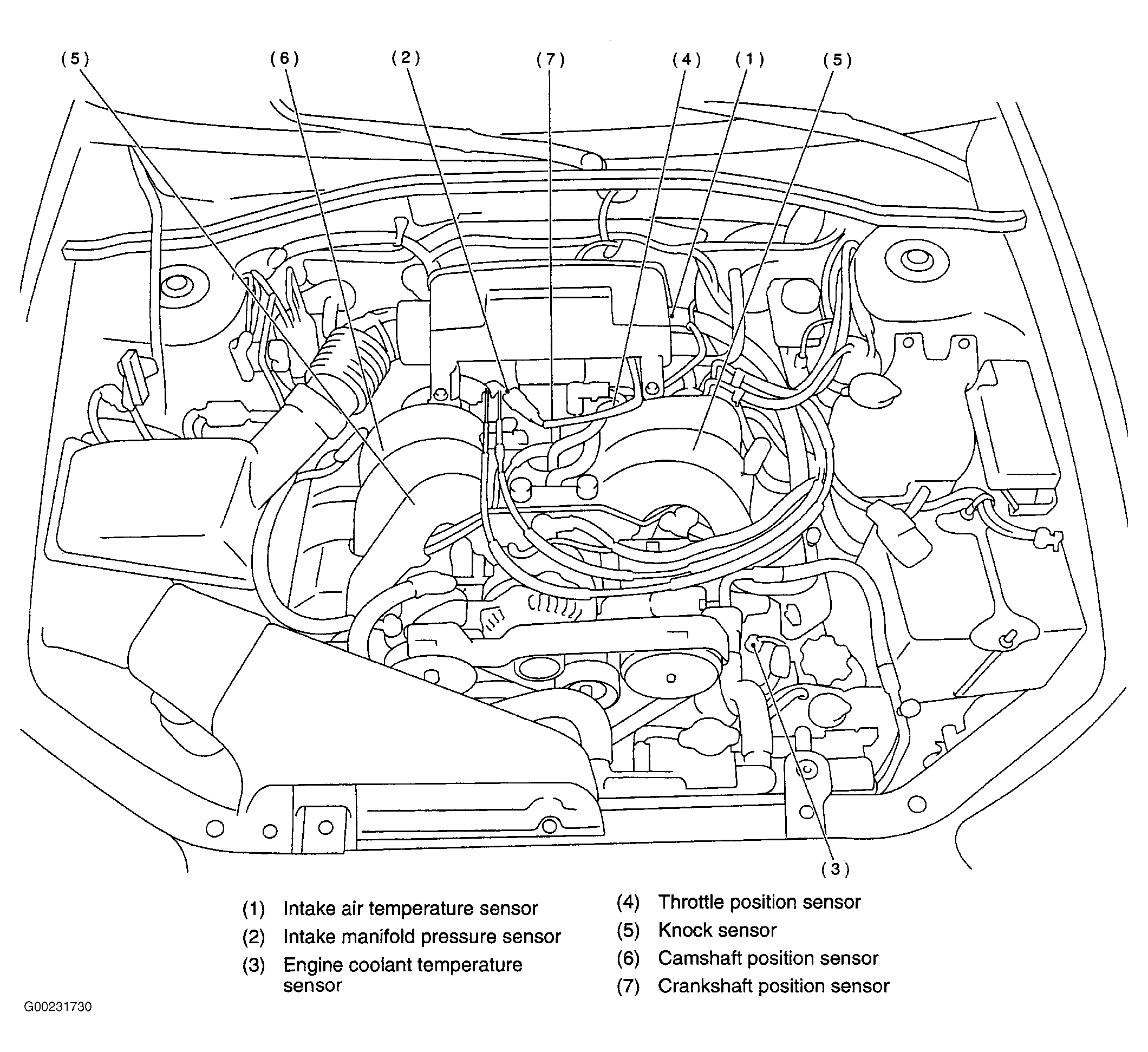

Fig 3: Component Locations (Impreza 2.5L & Outback Sport)

Courtesy of SUBARU OF AMERICA, INC.

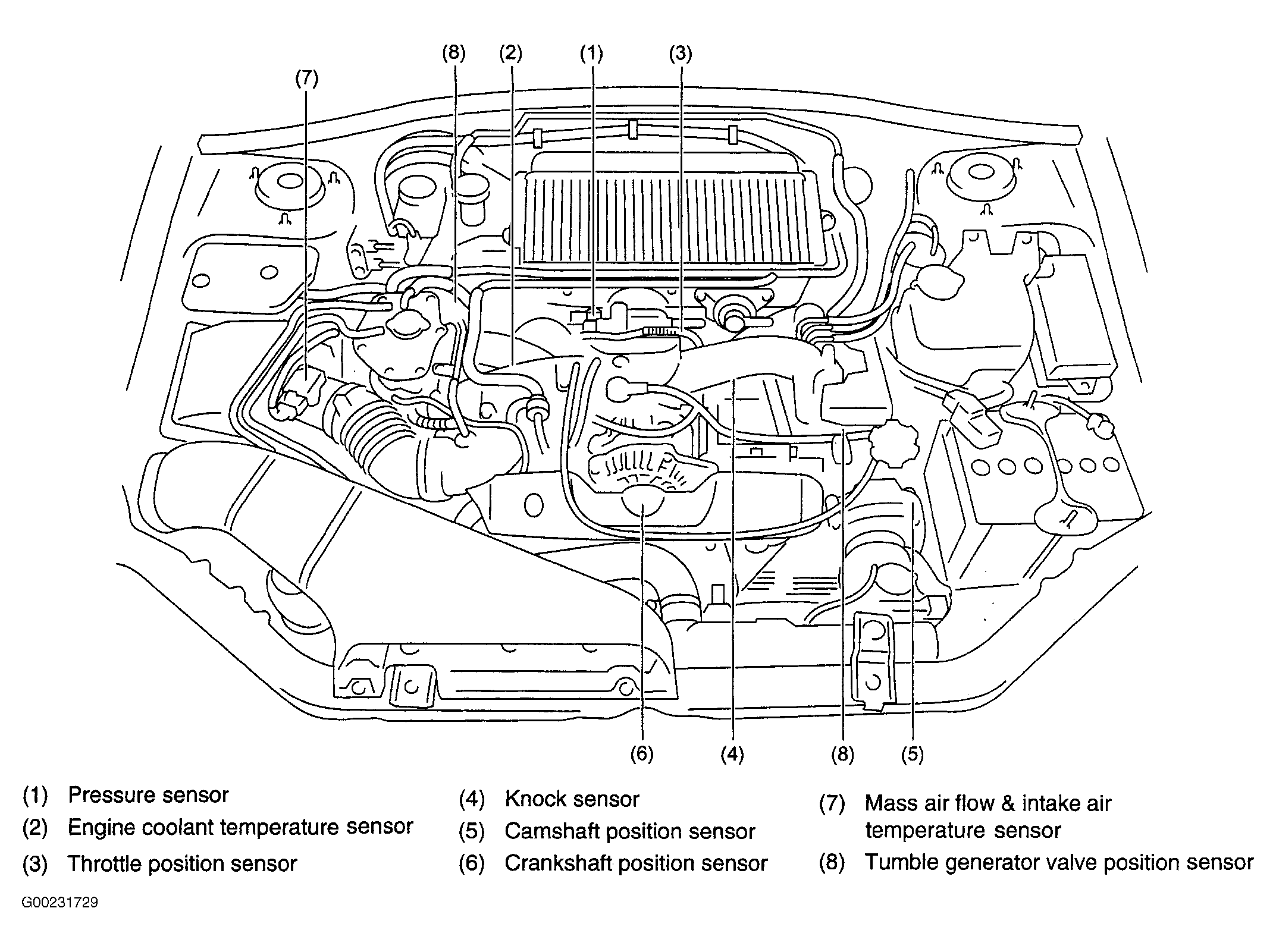

Fig 4: Component Locations (Impreza WRX 2.0L)

Courtesy of SUBARU OF AMERICA, INC.

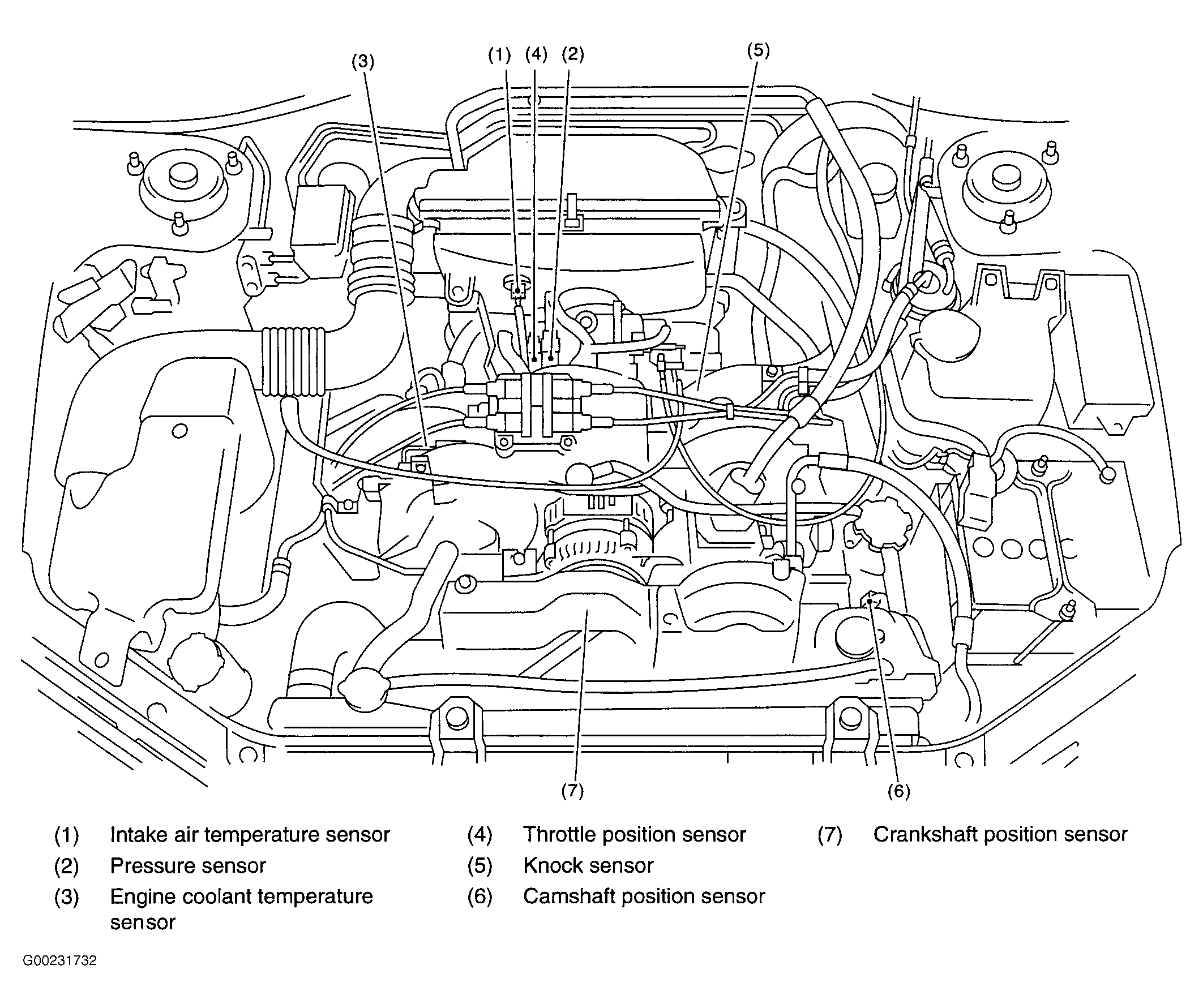

Fig 5: Component Locations (Outback 3.0L)

Courtesy of SUBARU OF AMERICA, INC.
