Front Regulator and Motor Assembly: Removal

Remove the door glass. Refer to REMOVAL , Front Door Glass.
Loosen the nuts to remove rear sash.

Fig 1: Removing Rear Sash
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the motor connector.
Loosen the four bolts and two nuts to remove regulator assembly.

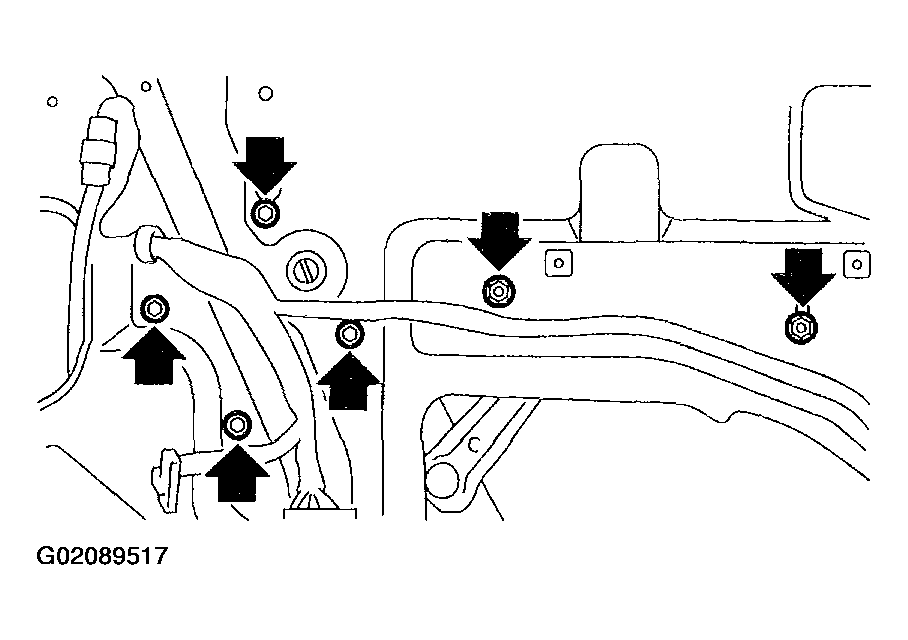

Fig 2: Removing Regulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screw to remove motor assembly.

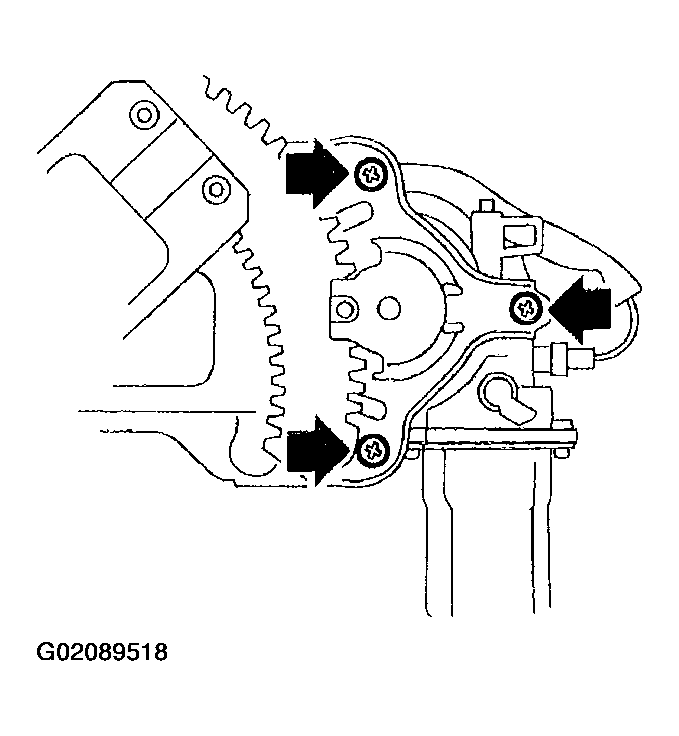

Fig 3: Removing Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
