Inner Rearview Mirror: Removal

NOTE: The spring cannot be reused. Prepare a new spring before removal.

Turn the mirror base 90 degrees clockwise or counterclockwise to remove it.

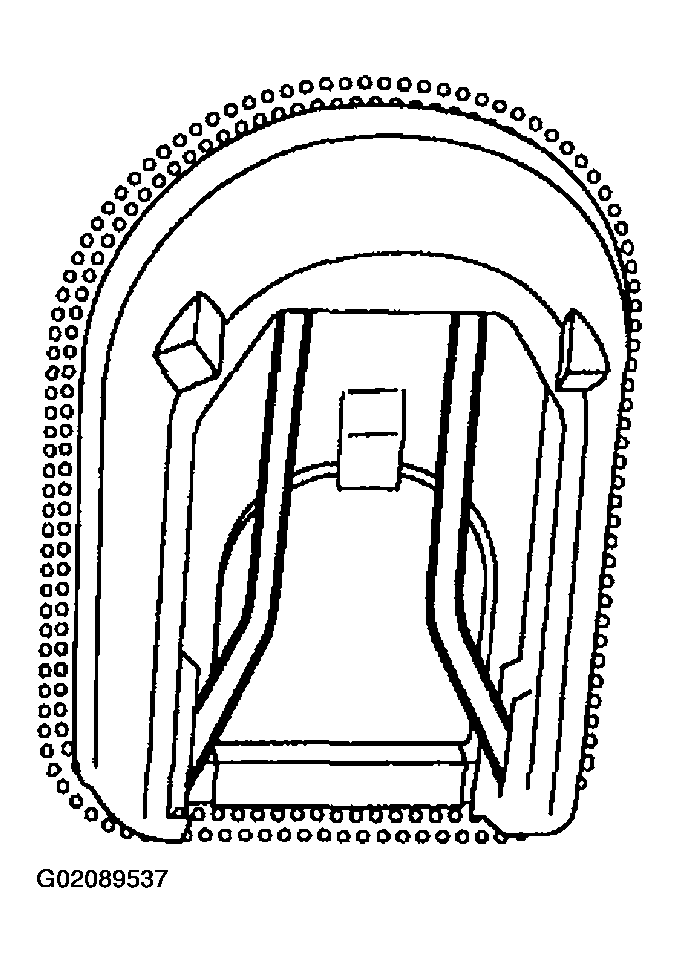

Fig 1: Turning Mirror Base To Remove
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring from mirror base.

Fig 2: Removing Spring From Mirror Base
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Be careful not to damage the mirror surface.
