Outer Mirror Assembly: Removal

  1. Remove the door trim. Refer to REMOVAL , Front Door Trim.
  2. Remove the mirror gusset cover.

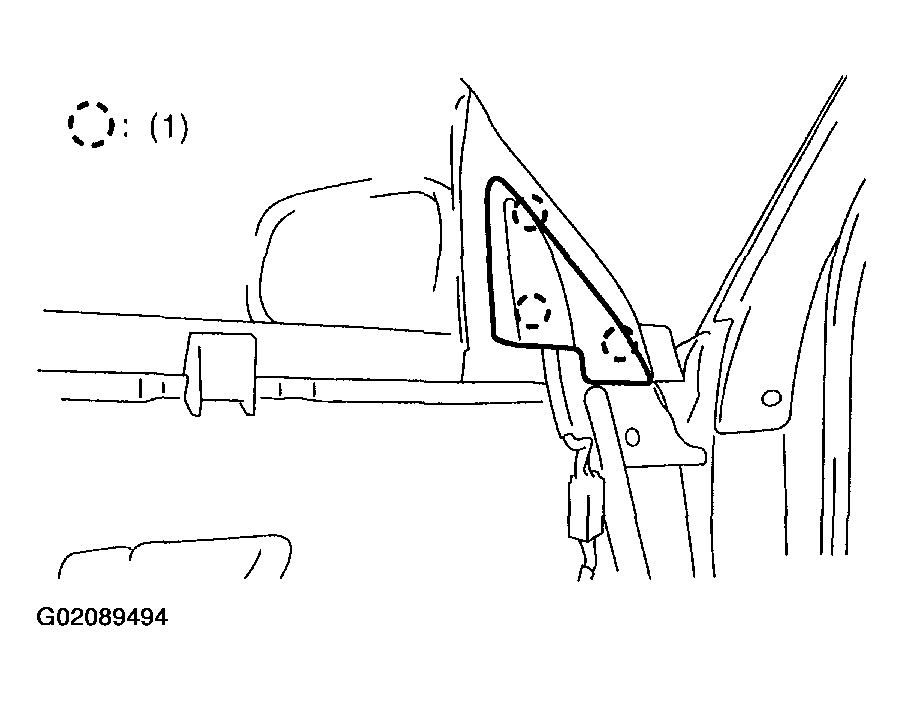

    Fig 1: Removing Mirror Gusset Cover
    G02089494Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the mirror connector.
  4. Remove the grommet, and then loosen the screws to remove mirror assembly.

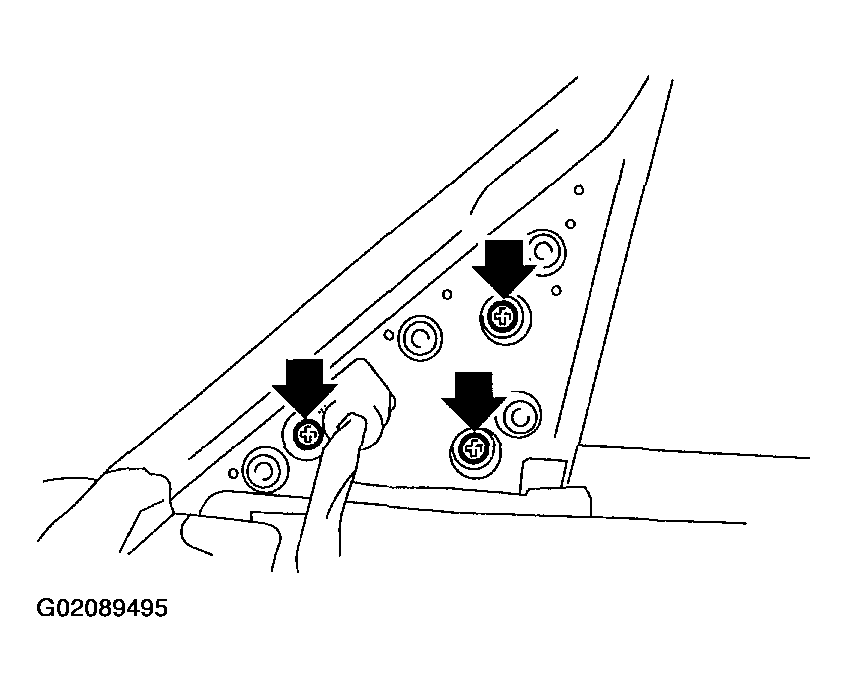

    Fig 2: Removing Mirror Assembly
    G02089495Courtesy of SUBARU OF AMERICA, INC.
