Power Window Control Switch: Inspection: Sub-Switch

Measure the switch resistance.

Front passenger's door switch and rear door switch:

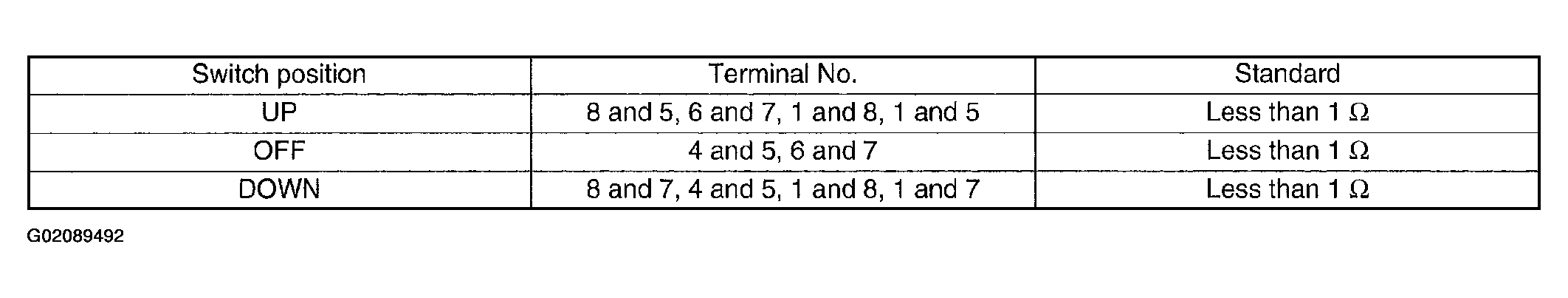

Fig 1: Front Passenger's Door & Rear Door Switch Resistance Chart
G02089492Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the sub-switch.
