Rear Gate Glass: Installation

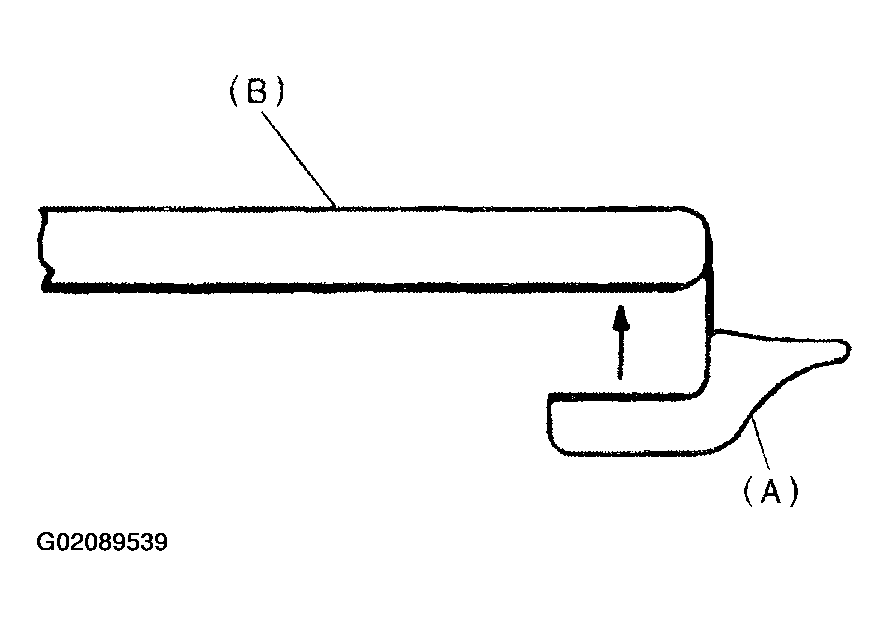

- Install a new rubber strip (A) by aligning it with the end of the rear gate glass (B).
Courtesy of SUBARU OF AMERICA, INC.

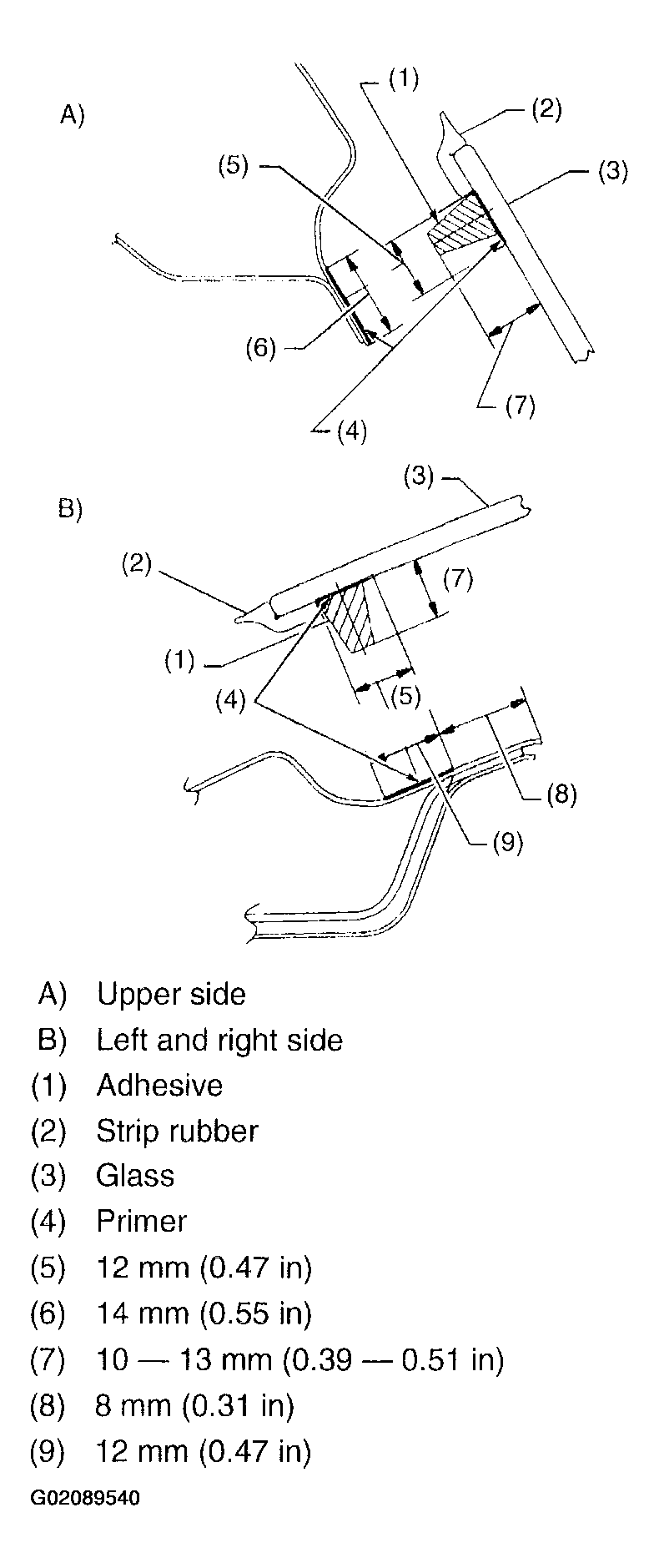

- Install the glass in same procedure as for windshield glass. Refer to
INSPECTION
, Front Regulator and Motor Assembly.
Courtesy of SUBARU OF AMERICA, INC.
- About one hour after installation, conduct a leak test.
- After completion of all work, allow the vehicle to stand for about 24 hours.
NOTE:
- For minimum drying time and time the vehicle must be left standing before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
- When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
- Connect the rear defogger terminals.
- Install the rear gate garnish. Refer to
INSTALLATION
, Rear Gate Garnish Assembly.
