Camshaft Position Sensor: Removal

Disconnect the ground cable from battery.

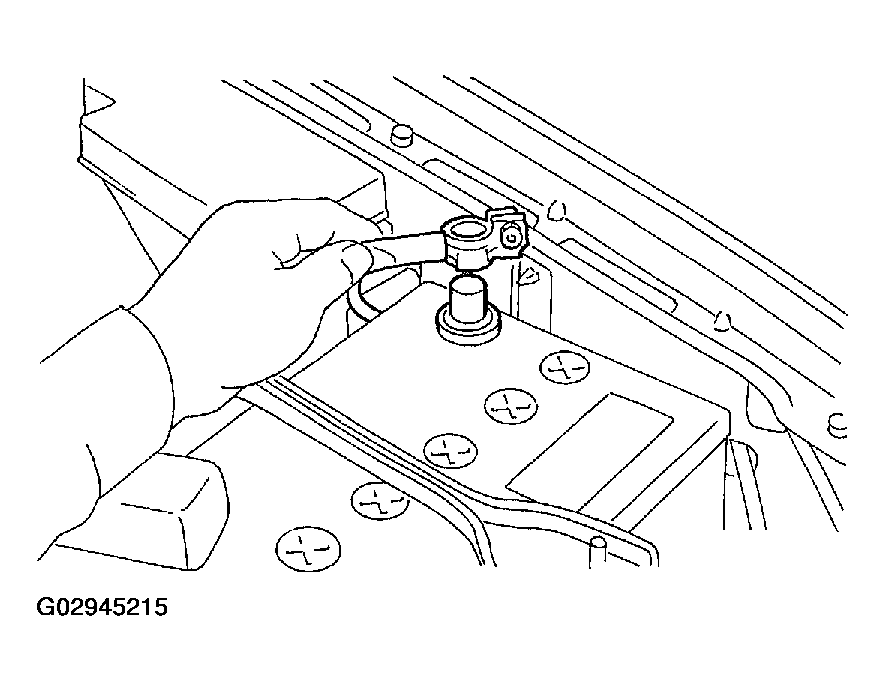

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the camshaft position sensor.

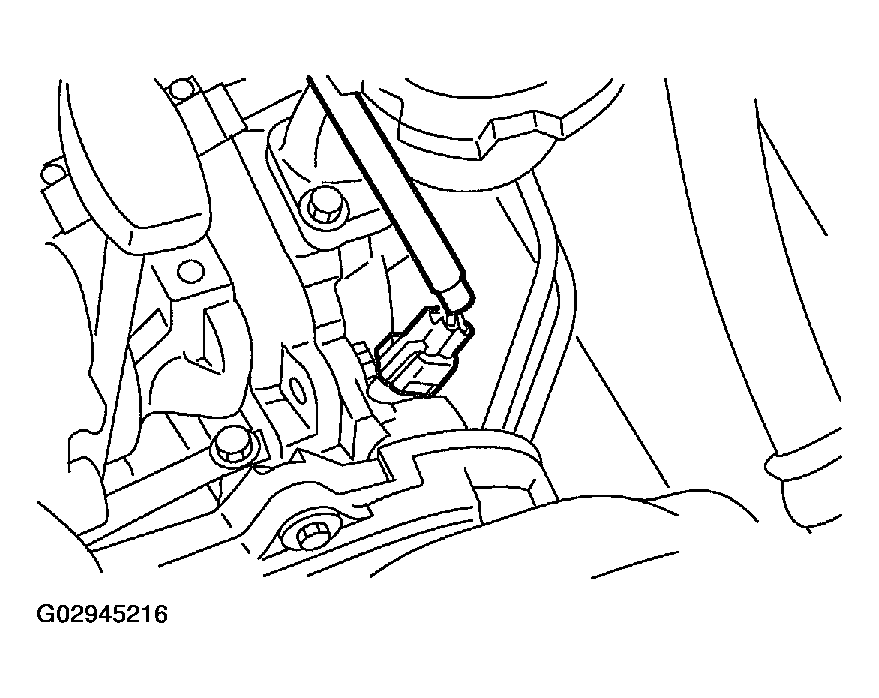

Fig 2: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs camshaft position sensor to the camshaft position sensor support.

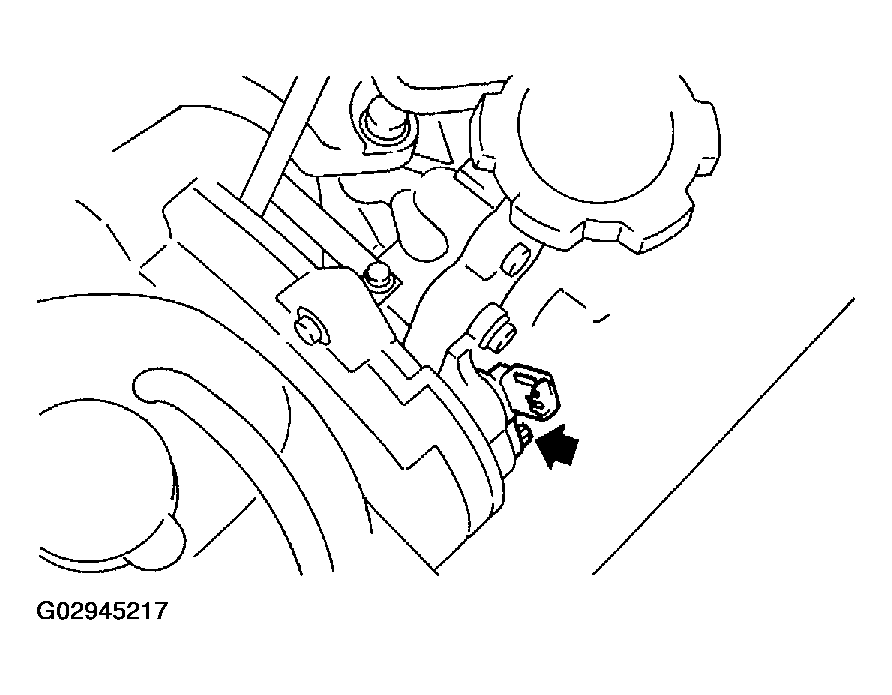

Fig 3: Locating Bolt For Removal
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs camshaft position sensor support to the camshaft cap LH.

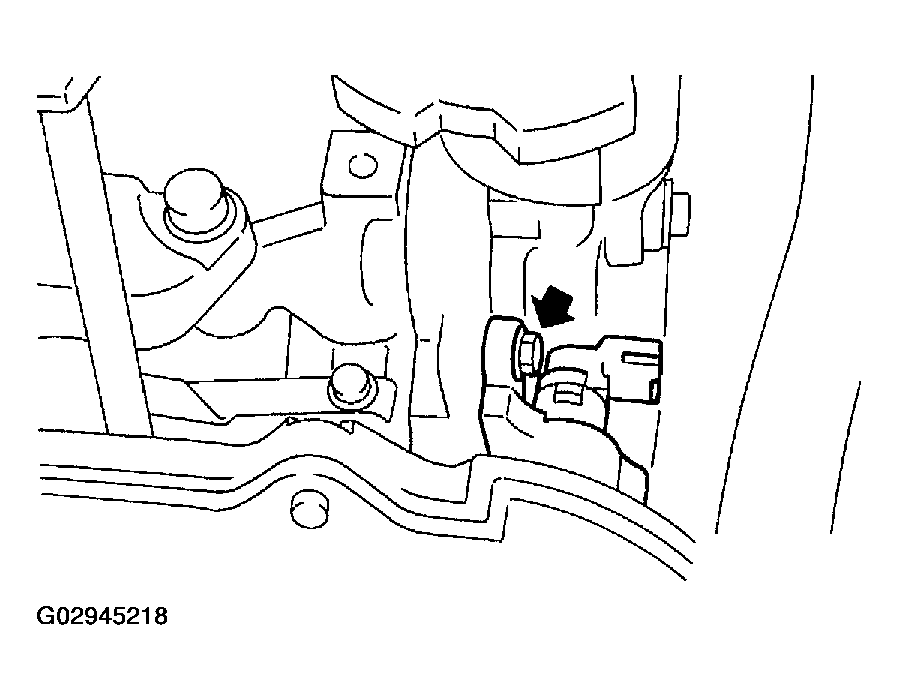

Fig 4: Locating Bolt Which Install Camshaft Position Sensor Supporting To Camshaft Cap LH For Removal
Courtesy of SUBARU OF AMERICA, INC.
Remove the camshaft position sensor and camshaft position sensor support as a unit.
Remove the camshaft position sensor itself.

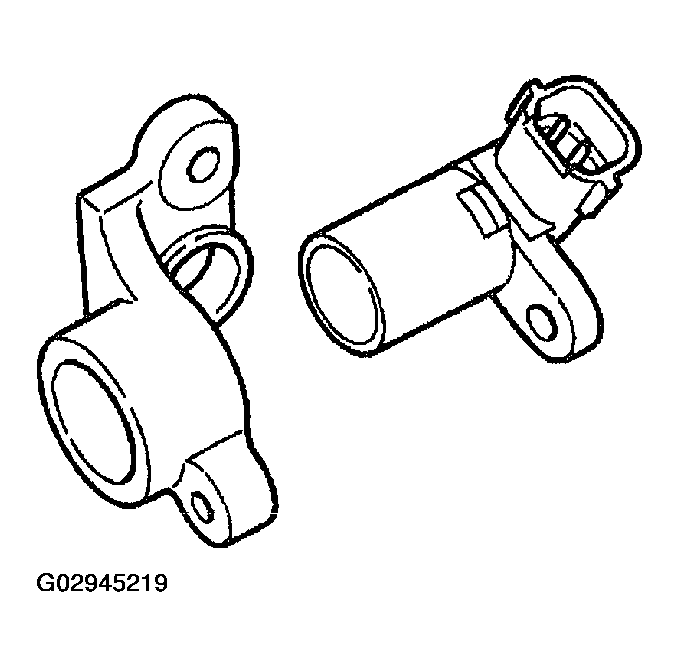

Fig 5: Removing Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
