Crankshaft Position Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

  1. T: 6.4 N.m (0.65 kgf-m, 4.7ft-lb)

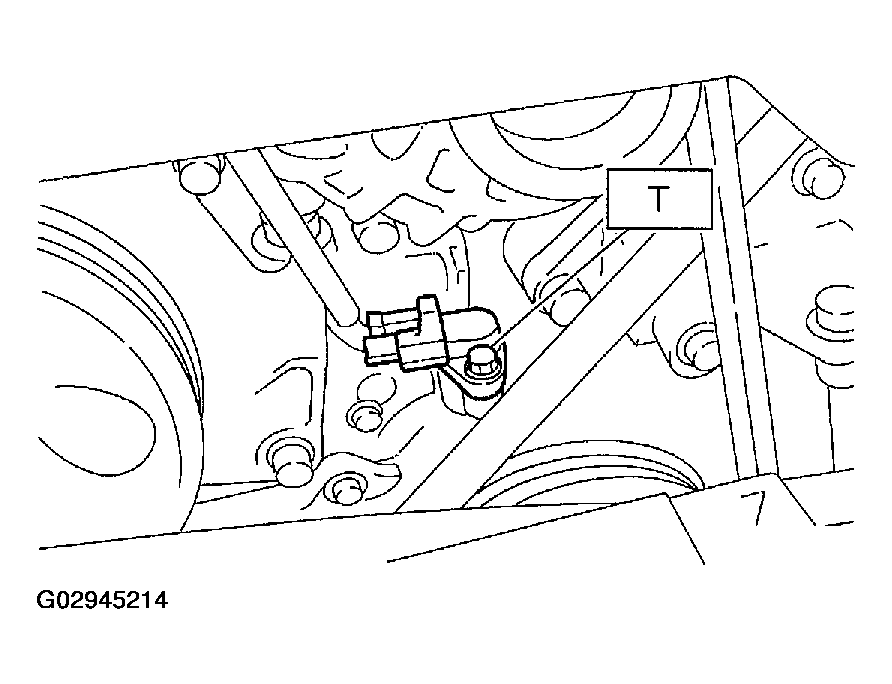

Fig 1: Locating Bolt For Tightening
G02945214Courtesy of SUBARU OF AMERICA, INC.
