Crankshaft Position Sensor: Removal

Disconnect the ground cable from battery.

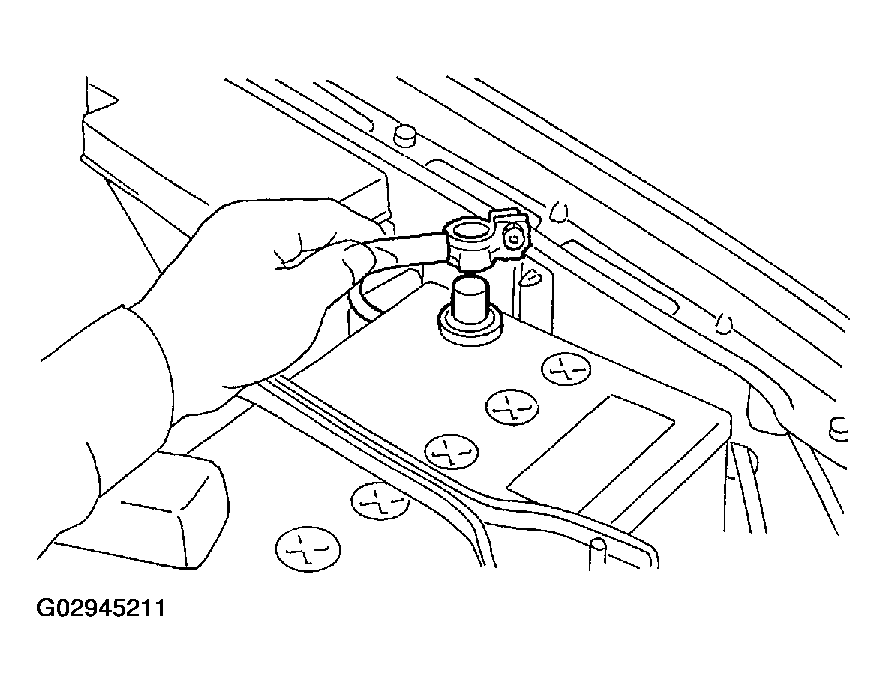

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which install crankshaft position sensor to the cylinder block.

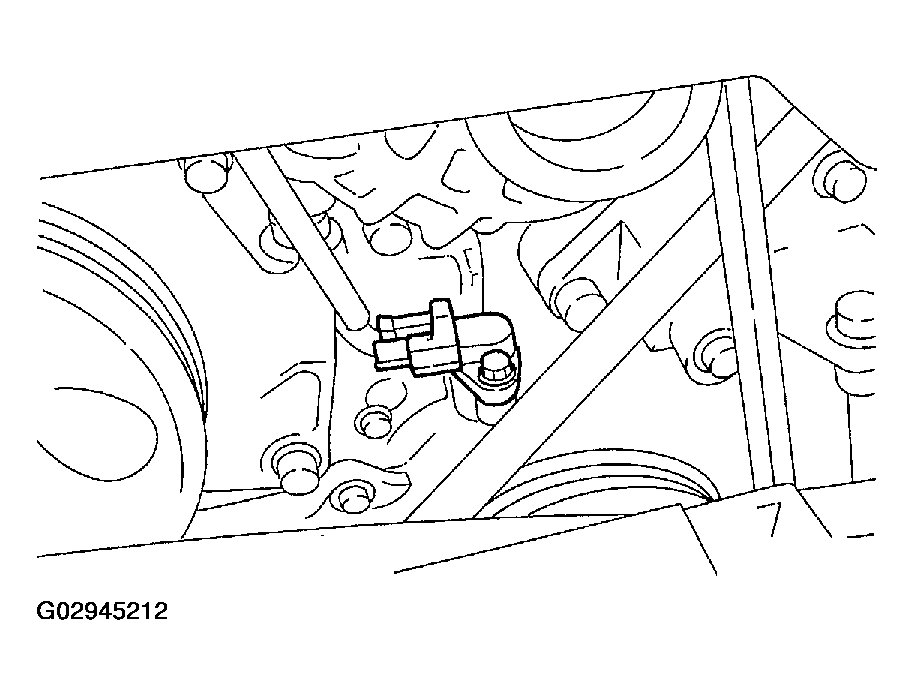

Fig 2: Identifying Bolt For Removal
Courtesy of SUBARU OF AMERICA, INC.
Remove the crankshaft position sensor, and disconnect the connector from it.

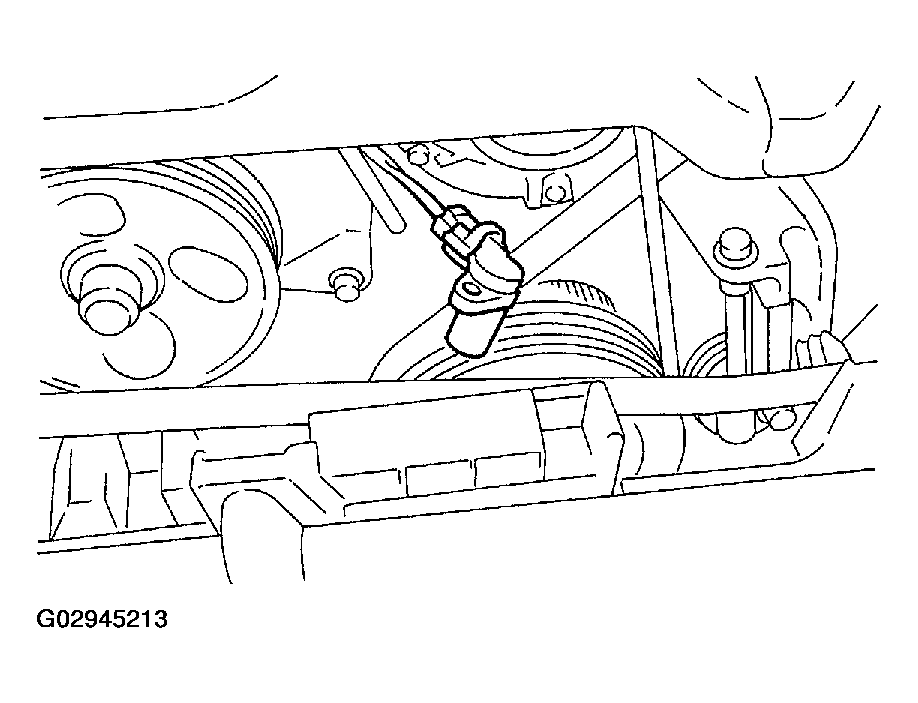

Fig 3: Removing Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
