Engine Control Module: Removal

Disconnect the ground cable from battery.

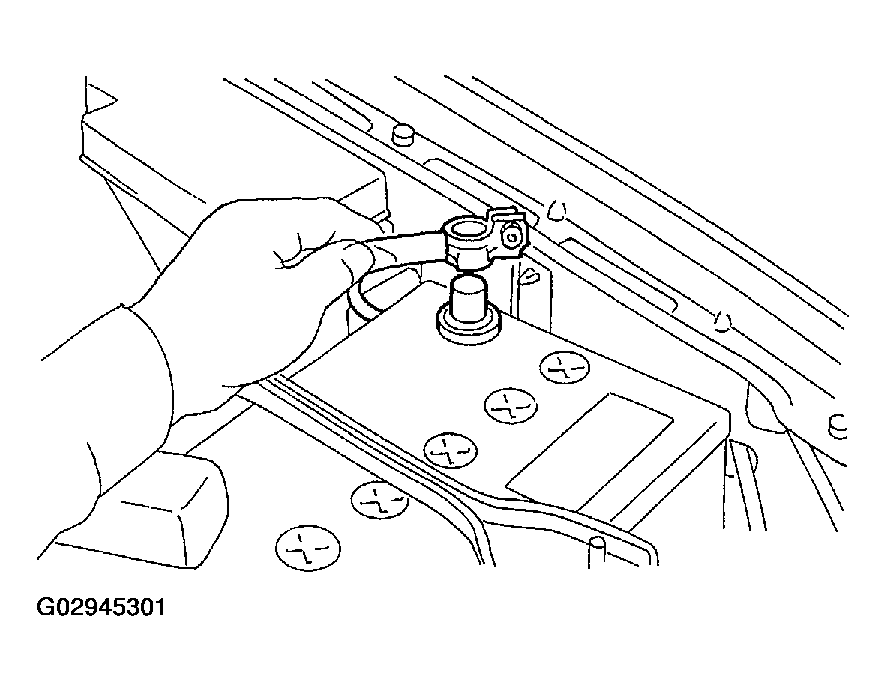

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower inner trim of passenger side. Refer to REMOVAL , Lower Inner Trim.
Detach the floor mat of front passenger seat.
Remove the protect cover.

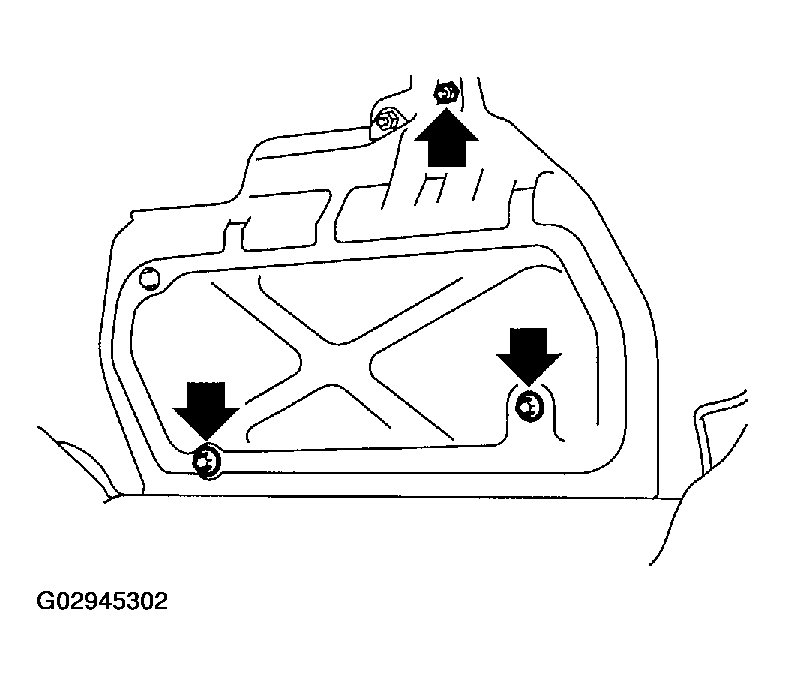

Fig 2: Locating Bolts For Removing Lower Inner Trim Of Passenger Side
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts (A) which hold ECM to the bracket.
Remove the clip (B) from the bracket.

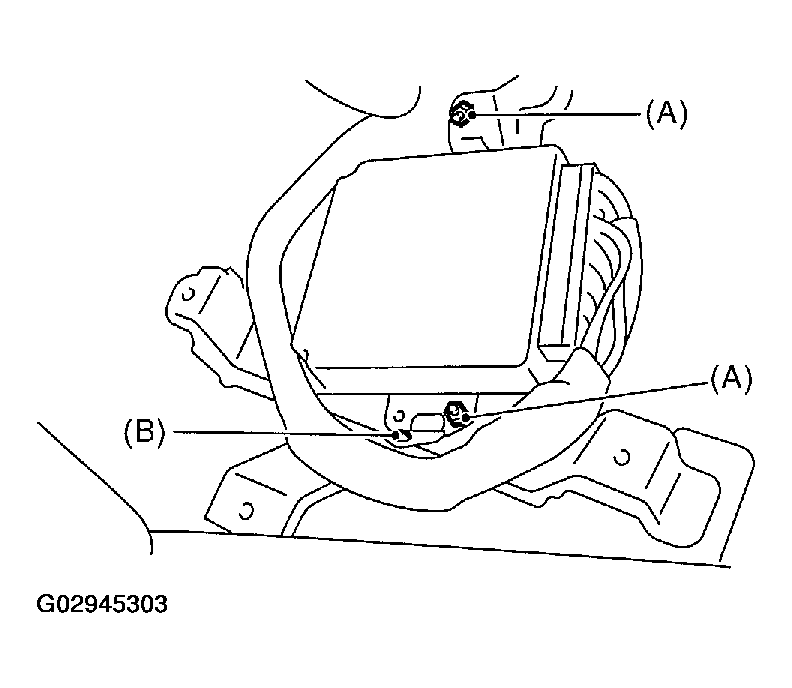

Fig 3: Locating Nuts Clip for Removing
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ECM connectors and take out the ECM.
