Front Oxygen (A/F) Sensor: Removal

Disconnect the ground cable from battery.

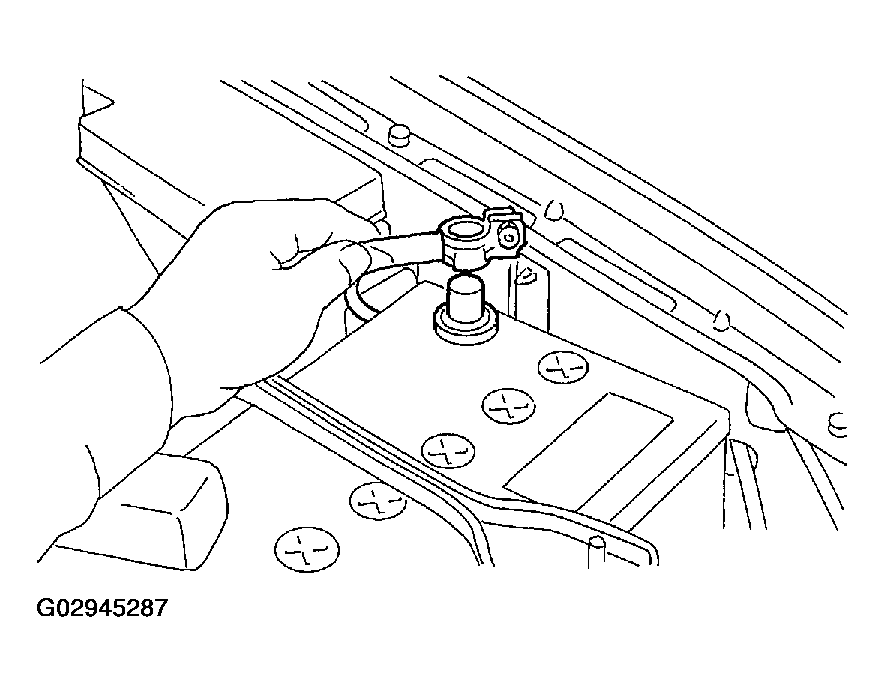

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from engine hanger, and then disconnect the front oxygen (A/F) sensor connector.

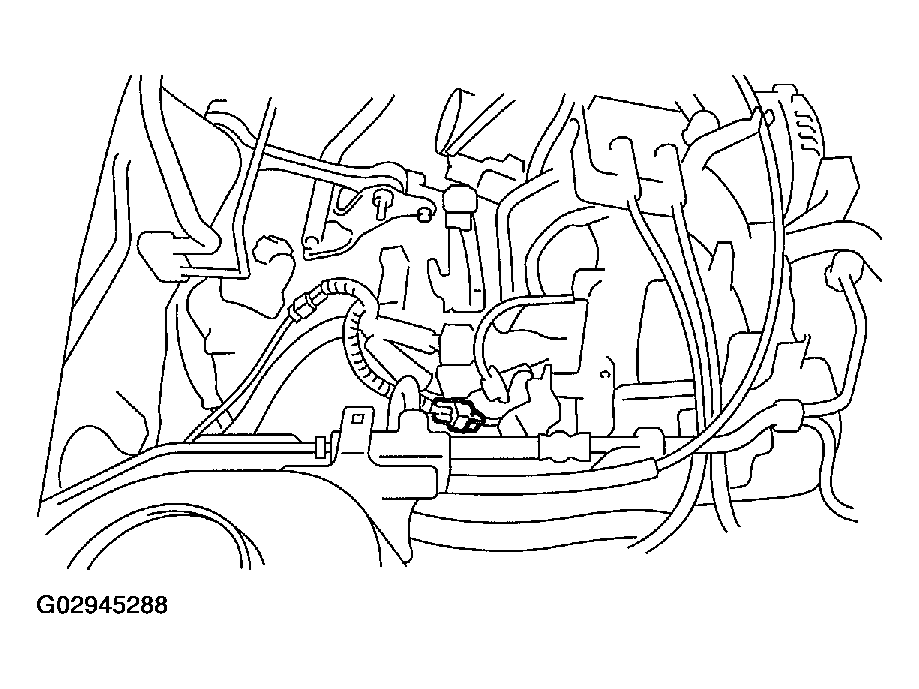

Fig 2: Identifying Connector Oxygen Sensor Connector For Disconnection
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Apply SUBARU CRC or its equivalent to the threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.
SUBARU CRC (Part No. 004301003)
Remove the front oxygen (A/F) sensor.
CAUTION: When removing the oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage exhaust pipe.

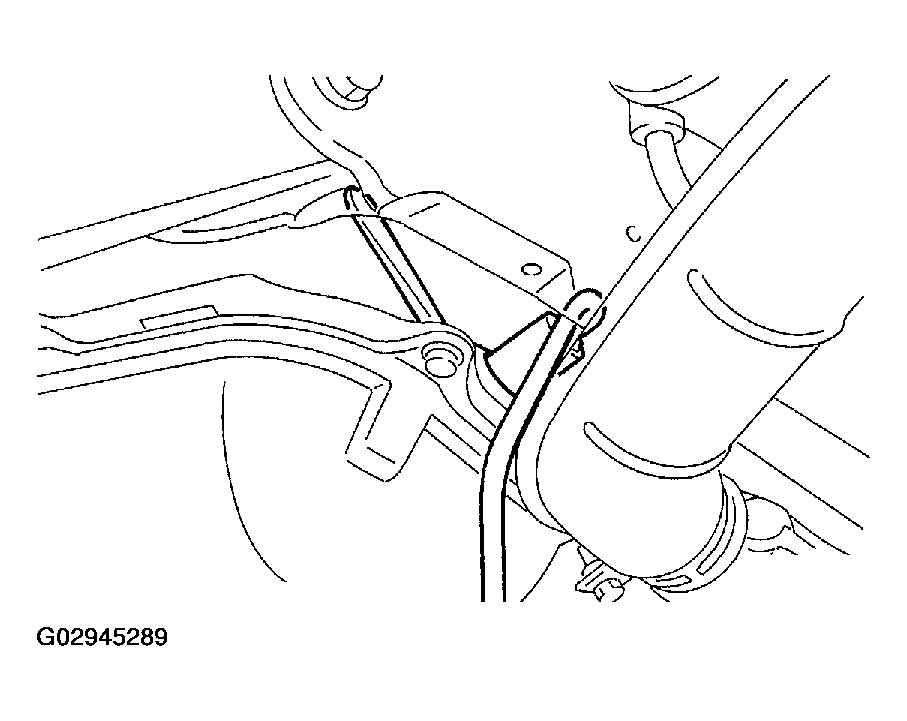

Fig 3: Precaution While Removing Oxygen (A/F) Sensor
Courtesy of SUBARU OF AMERICA, INC.
