Fuel Filler Pipe: Assembly

  1. Install the shut valve on the fuel filler pipe. Refer to INSTALLATION , Shut Valve.
  2. Connect the evaporation hose to the fuel filler pipe.

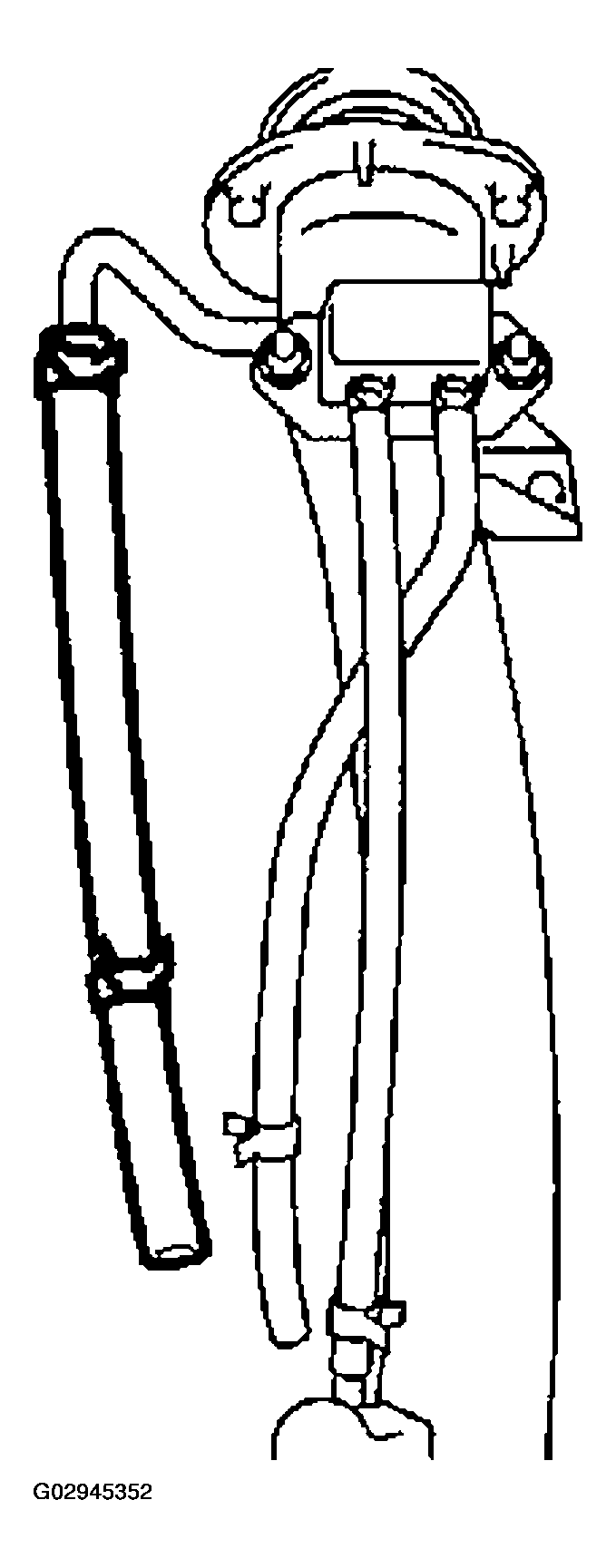

    Fig 1: Connecting Evaporation Hose To Fuel Filler Pipe
    G02945352Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the evaporation hose to the evaporation pipe.
    Fig 2: Connecting Evaporation Hose To Evaporation Pipe
    G02945353Courtesy of SUBARU OF AMERICA, INC.
  4. Install the evaporation pipe to the fuel filler pipe.

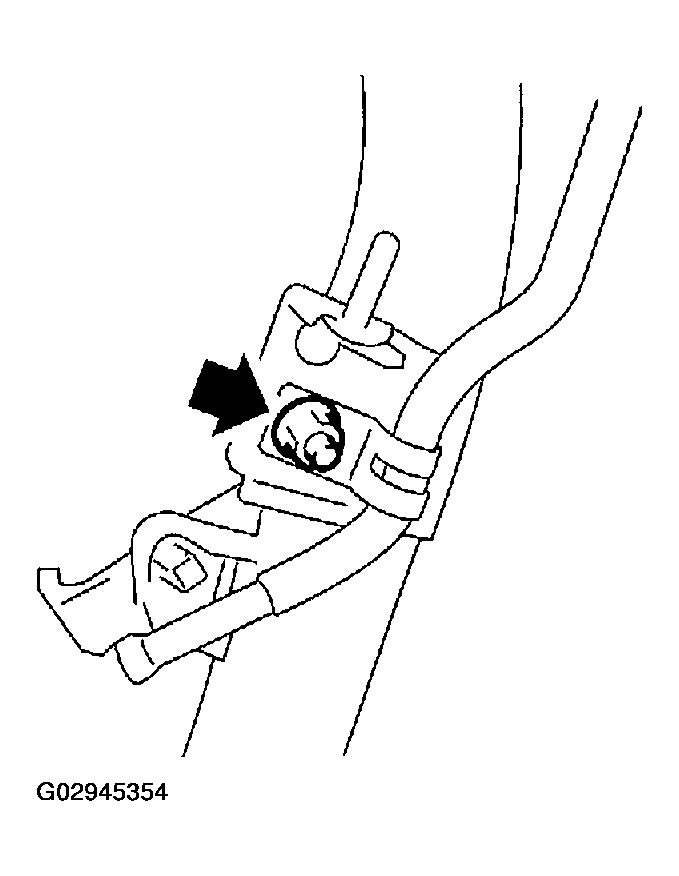

Fig 3: Locating Bolt For Installing Evaporation Pipe To Fuel Filler Pipe
G02945354Courtesy of SUBARU OF AMERICA, INC.
