Fuel Filler Pipe: Removal

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.

Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Open the fuel filler flap lid and remove the filler cap.
Disconnect the ground cable from battery.

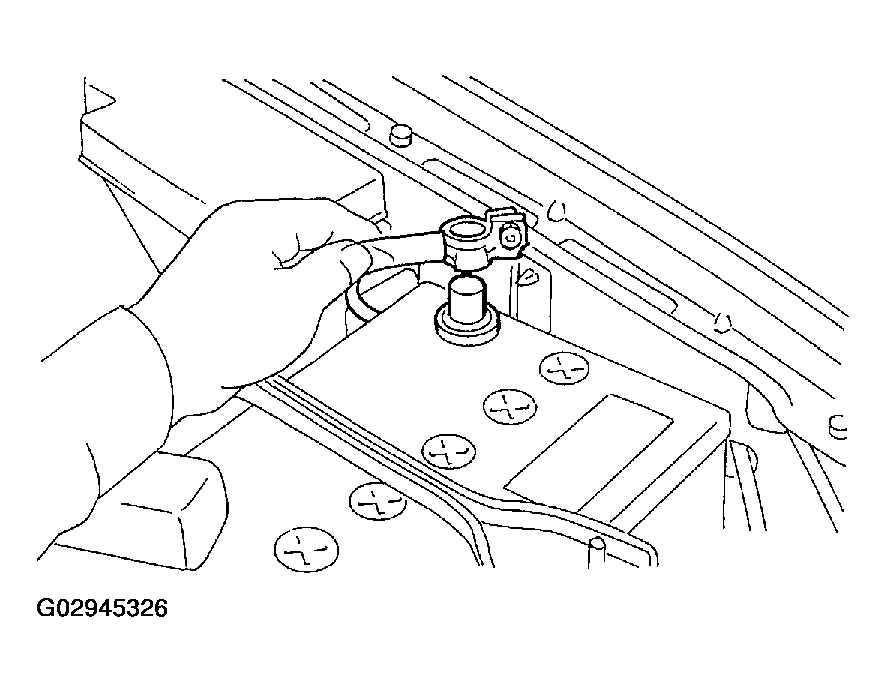

Fig 1: Disconnect Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws holding packing in place.

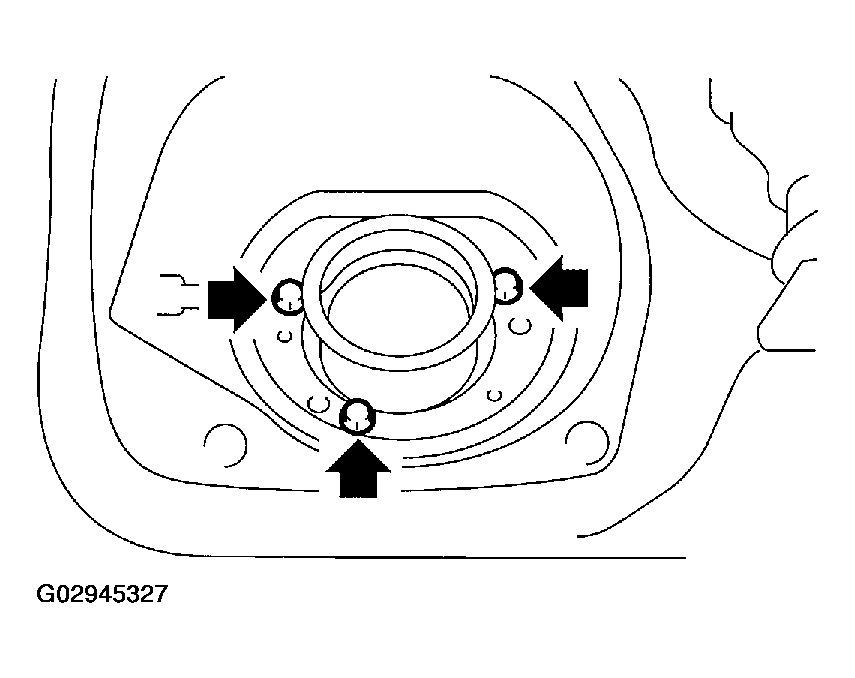

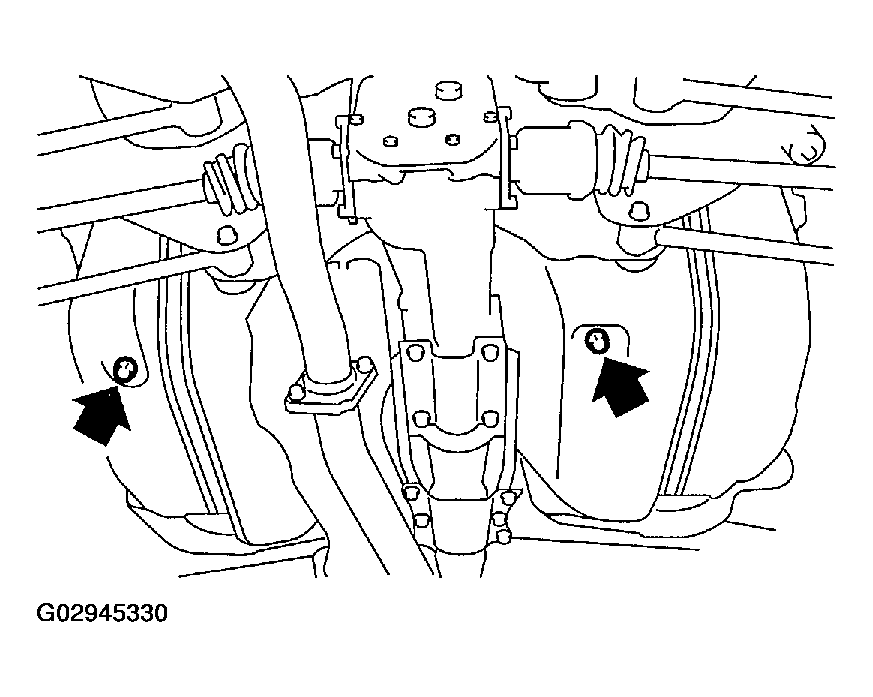

Fig 2: Locating Screws For Removal
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the rear right side wheel nuts.
Remove the rear right side wheel.

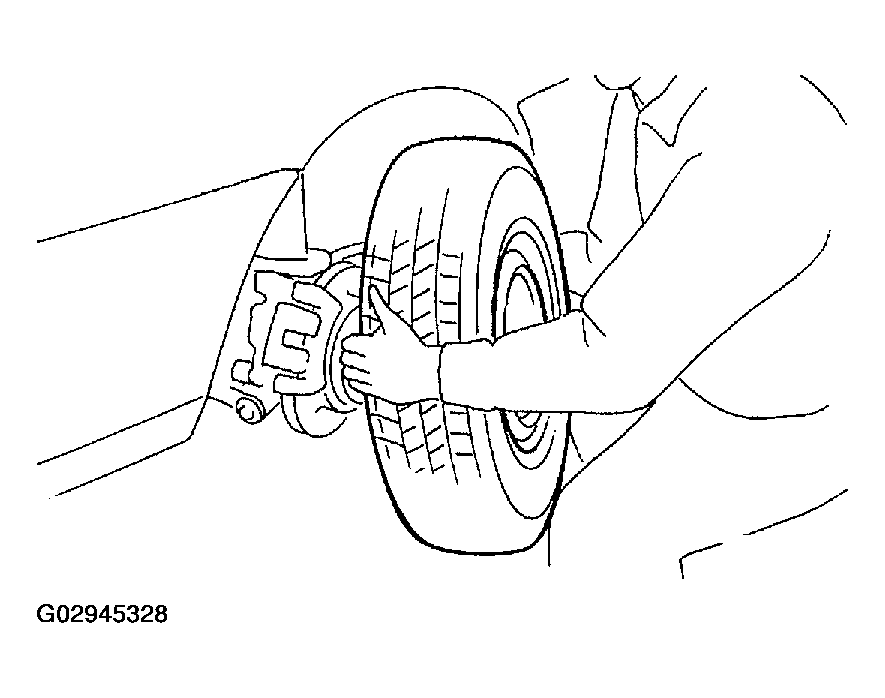

Fig 3: Removing Rear Right Side Wheel
Courtesy of SUBARU OF AMERICA, INC.
Drain the fuel from the fuel tank. Set a container under the vehicle and remove the drain plug from the fuel tank.

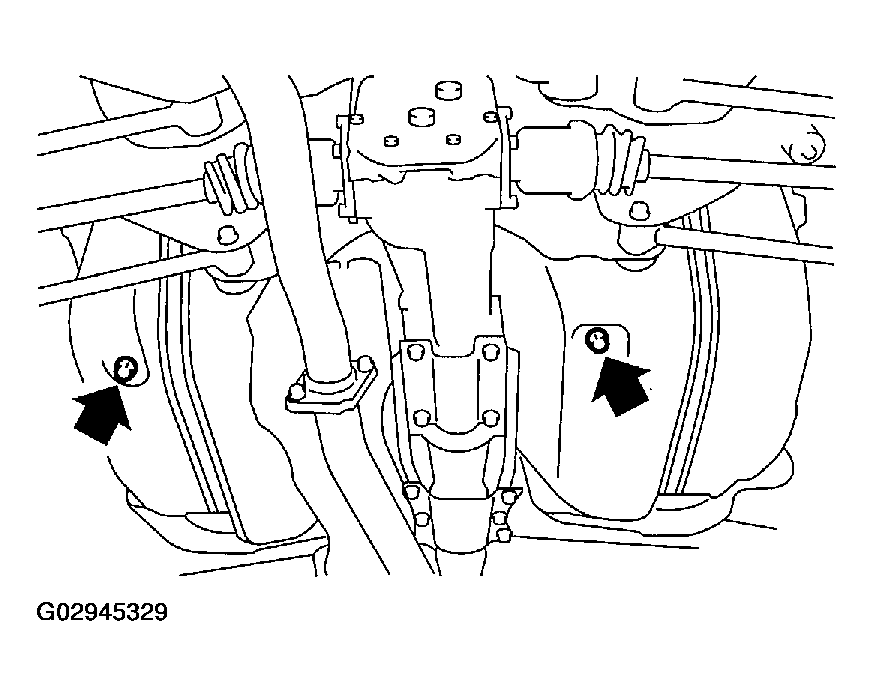

Fig 4: Locating Bolts For Draining Fuel
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel drain plug.
Tightening torque:
1. 26 N.m (2.65 kgf-m, 19.2 ft-lb)
Fig 5: Locating Bolt For Tightening
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel filler pipe protector.

Fig 6: Locating Bolt For Removing Fuel Filler Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Separate the evaporation hoses from the clip of fuel filler pipe.

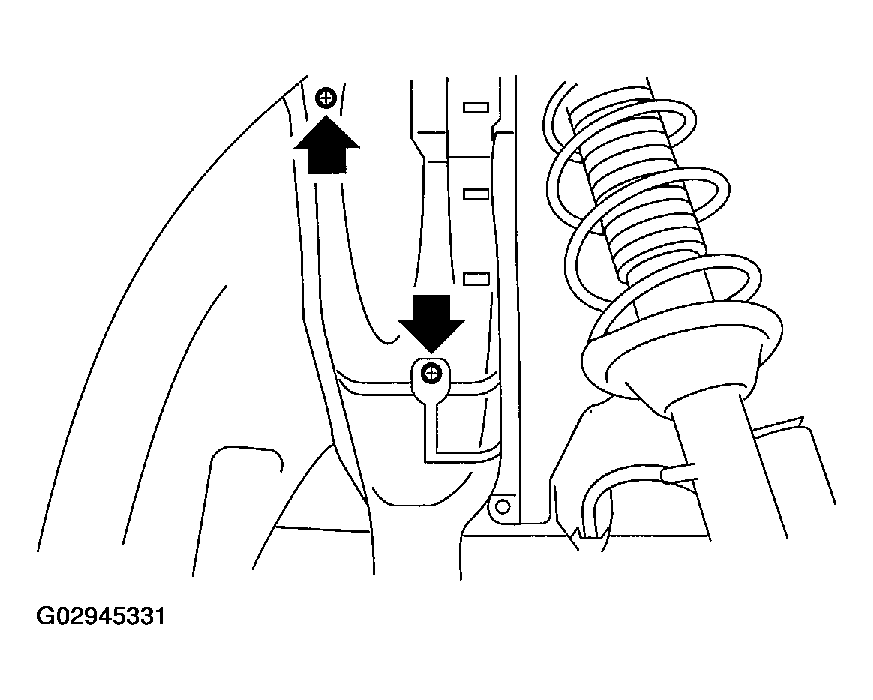

Fig 7: Locating Evaporation Hose Separating Position
Courtesy of SUBARU OF AMERICA, INC.

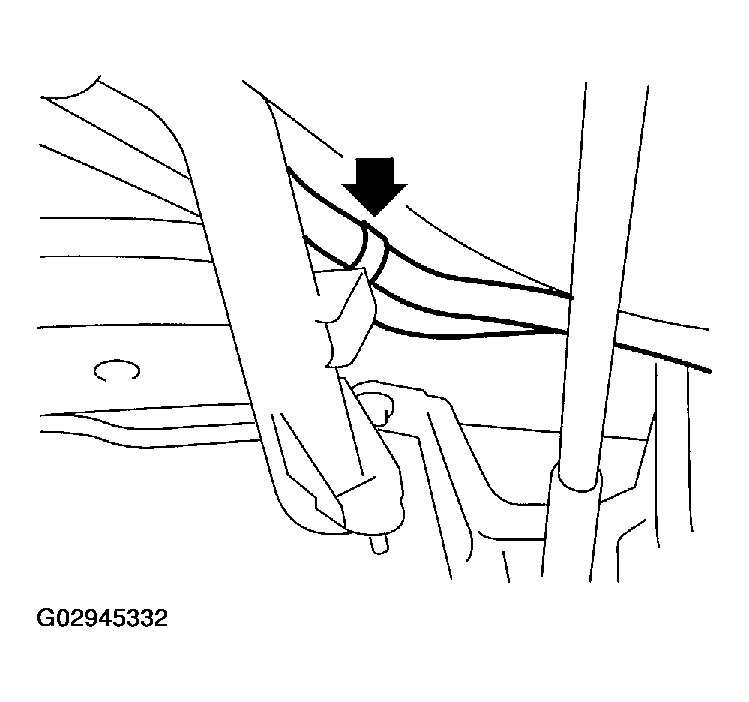

Disconnect the evaporation hoses from the pipes.

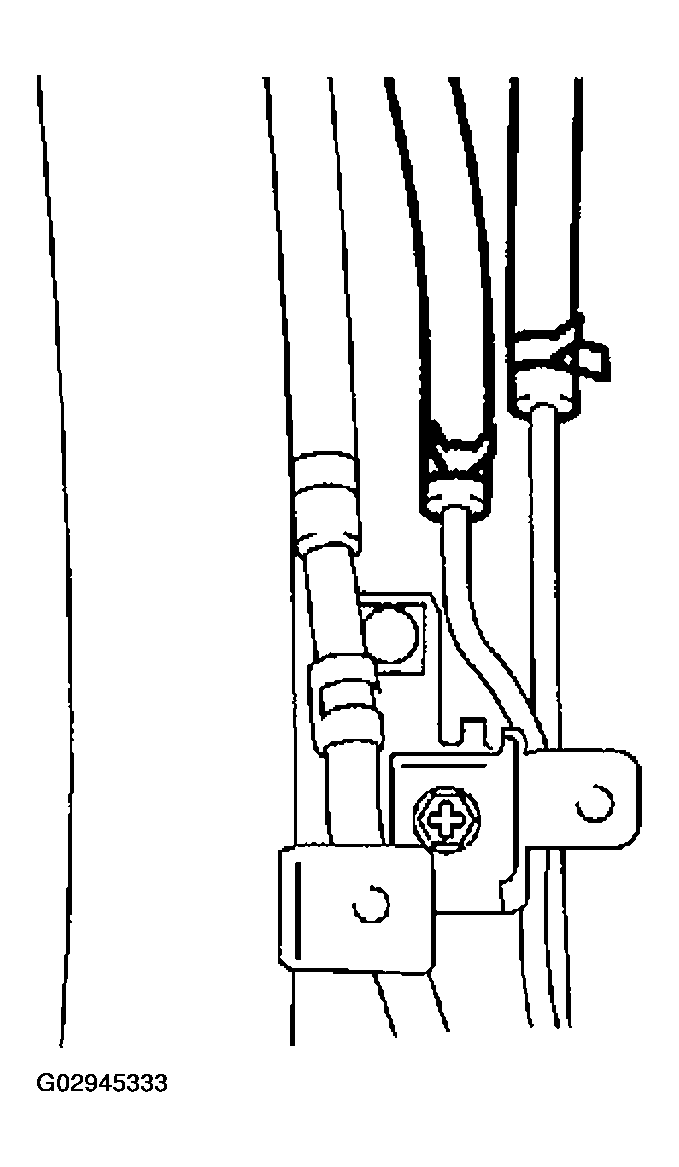

Fig 8: Identifying Evaporation Hose For Disconnection
Courtesy of SUBARU OF AMERICA, INC.

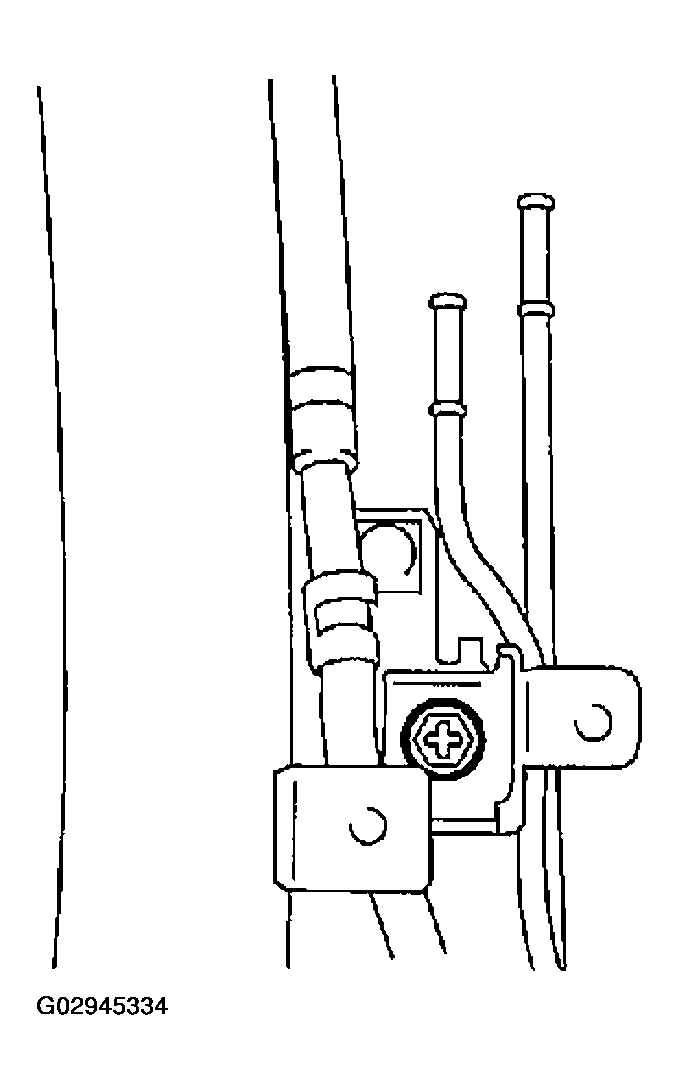

Remove the bolts which hold the fuel filler pipe bracket on the body.

Fig 9: Identifying Bolts For Removal
Courtesy of SUBARU OF AMERICA, INC.

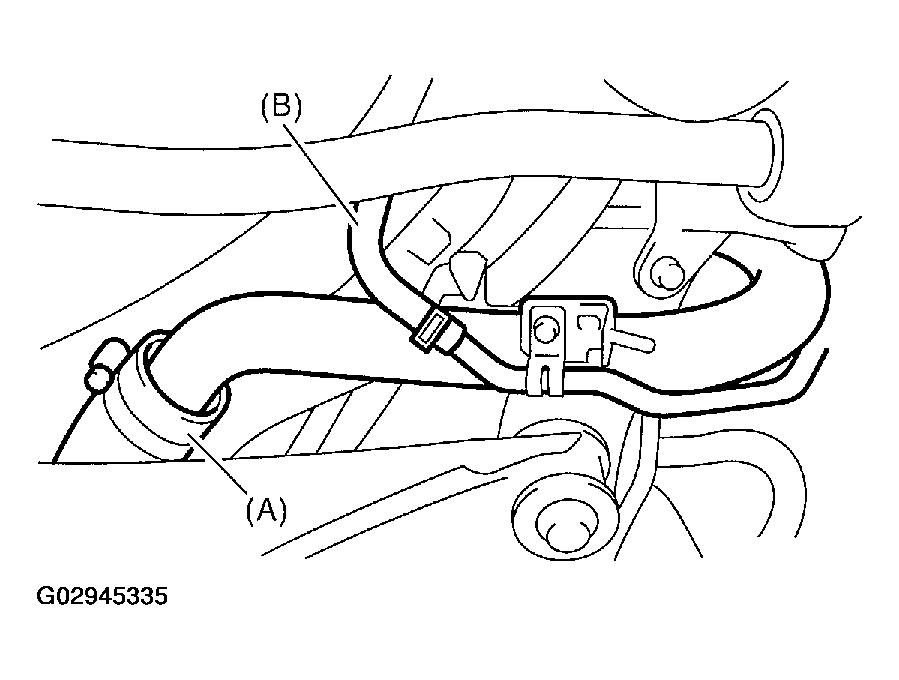

Loosen the clamp and separate the fuel filler hose (A) from the fuel filler pipe.
Move the clip and separate the evaporation hose (B).

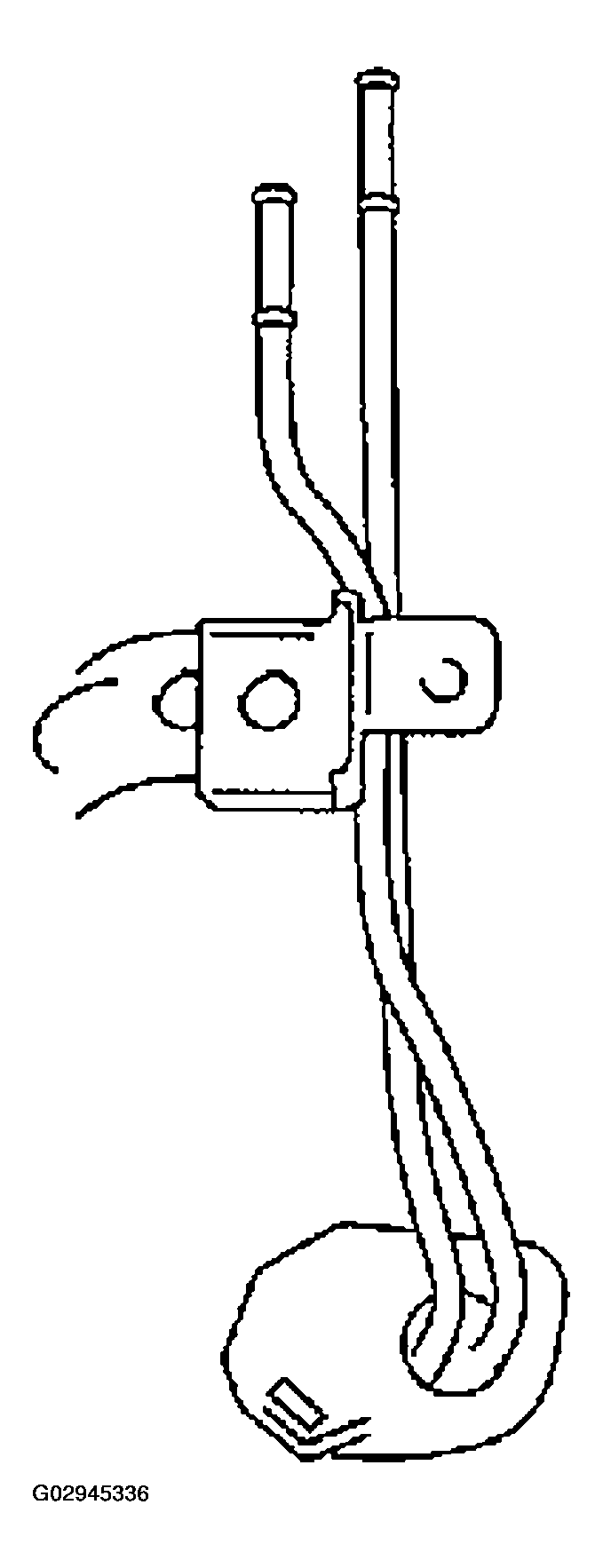

Fig 10: Locating Fuel Filler Hose Evaporation Hose For Separation
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel filler pipe to under side of the vehicle.
Remove the evaporation pipe together with clip from the body.

Fig 11: Removing Evaporation Pipe Together With Clip From Body
