RH Side

Release the fuel pressure.
Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Open the fuel flap lid, and remove the fuel filler cap.
Disconnect the ground cable from battery.

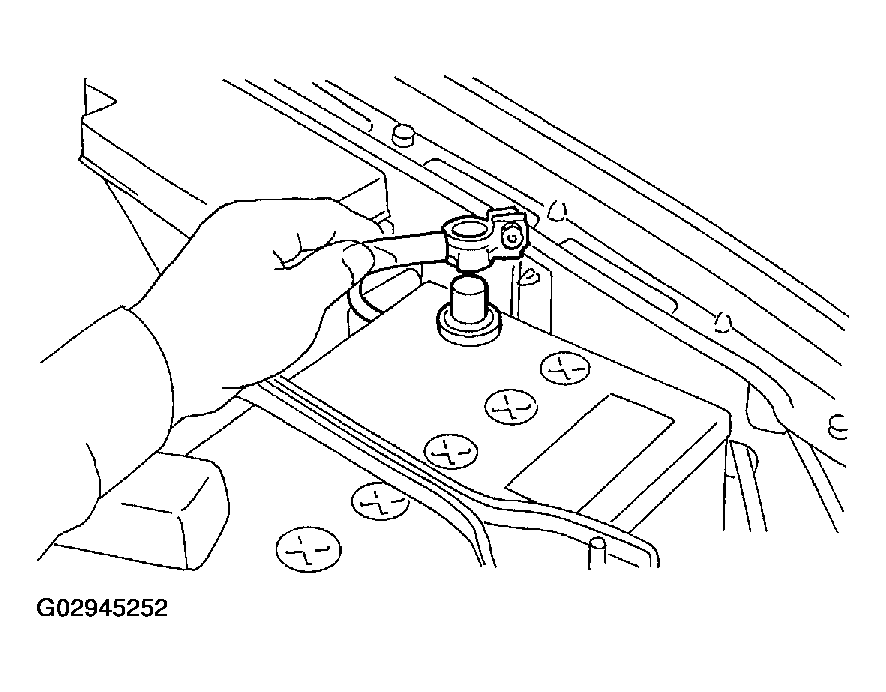

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the resonator chamber. Refer to REMOVAL , Resonator Chambers.

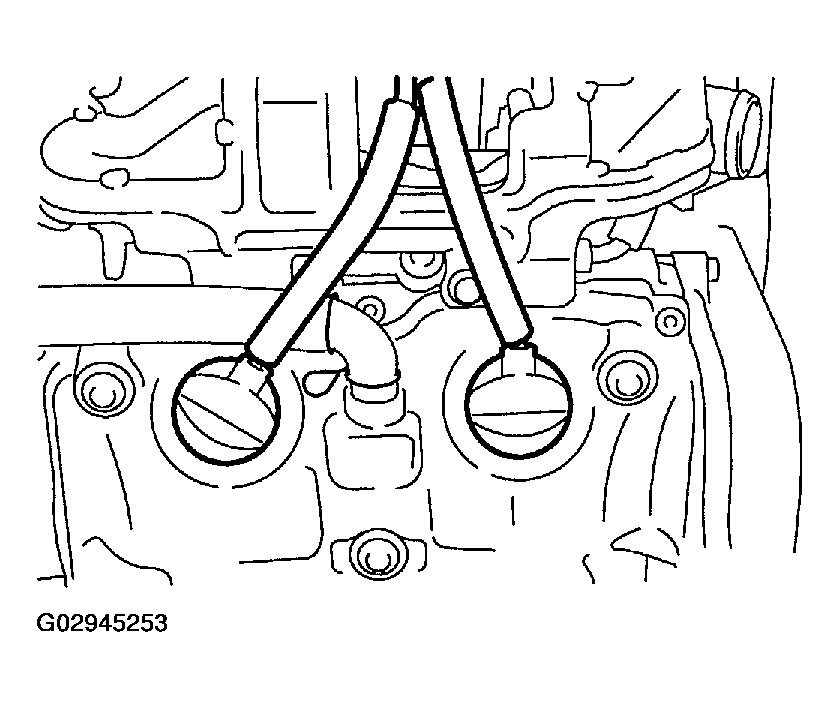

Remove the spark plug cords from the spark plugs (#1 and #3 cylinders).

Fig 2: Identifying Spark Plug Cords For Removal
Courtesy of SUBARU OF AMERICA, INC.
Remove the power steering pump and tank from the brackets.
1. Remove the front side V-belt. Refer to REMOVAL , V-belt.
2. Remove the bolts which hold the power steering pipes onto the intake manifold protector.

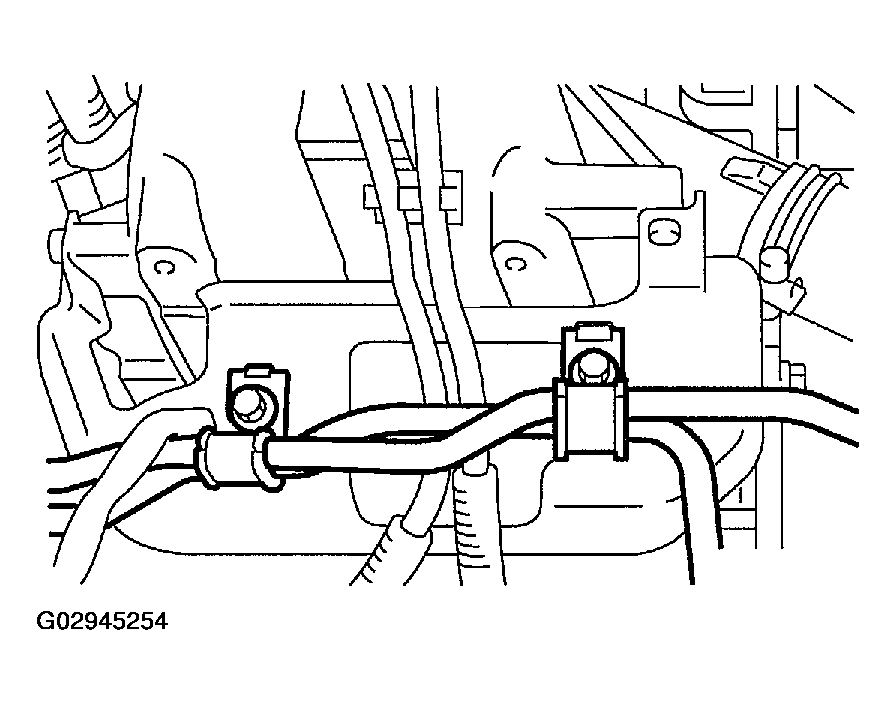

  Fig 3: Identifying Bolts For Removal
  Courtesy of SUBARU OF AMERICA, INC.

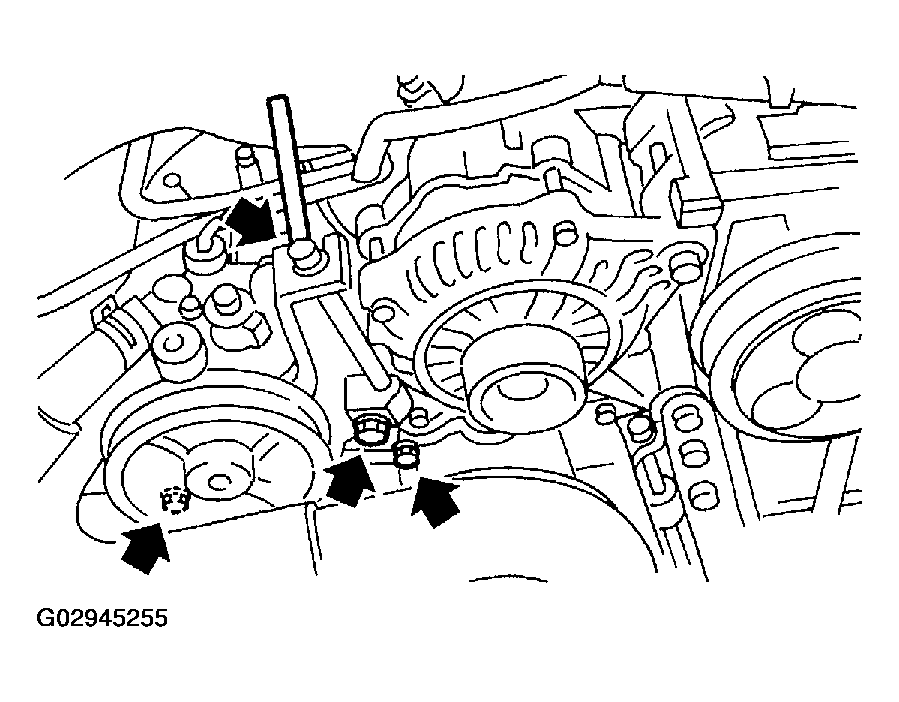

3. Remove the bolts which install the power steering pump to the bracket.

  Fig 4: Identifying Bolts For Removing
  Courtesy of SUBARU OF AMERICA, INC.

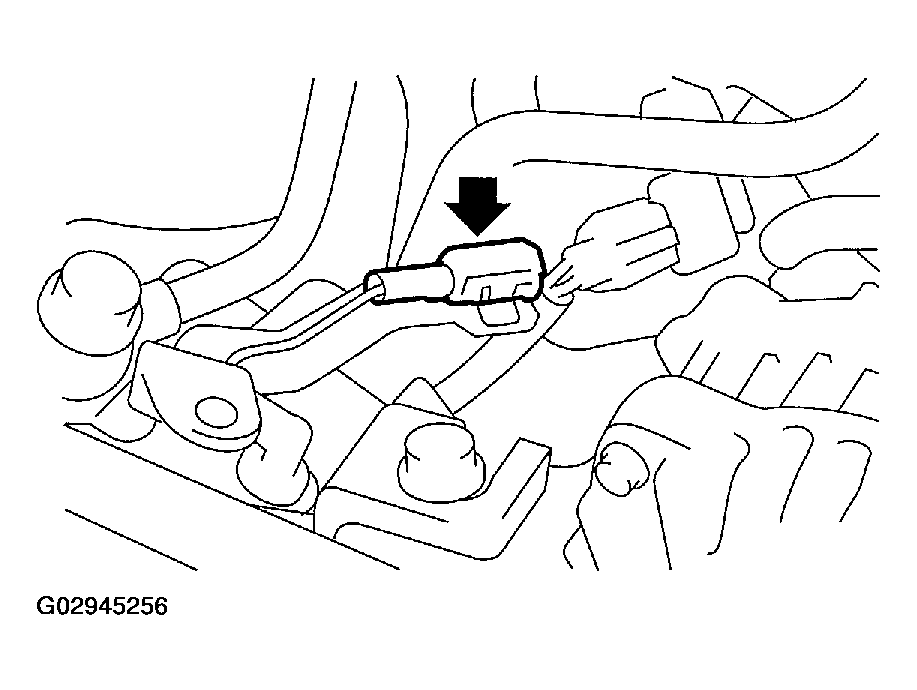

4. Disconnect the connector from the power steering pump switch.

  Fig 5: Disconnecting Connector From Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.

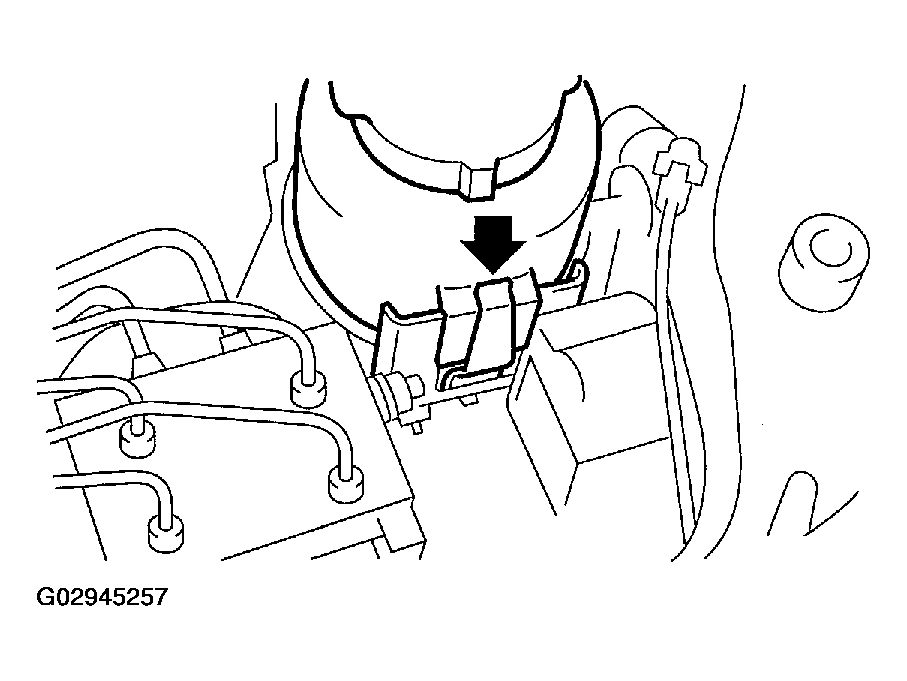

5. Remove the power steering tank from the bracket by pulling it upwards.

  Fig 6: Locating Power Steering Tank Bracket For Removal
  Courtesy of SUBARU OF AMERICA, INC.
6. Place the power steering pump and tank on the right side wheel apron.

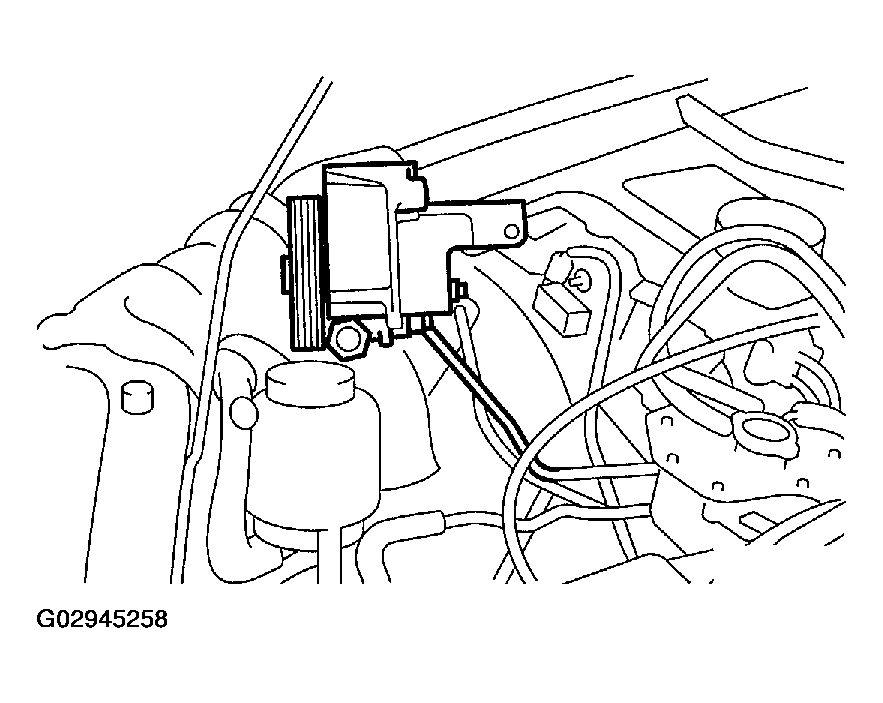

  Fig 7: Placing Power Steering Pump & Tank On Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.

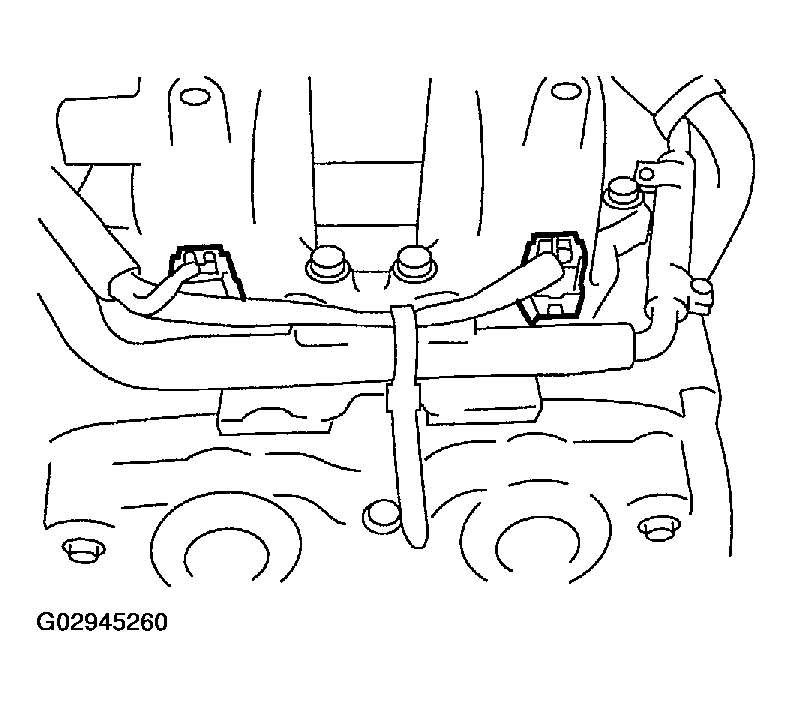

Remove the fuel pipe protector RH.

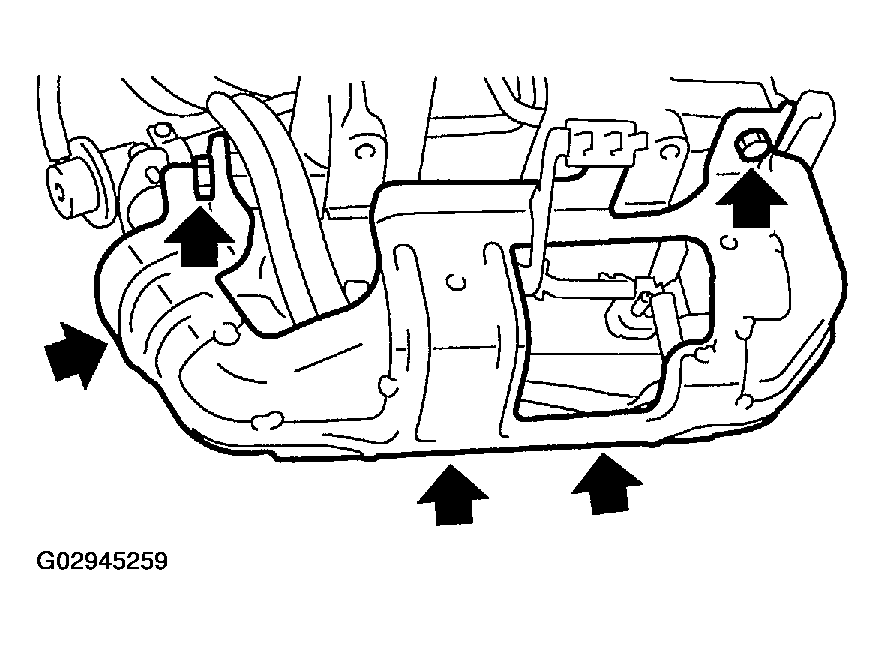

Fig 8: Removing Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel injector.

Fig 9: Identifying Connector For Disconnection
Courtesy of SUBARU OF AMERICA, INC.

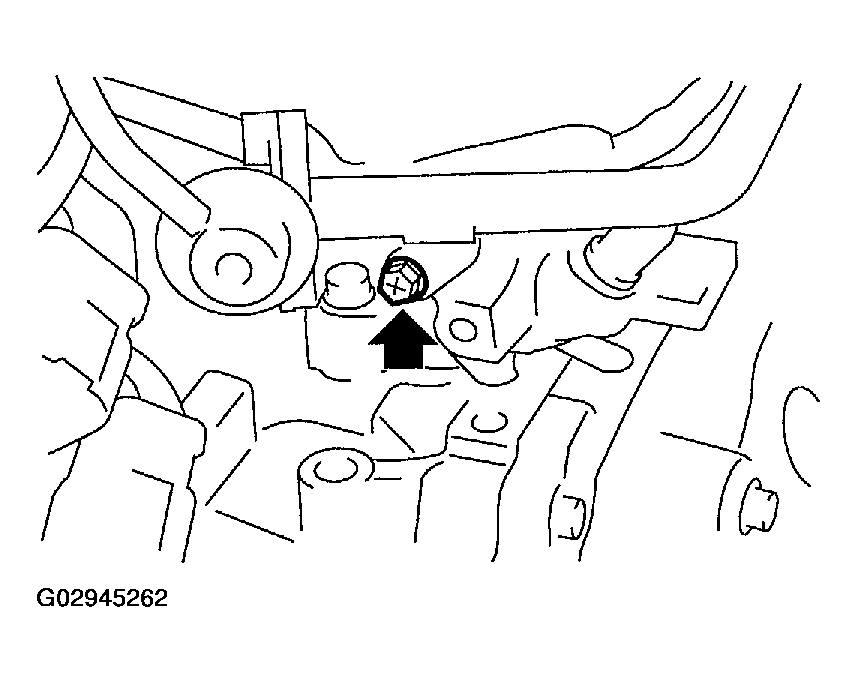

Remove the bolt which holds the injector pipe to the intake manifold.

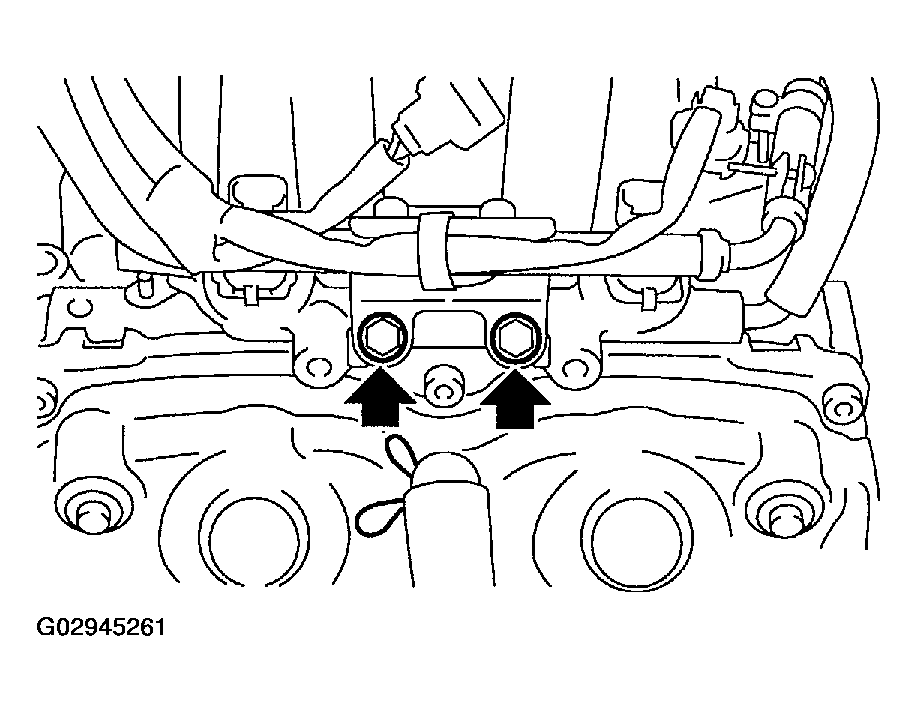

Fig 10: Locating Bolts For Removal
Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Locating Bolts For Removal
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector from the intake manifold.

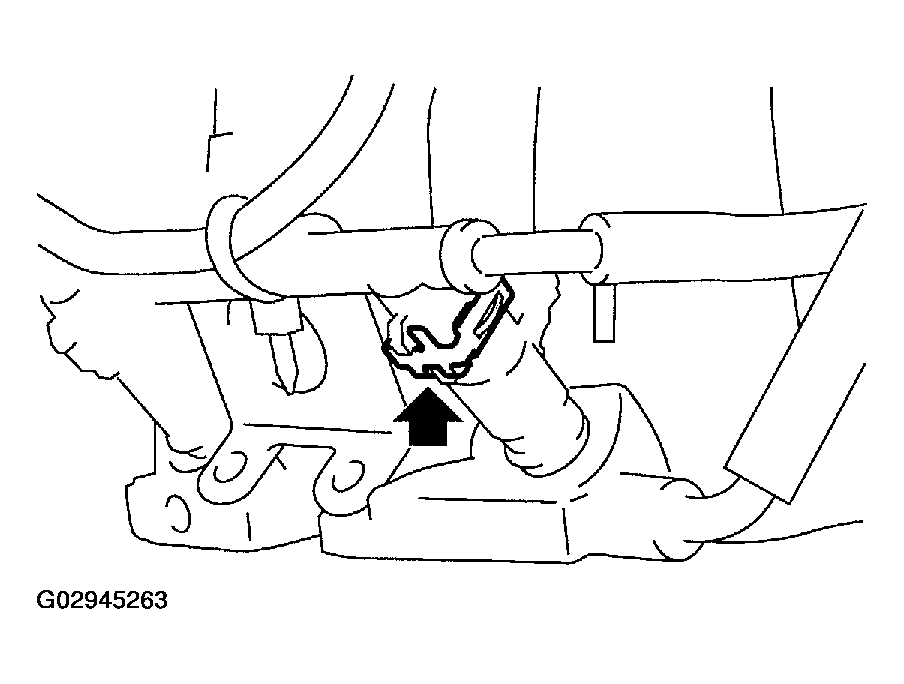

1. Remove the fuel injector securing clip.

  Fig 12: Locating Fuel Injector Securing Clip For Removal
  Courtesy of SUBARU OF AMERICA, INC.

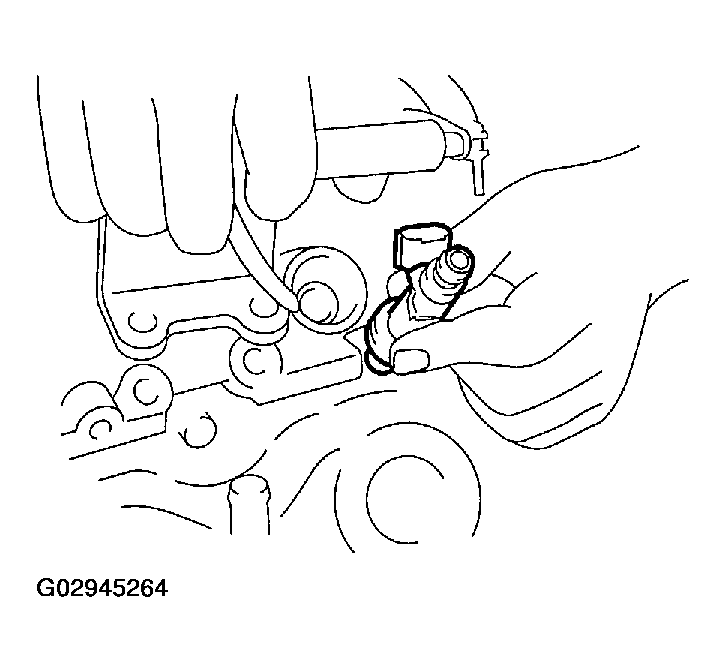

2. Remove the fuel injector while lifting up the fuel injector pipe.
Fig 13: Removing Fuel Injector While Lifting Up Fuel Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.
