Fuel Pump Relay: Removal

Disconnect the ground cable from battery.

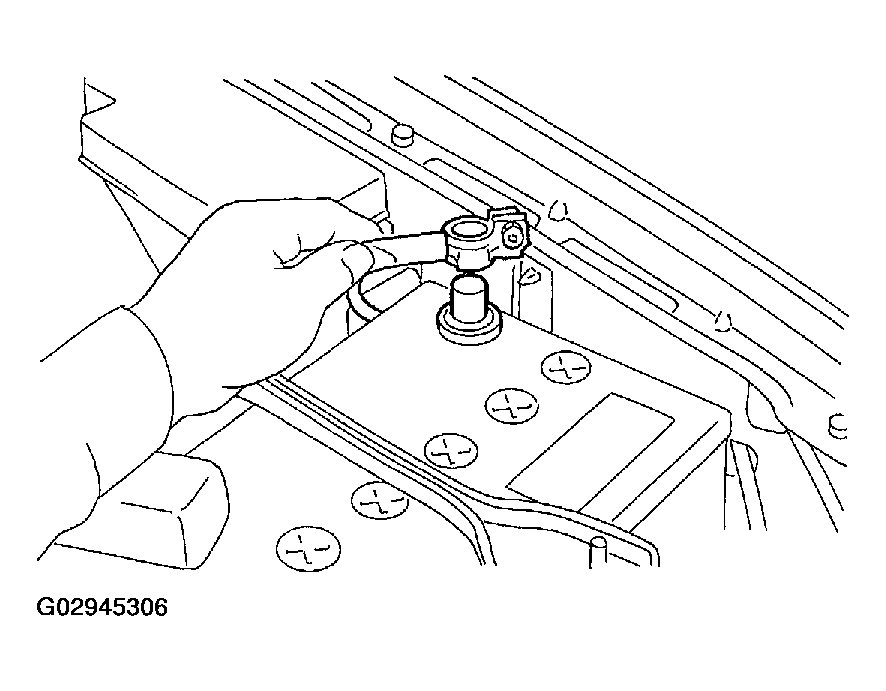

Fig 1: Disconnecting Ground Cable Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the passenger's side front side sill cover.
Remove the bolt which holds fuel pump relay bracket on the body.
Disconnect the connector from the fuel pump.

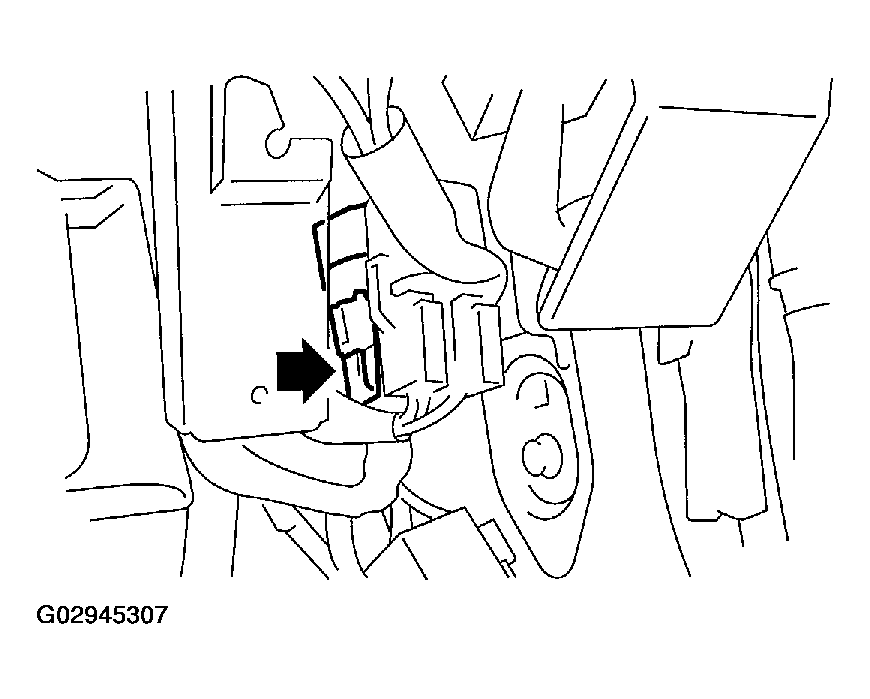

Fig 2: Locating Connector Position For Disconnection
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pump relay from the mounting bracket.
