Idle Air Control Solenoid Valve: Removal

Disconnect the ground cable from battery.

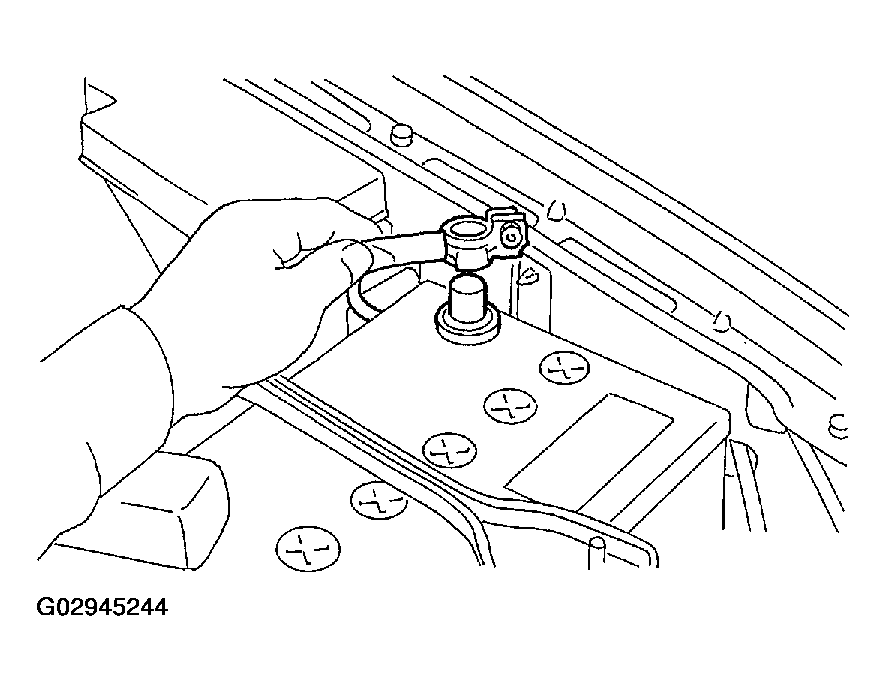

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the idle air control solenoid valve.

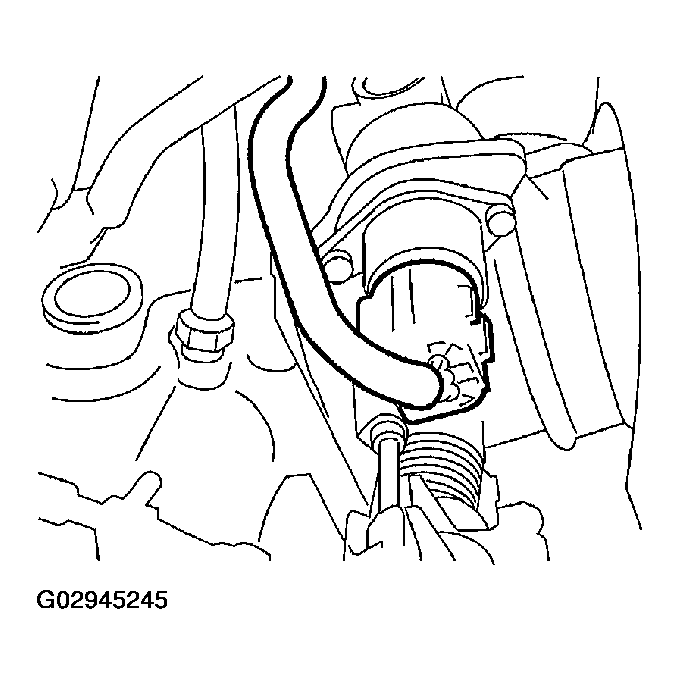

Fig 2: Identifying Connector For Disconnection
Courtesy of SUBARU OF AMERICA, INC.
Remove the idle air control solenoid valve from the throttle body.

Fig 3: Locating Screws For Removing Idle Air Control Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
