Gear Shift Lever

The manual transmission's gear shift lever system is a parallel link type whose stay is mounted through a cushion rubber.

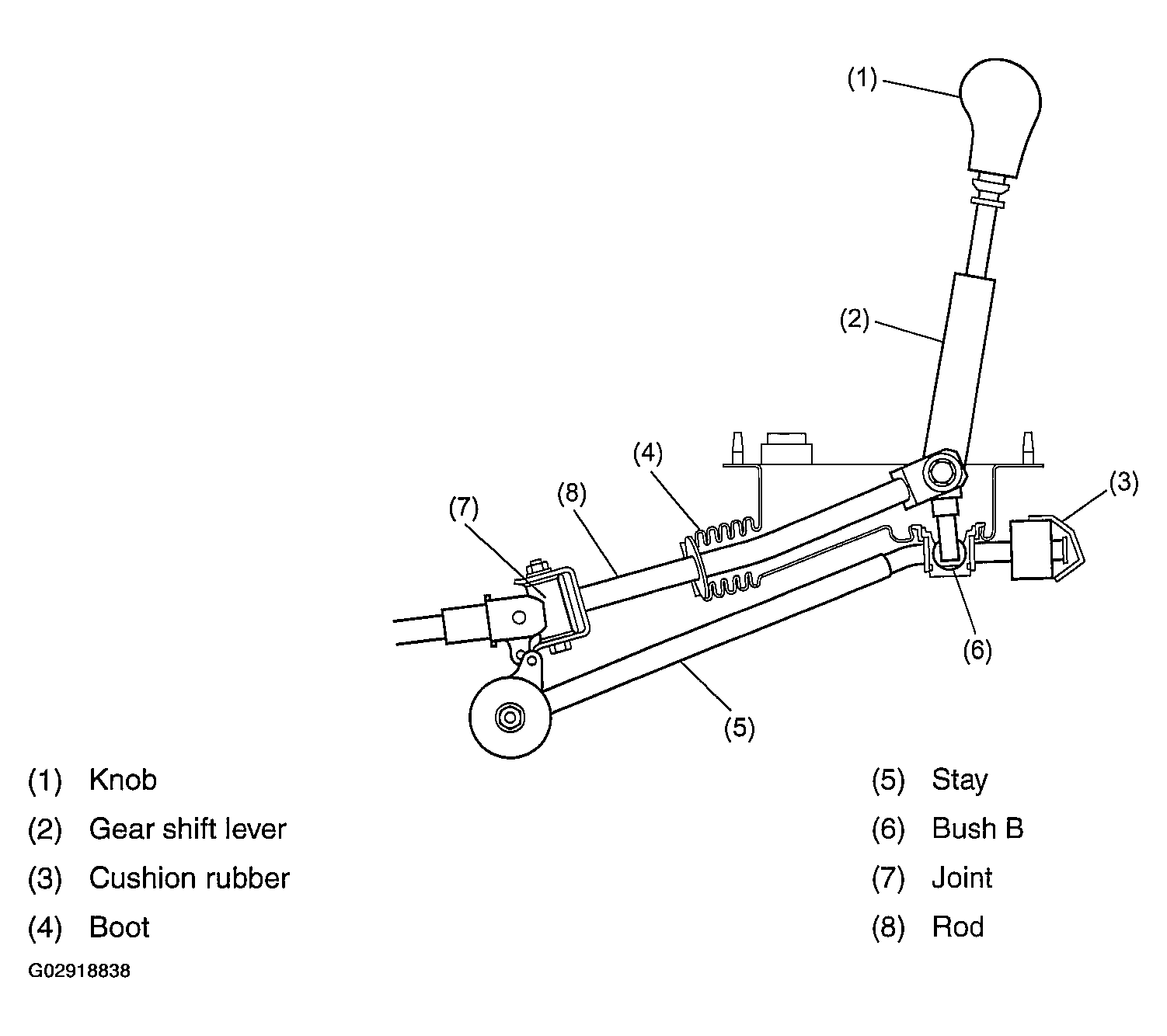

Fig 1: Parts Of Gear Shift Lever System
G02918838Courtesy of SUBARU OF AMERICA, INC.
