Air Assist Injector Solenoid Valve: Removal

  1. Disconnect the ground cable from battery.

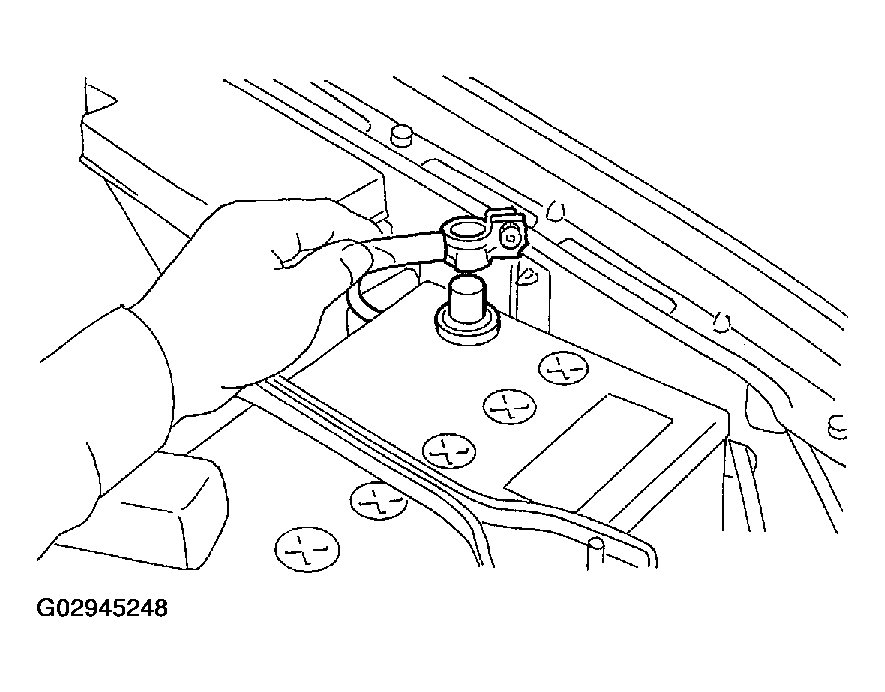

    Fig 1: Disconnecting Ground Cable From Battery
    G02945248Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the air assist injector solenoid valve and disconnect the air by-pass hoses.

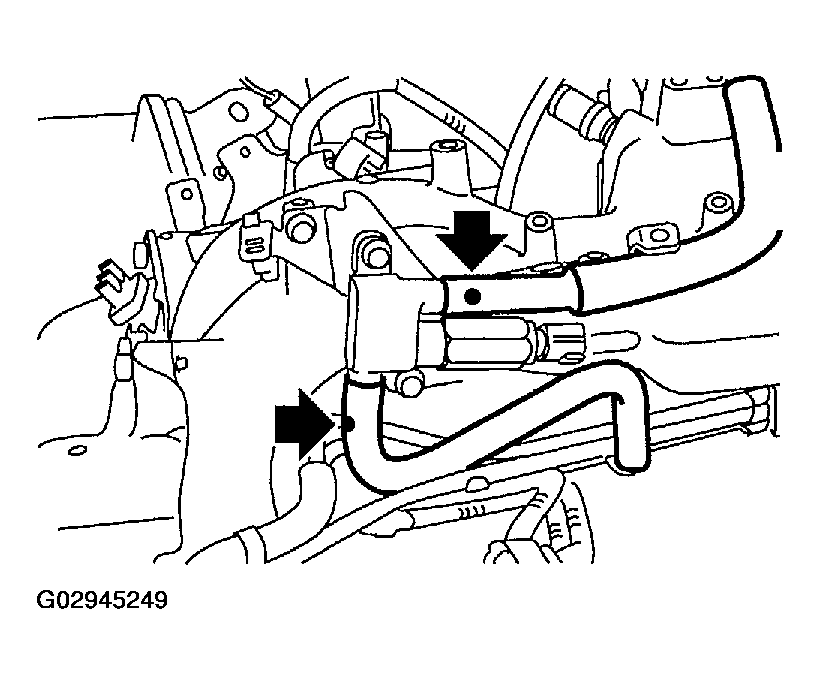

    Fig 2: Locating Air By-Pass Hoses For Disconnection
    G02945249Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air assist injector solenoid valve from the intake manifold.
    Fig 3: Locating Screws For Removing Air Assist Injector Solenoid Valve
    G02945250Courtesy of SUBARU OF AMERICA, INC.
