Fuel Cut Valve: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
  1. Remove the fuel tank. Refer to REMOVAL , Fuel Tank.
  2. Remove the protect cover.

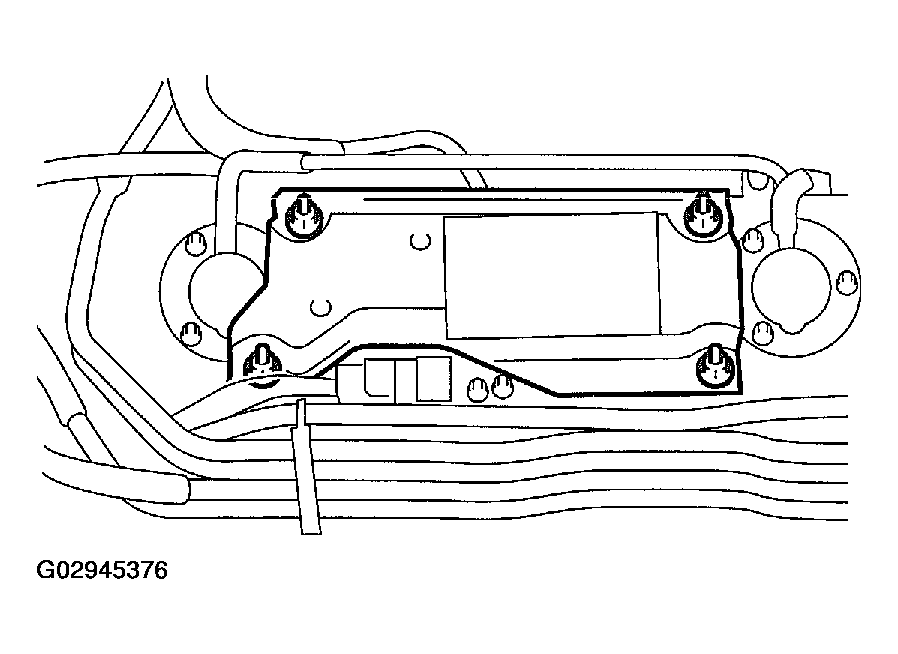

    Fig 1: Identifying Protect Cover For removal
    G02945376Courtesy of SUBARU OF AMERICA, INC.
  3. Move the clip and disconnect the evaporation hose from the fuel cut valve.

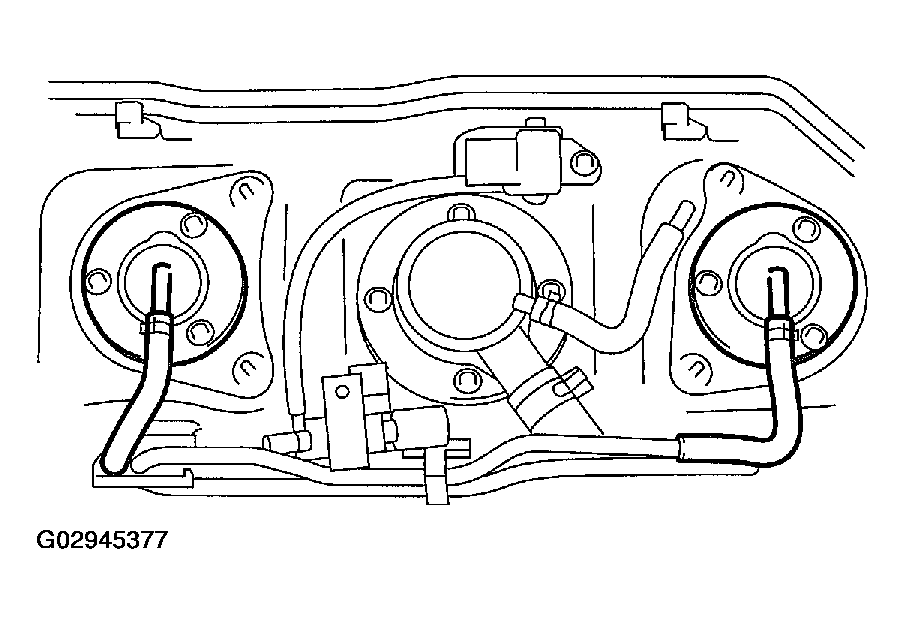

    Fig 2: Disconnecting Evaporation Hose From Fuel Cut Valve
    G02945377Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts which install the fuel cut valve.
