Pressure Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

1.6 N.m (0.16 kgf-m, 1.2 ft-lb)

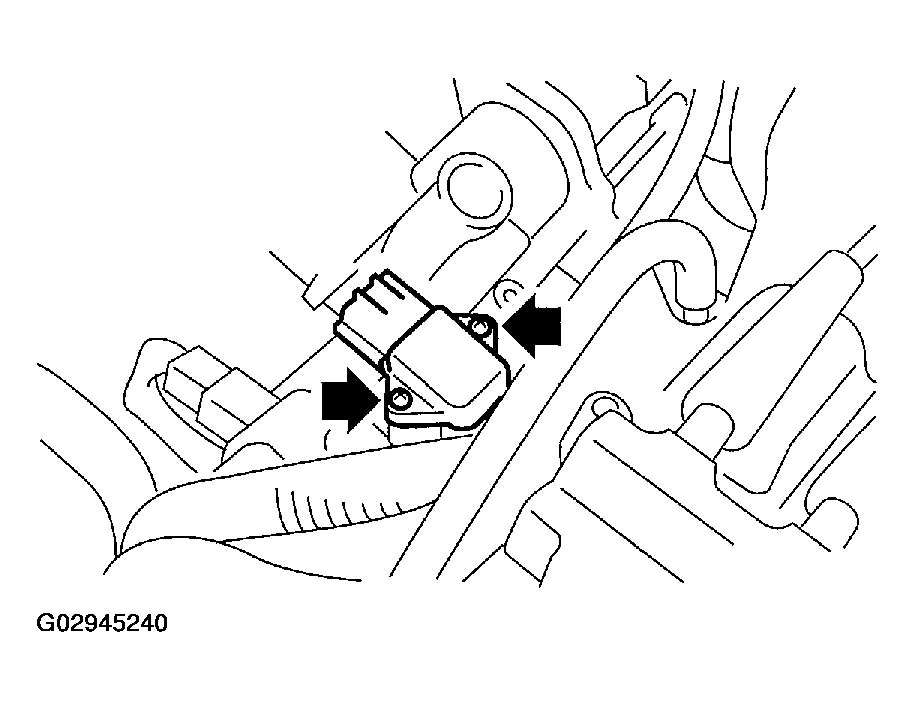

Fig 1: Locating Screws For Tightening

G02945240

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Replace the O-ring with a new one.

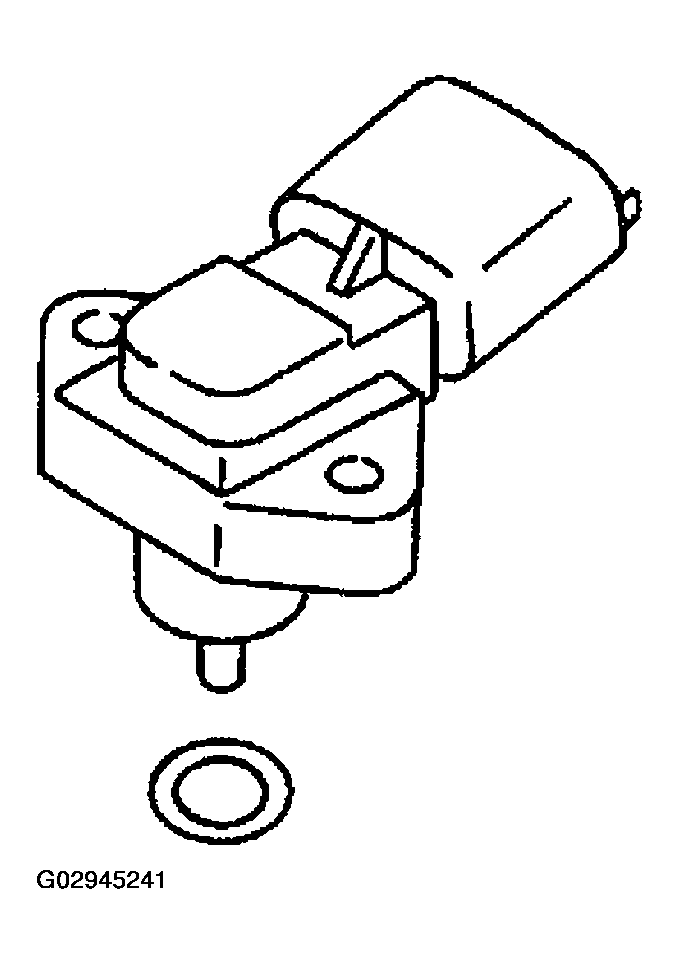

Fig 2: Replacing O-Ring With New One

G02945241

Courtesy of SUBARU OF AMERICA, INC.
