Main Switch

Measure the switch resistance.

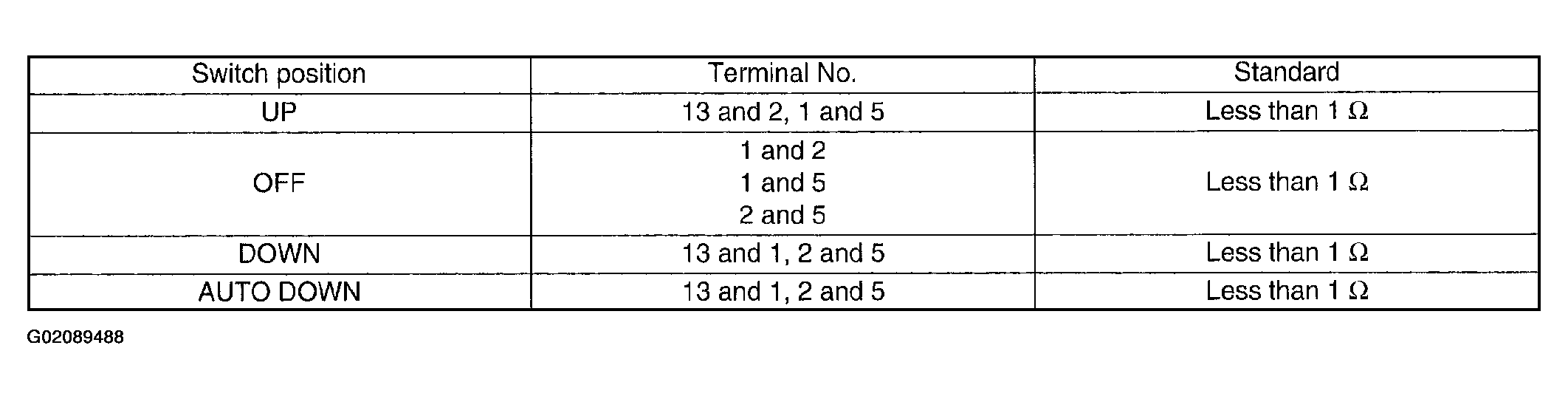

Fig 1: Measuring Switch Resistance Chart (Driver's Switch)

Courtesy of SUBARU OF AMERICA, INC.

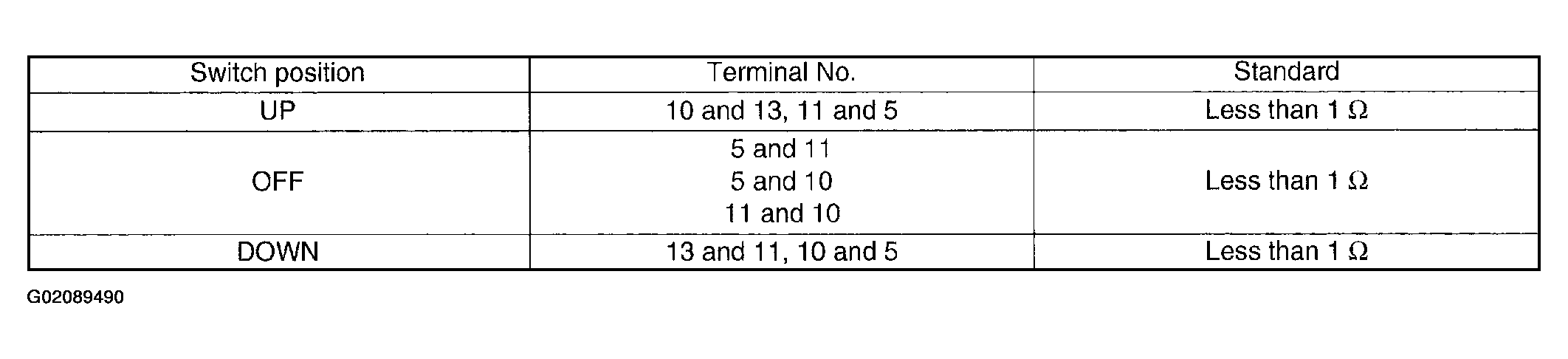

Fig 2: Measuring Switch Resistance Chart (Front Passenger's Switch)

Courtesy of SUBARU OF AMERICA, INC.

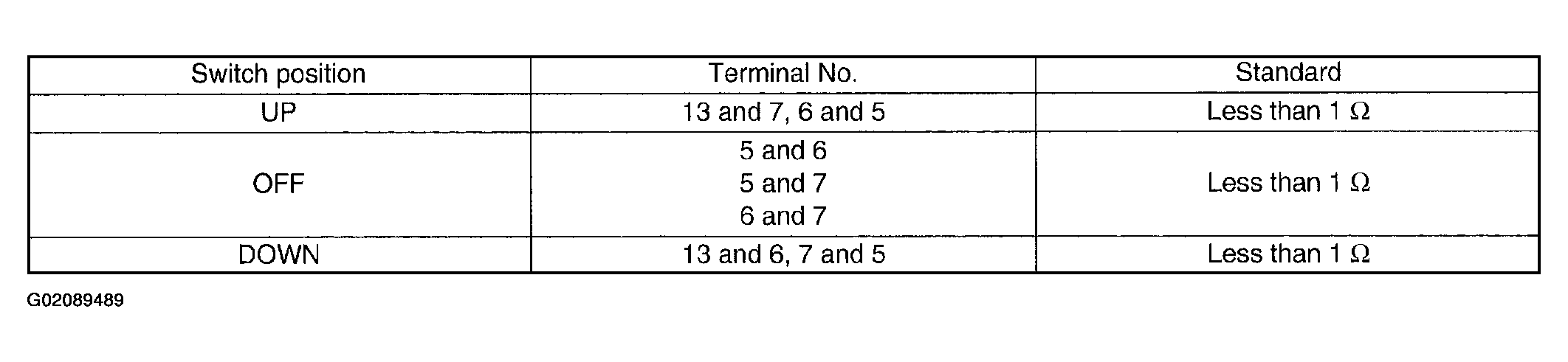

Fig 3: Measuring Switch Resistance Chart (Rear Left Switch)

Courtesy of SUBARU OF AMERICA, INC.

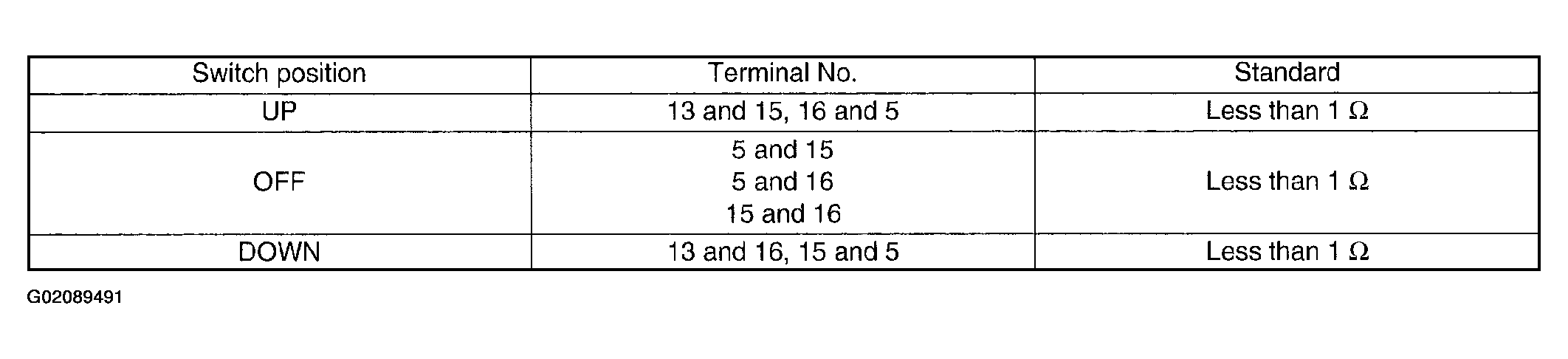

Fig 4: Measuring Switch Resistance Chart (Rear Right Switch)

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the main switch.
