Main Switch

Disconnect the ground cable from battery.
Using a flat tip screwdriver, remove the screw cover.

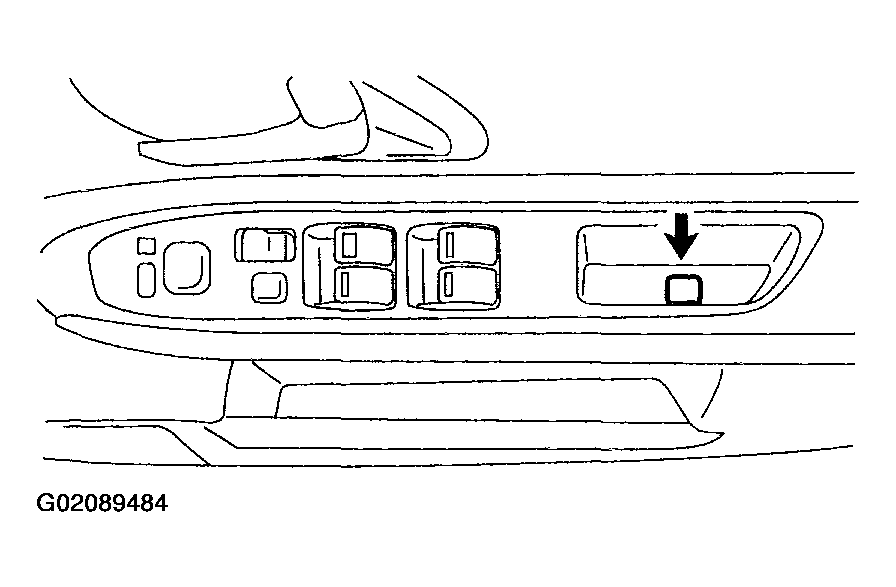

Fig 1: Removing Screw Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screw to remove the power window main switch.

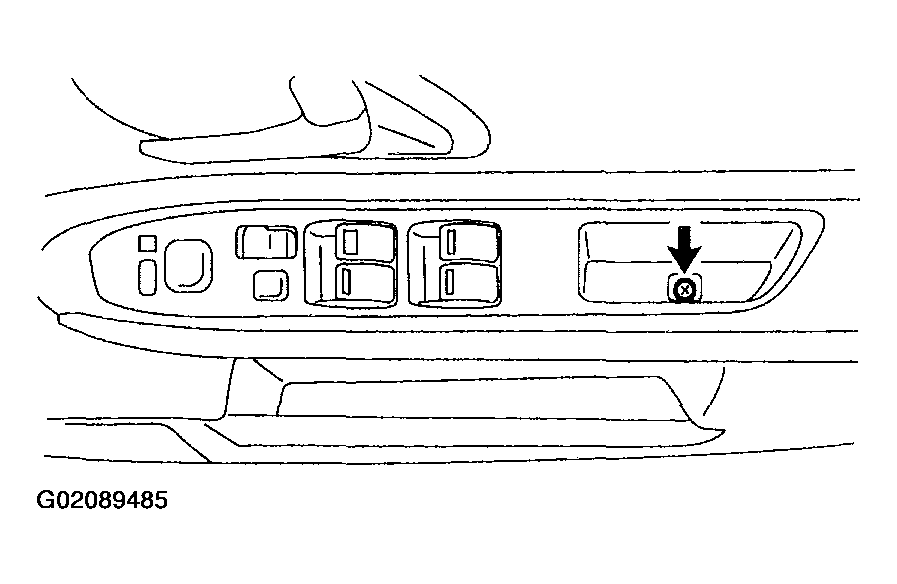

Fig 2: Removing Power Window Main Switch
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector.
