Power Window Control Switch: Removal: Sub-Switch

  1. Disconnect the ground cable from battery.
  2. Remove the screw which secures switch panel.

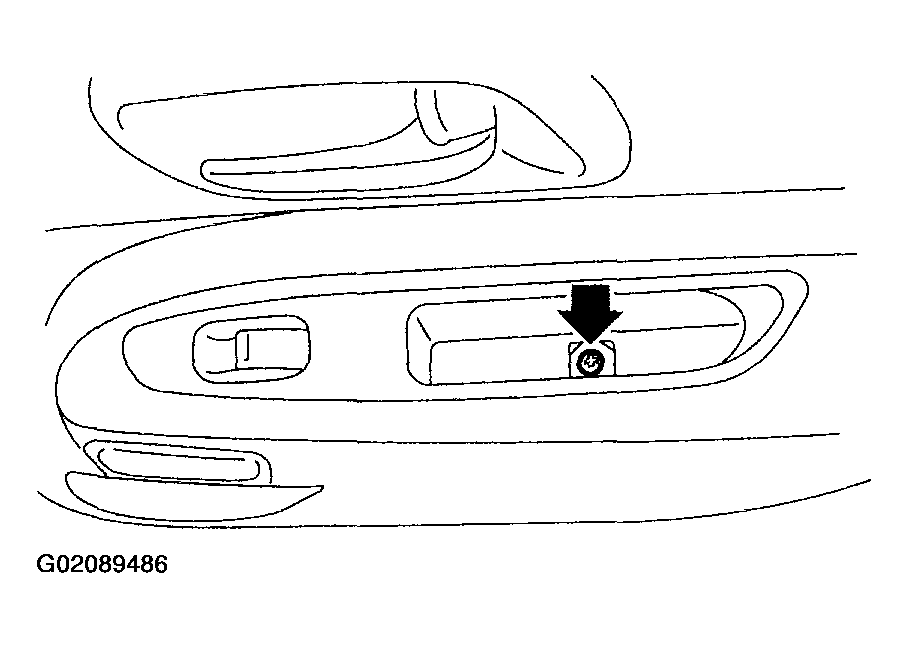

    Fig 1: Removing Switch Panel Screw
    G02089486Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the switch panel.

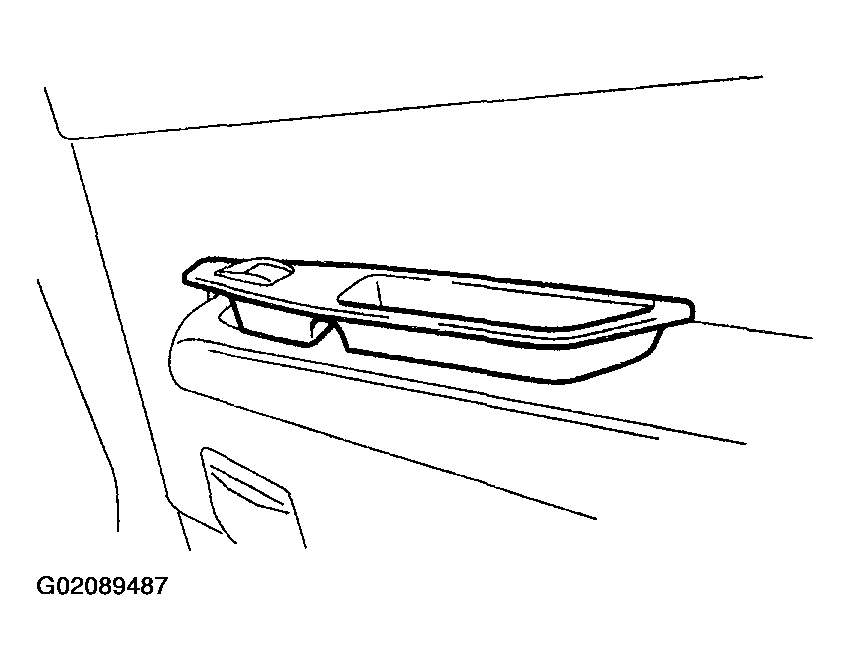

    Fig 2: Removing Switch Panel
    G02089487Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector.
