Remote Control Mirror Switch: Inspection

Move the rearview mirror switch to each position and check continuity between terminals.

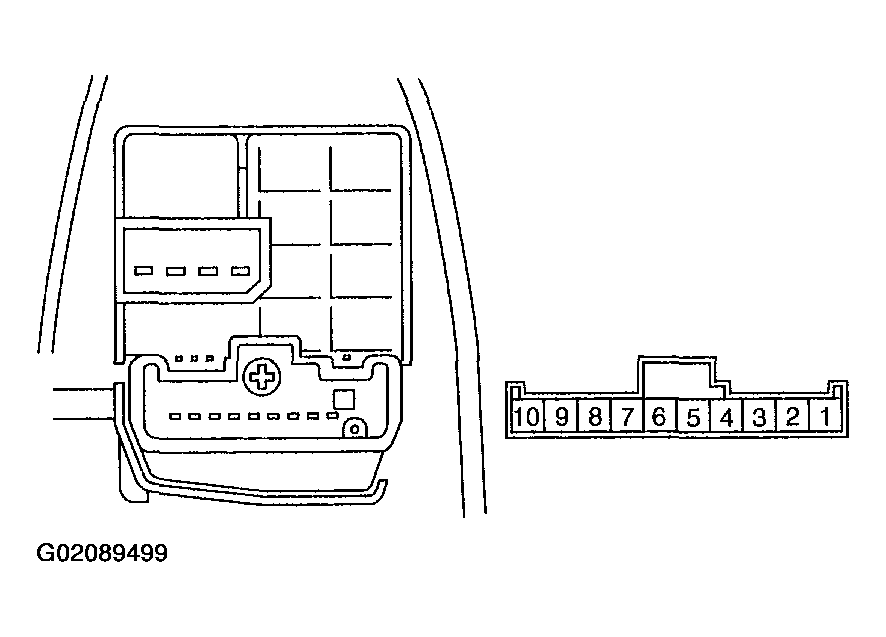

Fig 1: Identifying Terminals Of Remote Control Mirror Switch

Courtesy of SUBARU OF AMERICA, INC.

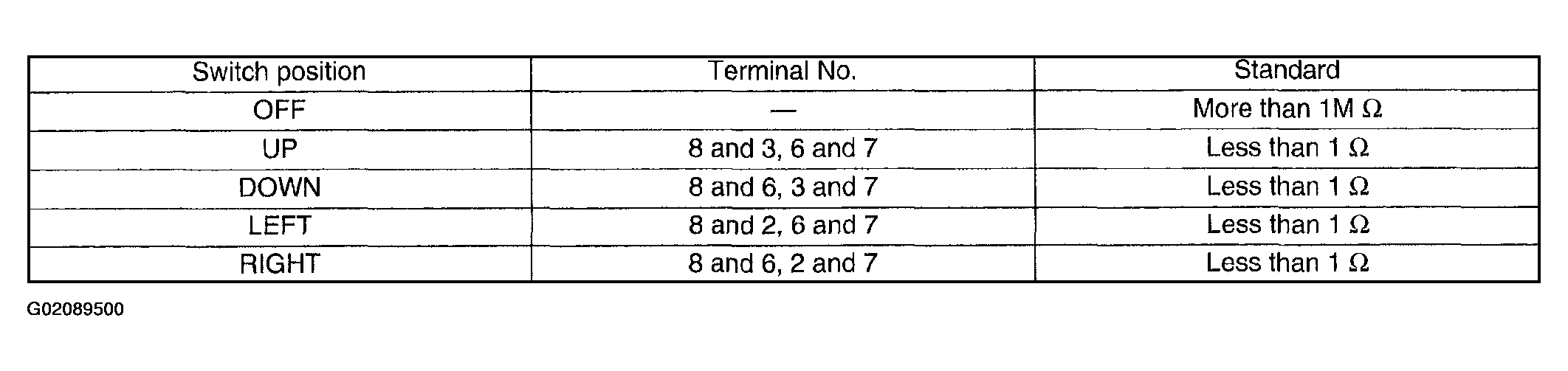

Fig 2: Change Over Switch Right Position Resistance Chart

Courtesy of SUBARU OF AMERICA, INC.

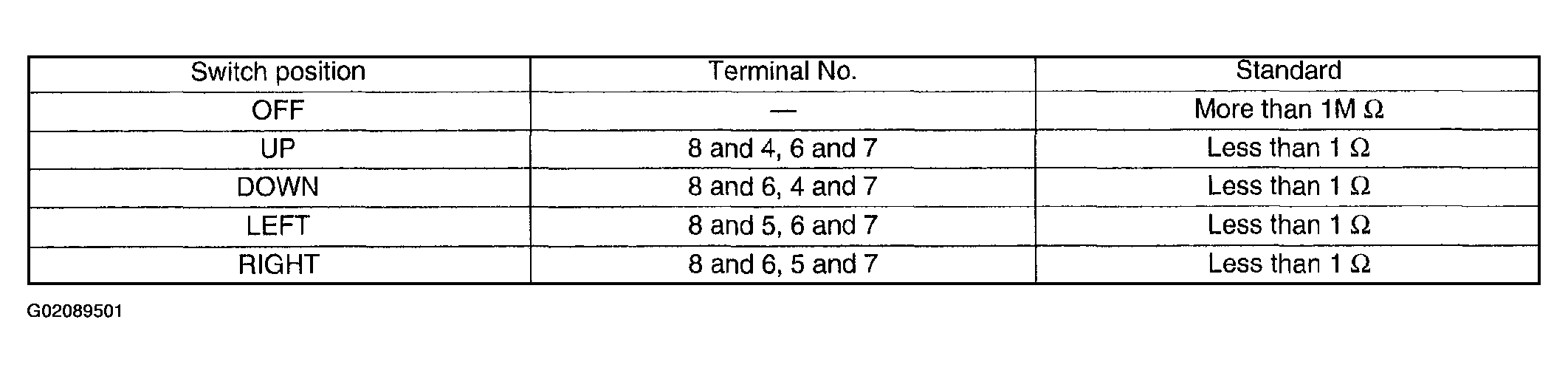

Fig 3: Change Over Switch Left Position Resistance Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the switch.
