Using Piano Wire

  1. Remove the cowl panel. Refer to REMOVAL , Cowl Panel.
  2. Remove the roof molding and upper front molding.
  3. Tape the body side of the circumference of windshield glass for protection.
  4. Make a hole in the adhesive layer using a drill or knife.
  5. Pass the piano wire through the hole, and attach securely both the wire ends to pieces of wood.

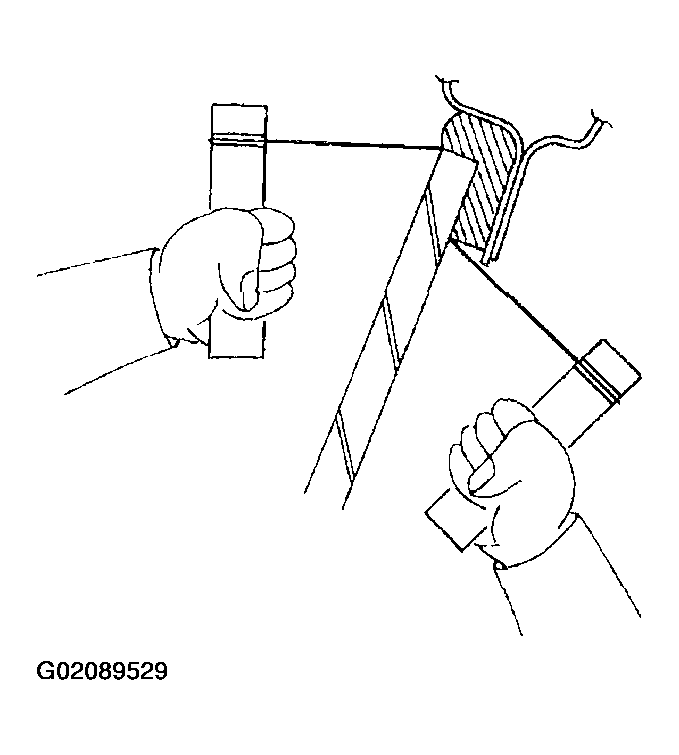

    Fig 1: Attaching Piano Wire Ends To Pieces Of Wood
    G02089529Courtesy of SUBARU OF AMERICA, INC.
  6. Pull the wire ends alternately to cut off the adhesive layer.
