Fuel Damper Valve: Removal

  1. Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
  2. Remove the fuel damper valve from the fuel return line.

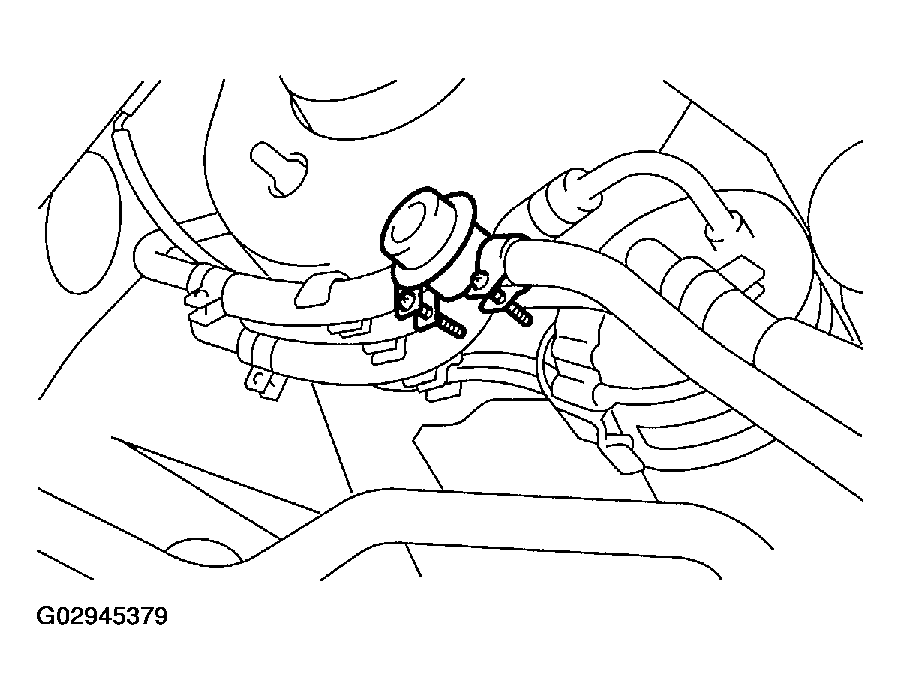

Fig 1: Removing Fuel Damper Valve From Fuel Return Line
G02945379Courtesy of SUBARU OF AMERICA, INC.
