Electrical Specification

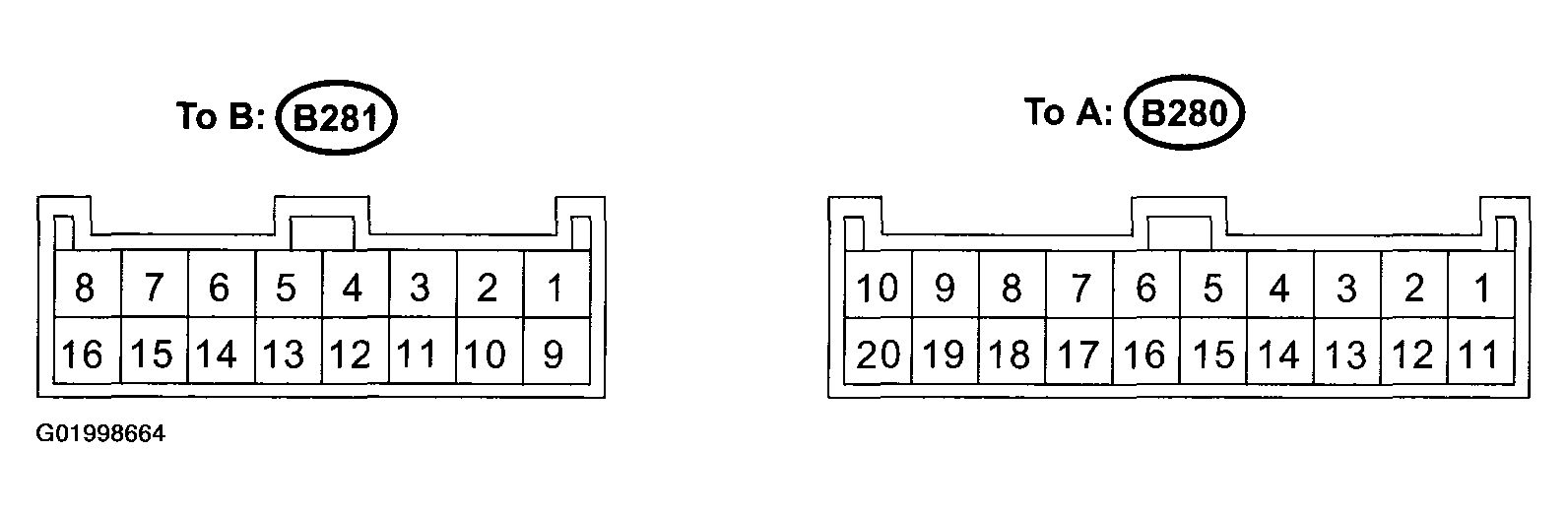

Fig 1: Identifying Electrical Connectors
G01998664Courtesy of SUBARU OF AMERICA, INC.

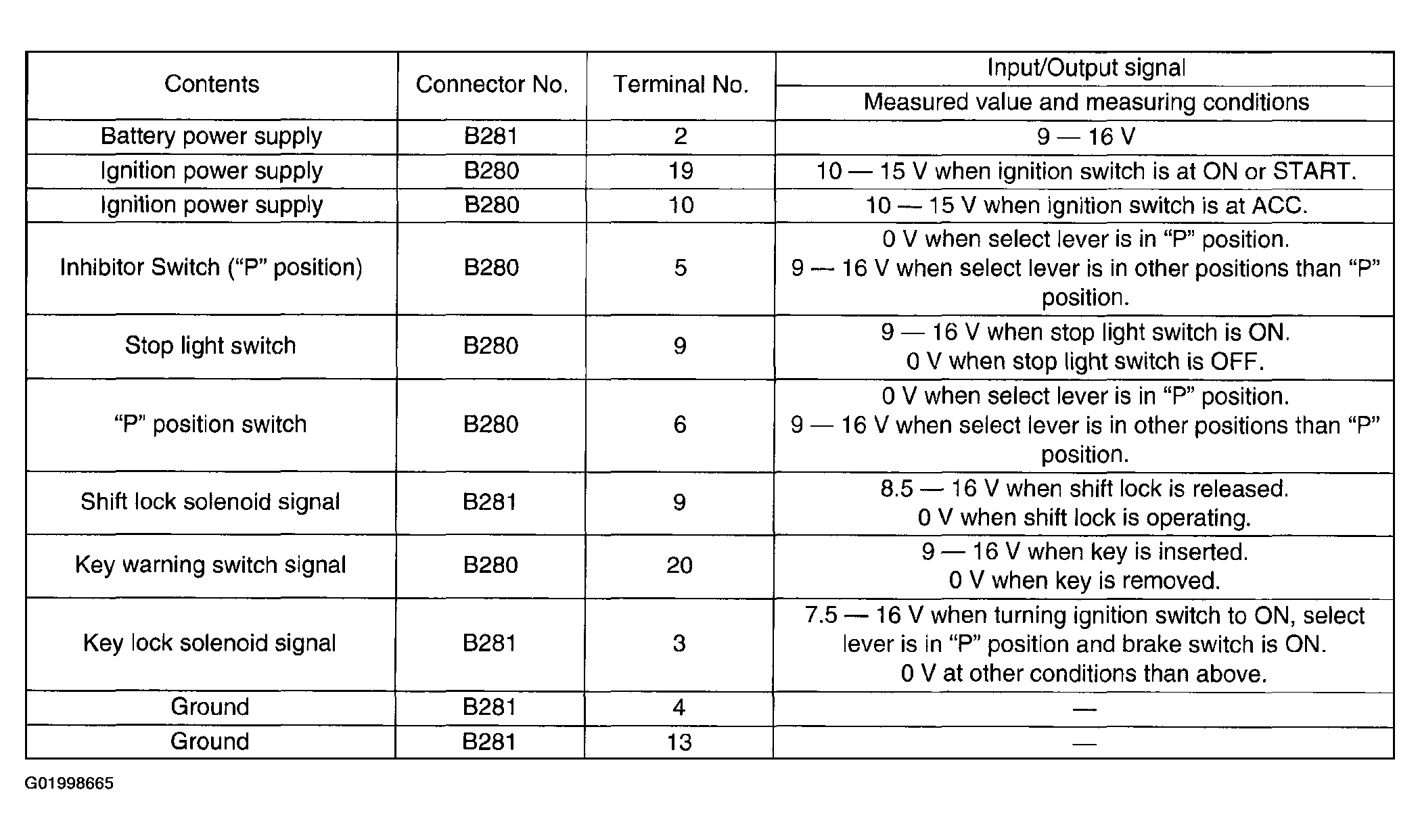

Fig 2: Electrical Specification Identification Chart
G01998665Courtesy of SUBARU OF AMERICA, INC.
