Select Lever: Disassembly

Remove the grip.
Remove the indicator light and then remove the indicator cover.
NOTE: Be careful not to break the indicator light during removal.

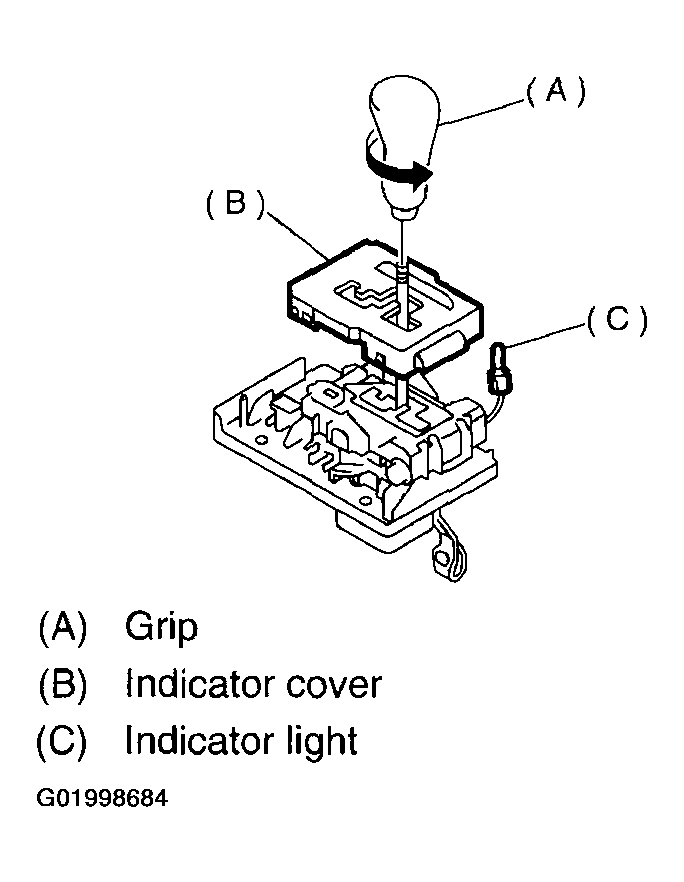

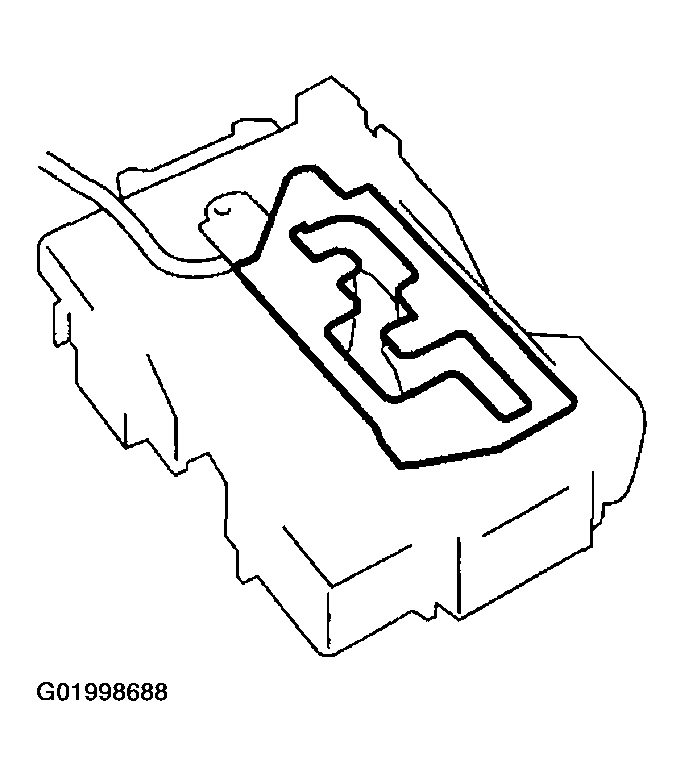

Fig 1: Removing Indicator Light
Courtesy of SUBARU OF AMERICA, INC.
Remove the blind.
Remove the clips and then remove the guide plate.

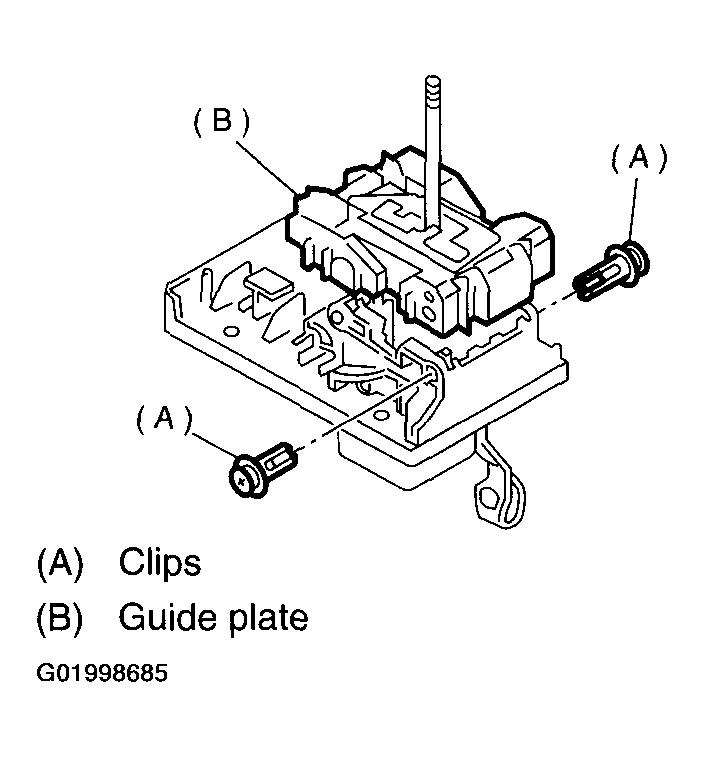

Fig 2: Removing Clips & Guide Plates
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp, and shift lock solenoid.

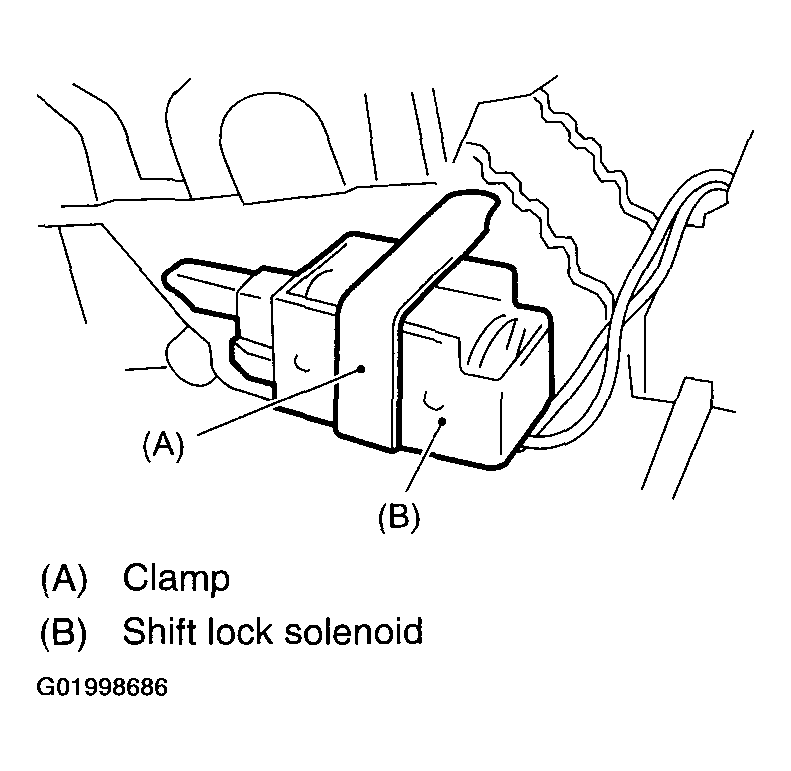

Fig 3: Removing Shift Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.
Remove the lock plate.

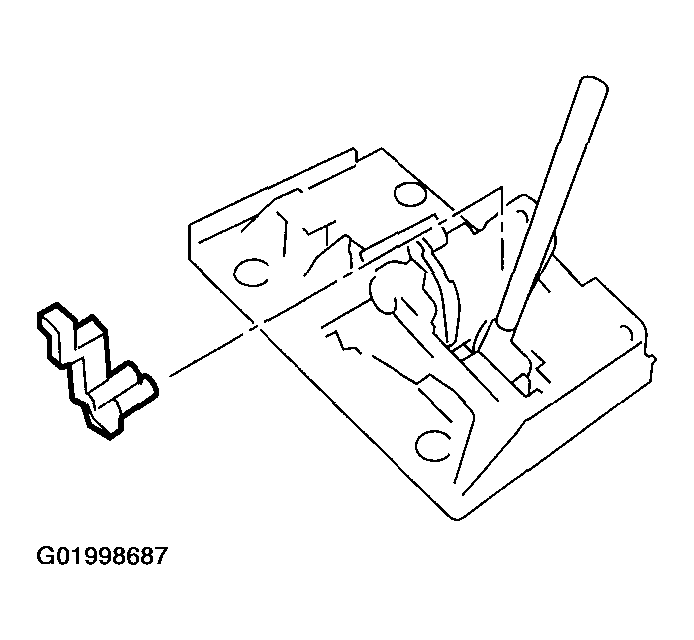

Fig 4: Removing The Lock Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion plate.

Fig 5: Removing Cushion Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip and remove the "P" position switch.

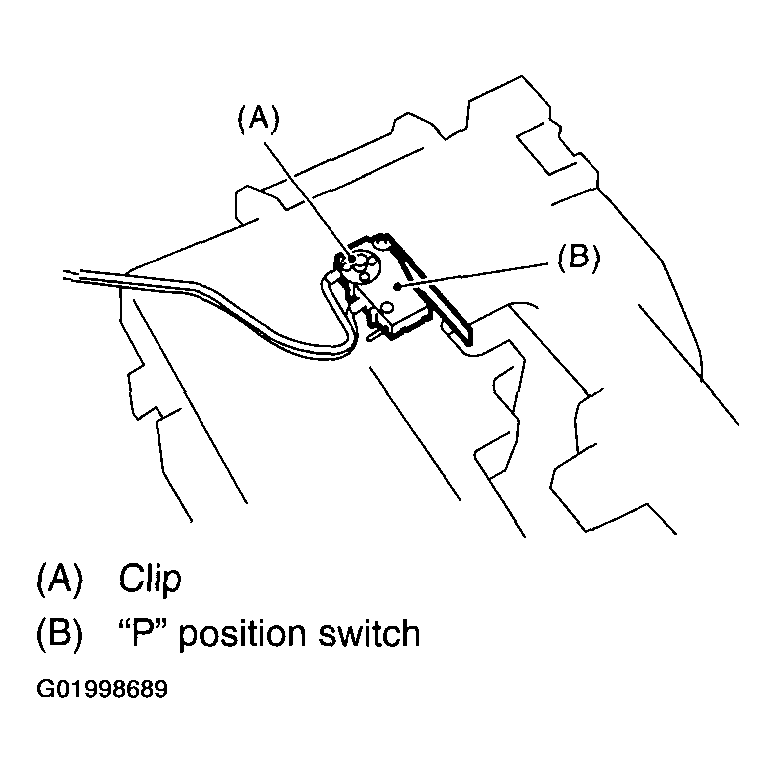

Fig 6: Removing Clip & "P" Position Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove the cap and then extract straight pin.

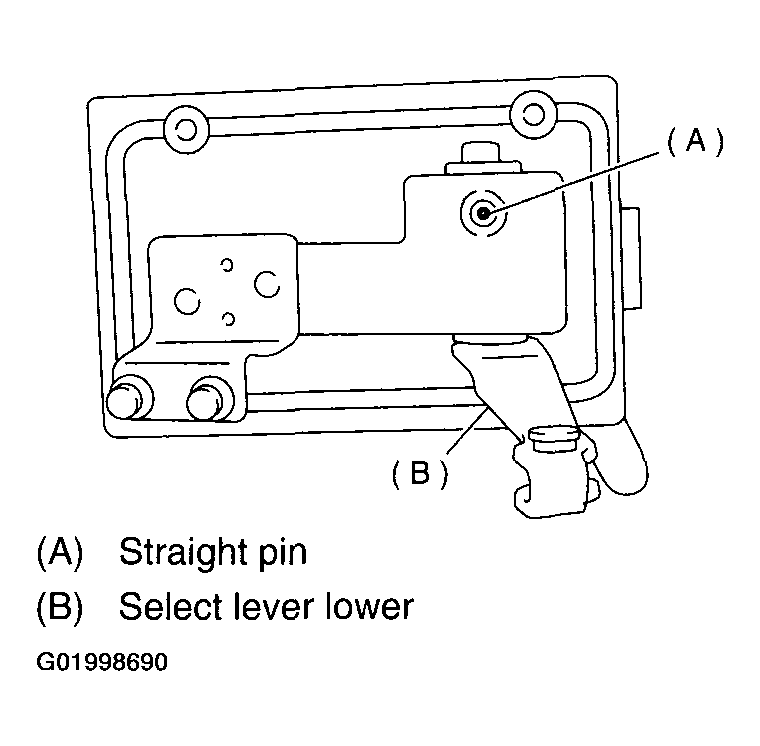

Fig 7: Removing Cap & Extracting Straight Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the select lever lower then take away the select lever upper from plate.

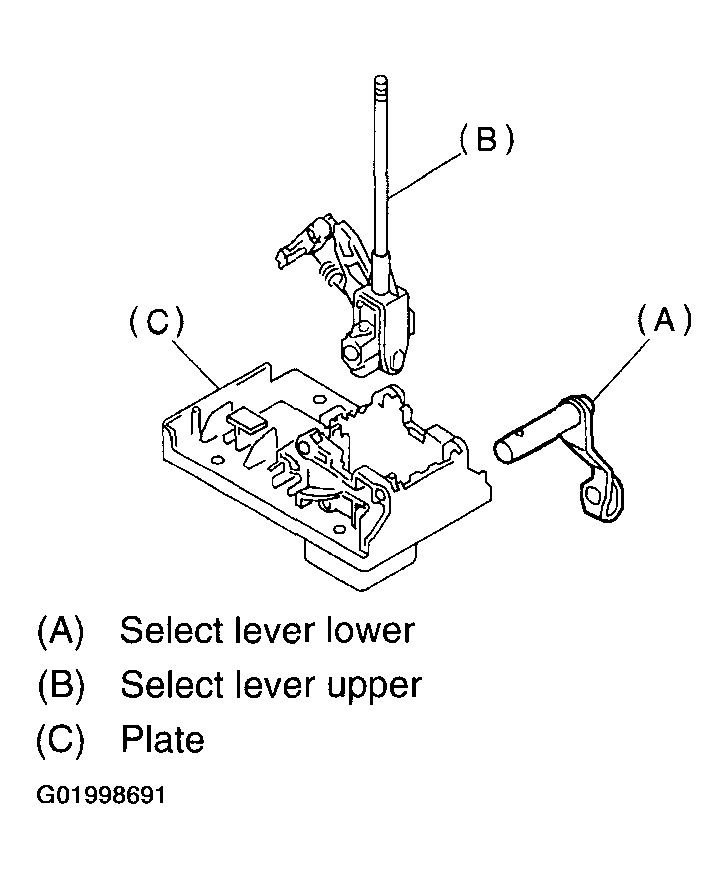

Fig 8: Removing Select Lever Lower & Taking Away Select Lever Upper
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring and remove the detent arm.

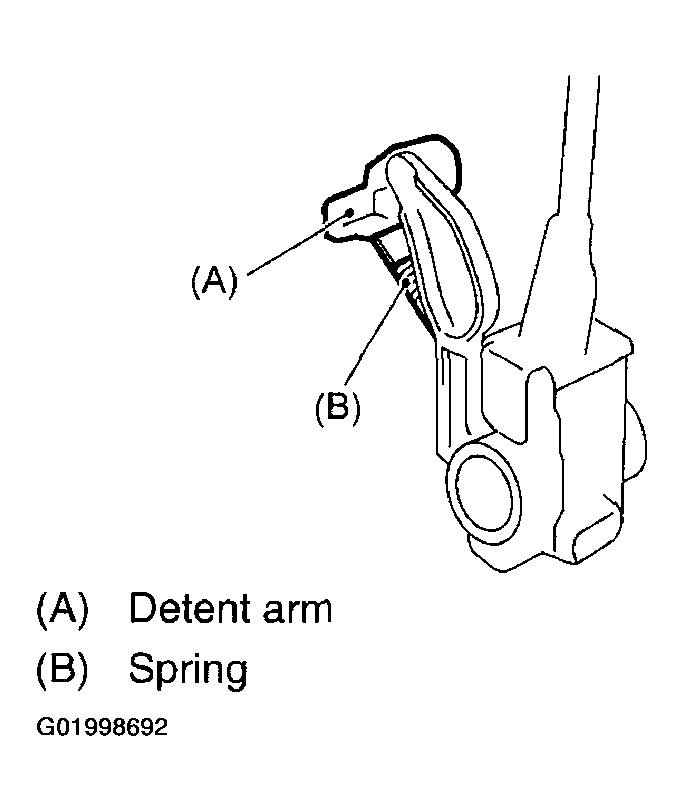

Fig 9: Removing Spring & Detent Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion.
