Camshaft Position Sensor: Removal

Disconnect battery ground cable.

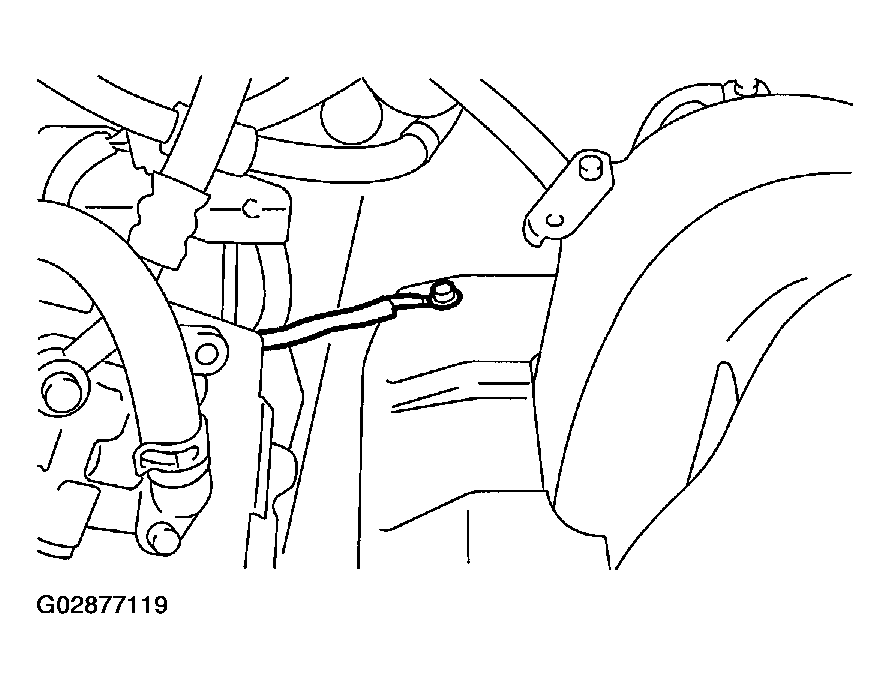

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner.
< Ref. to REMOVAL , Air Cleaner.>
Remove ground cable from fuel pipe protector RH.

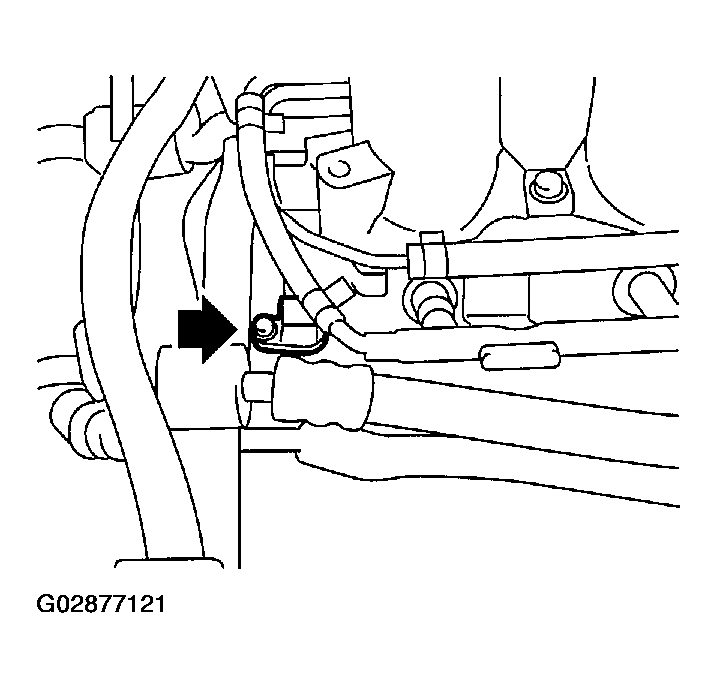

Fig 2: Removing Ground Cable From Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel pipe protector RH.

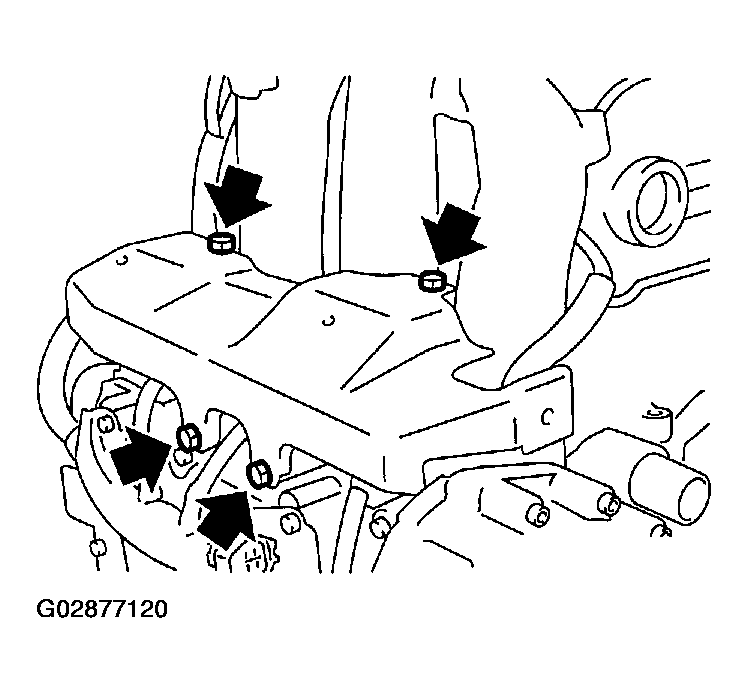

Fig 3: Removing Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from camshaft position sensor.
Remove camshaft position sensor.

Fig 4: Removing Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
