RH Side

Install in the reverse order of removal.

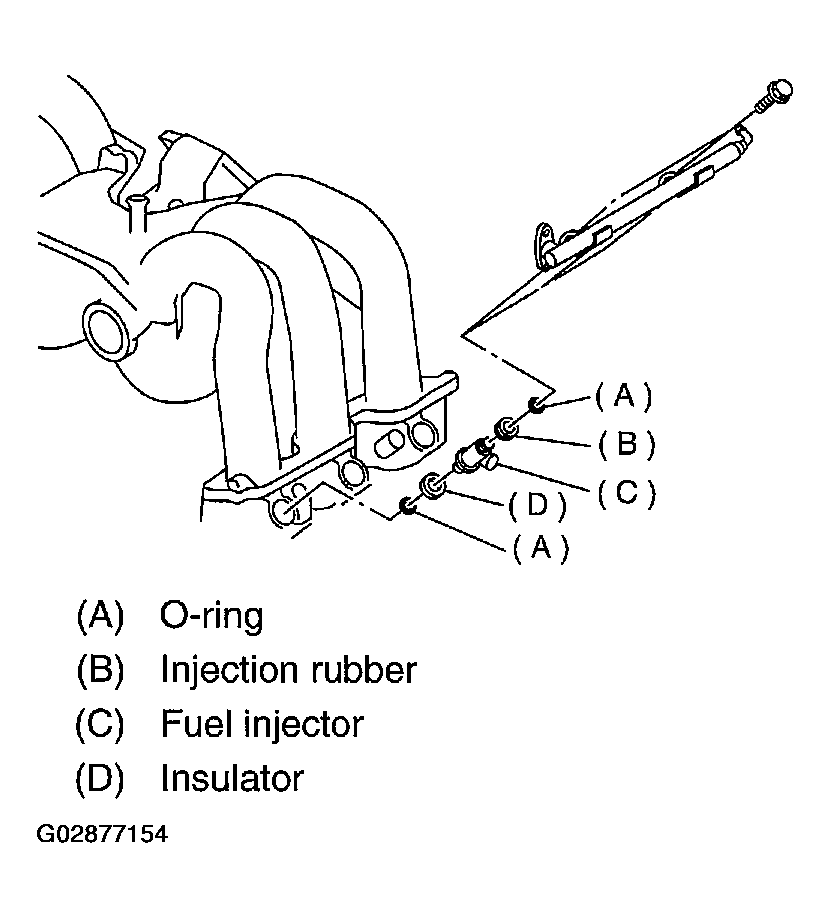

Fig 1: Replacing O-Rings & Insulators

Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  19 N.m (1.9 kgf-m, 14 ft-lb)

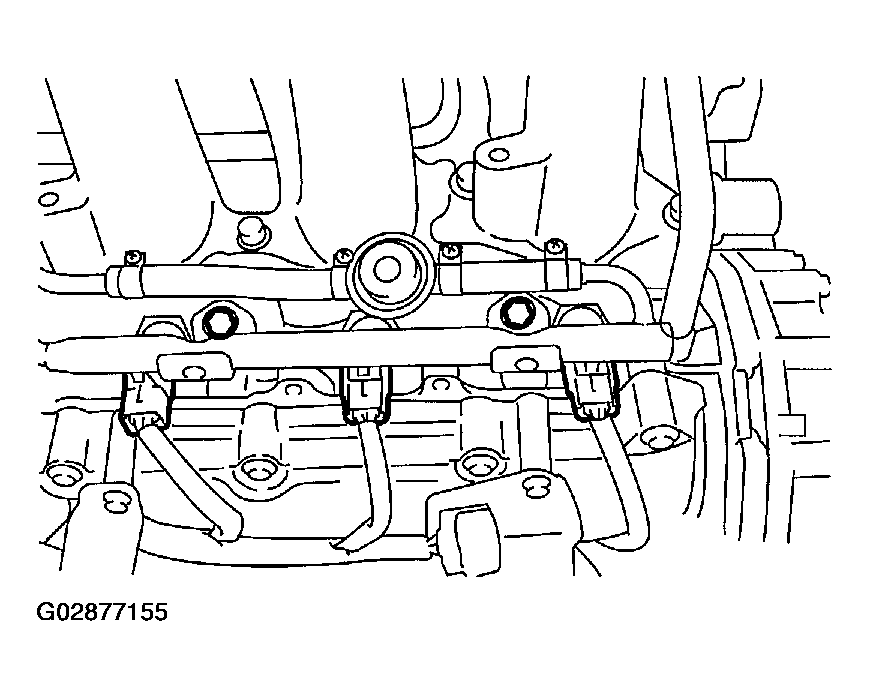

Fig 2: Installing Injector Pipe Bolts

Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  19 N.m (1.9 kgf-m, 14 ft-lb)

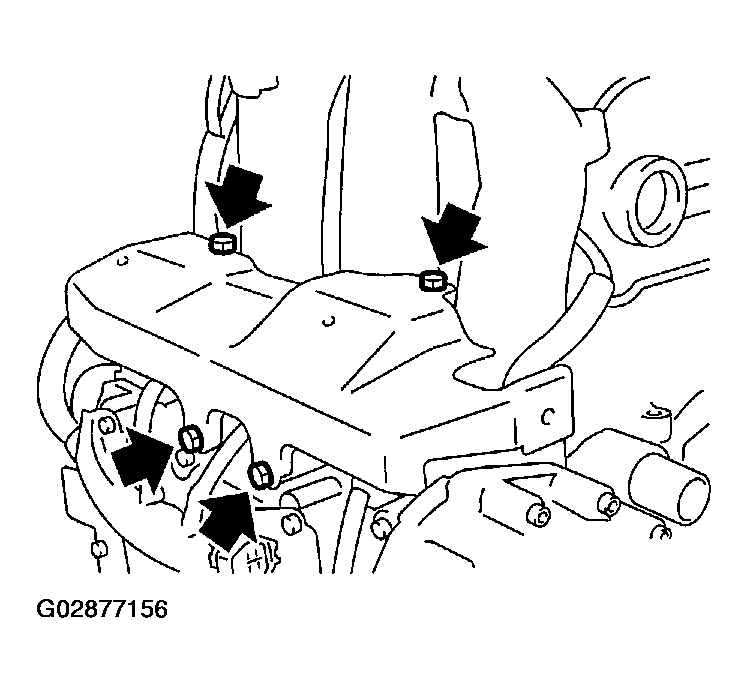

Fig 3: Installing Fuel Pipe Protector LH

Courtesy of SUBARU OF AMERICA, INC.
