Fuel Pump: Disassembly

Remove fuel pump and pump holder.
NOTE: When disassembling pump holder, be careful as it is installed with two pawls.

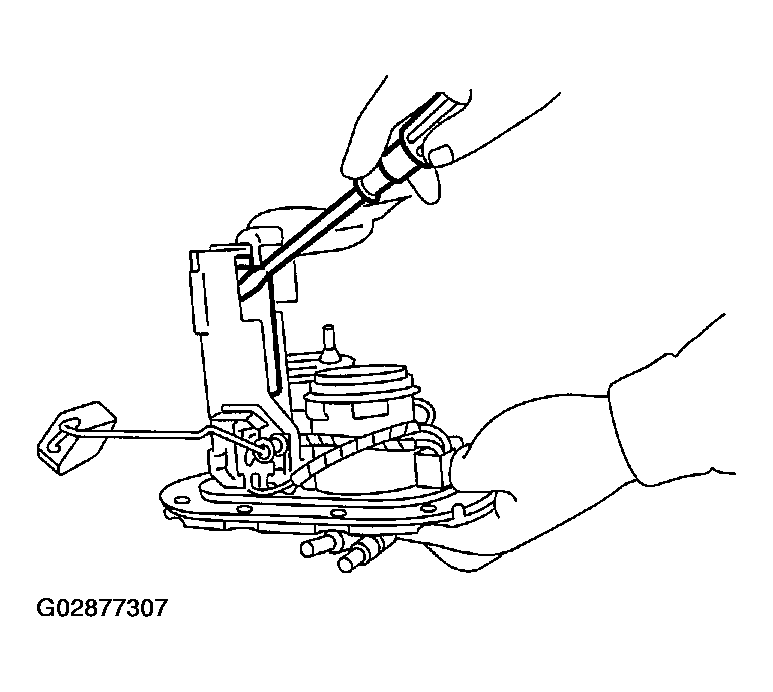

Fig 1: Removing Fuel Pump & Pump Holder
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel pump.

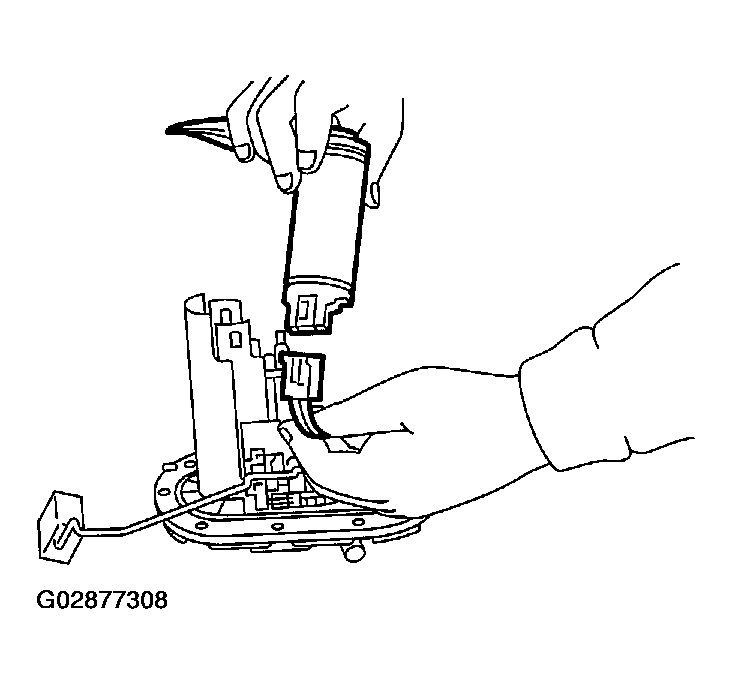

Fig 2: Disconnecting Connector From Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
