Fuel Filler Pipe

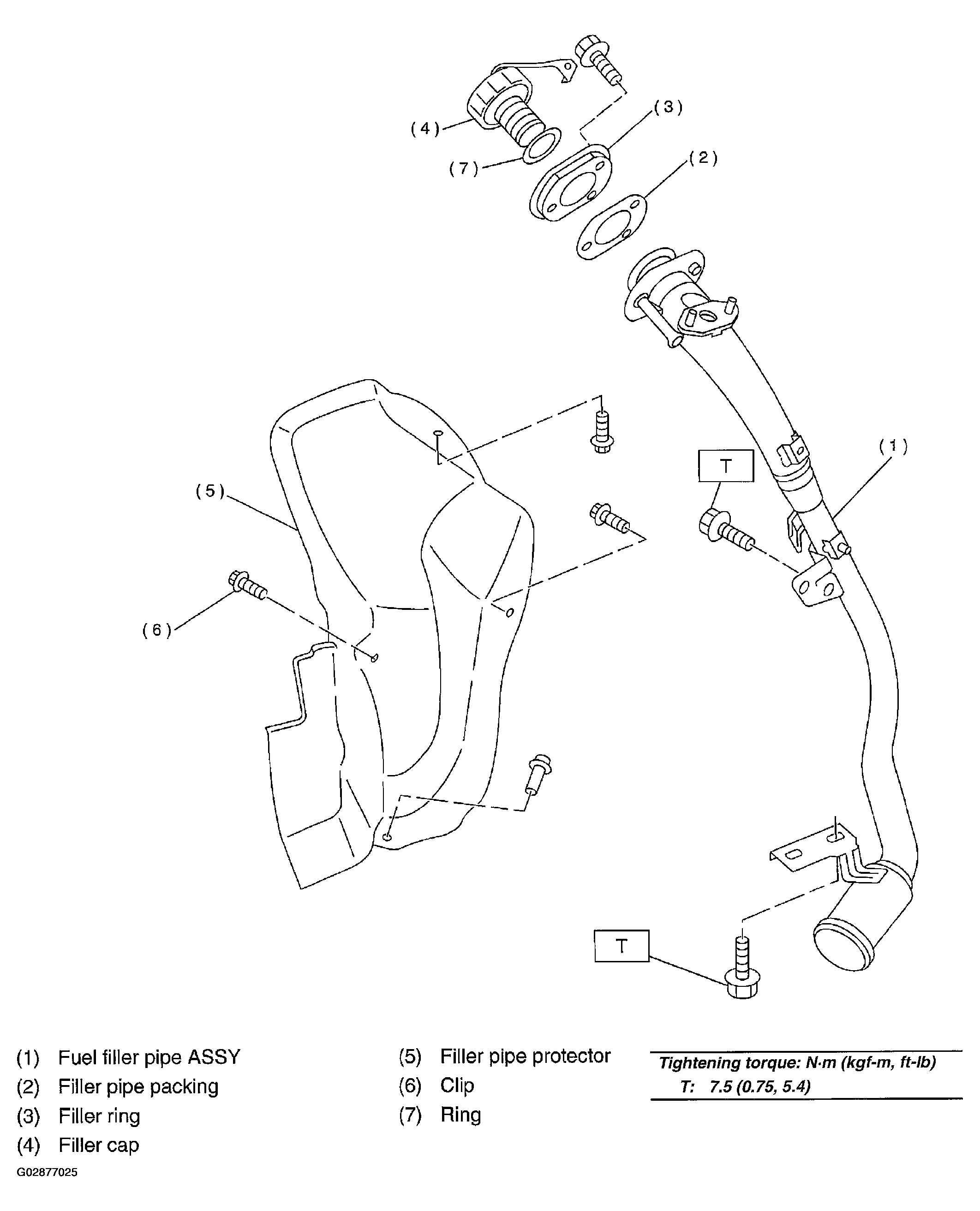

Fig 1: Exploded View Of Fuel Filler Pipe With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
