Idle Air Control Solenoid Valve: Removal

  1. Disconnect battery ground cable.

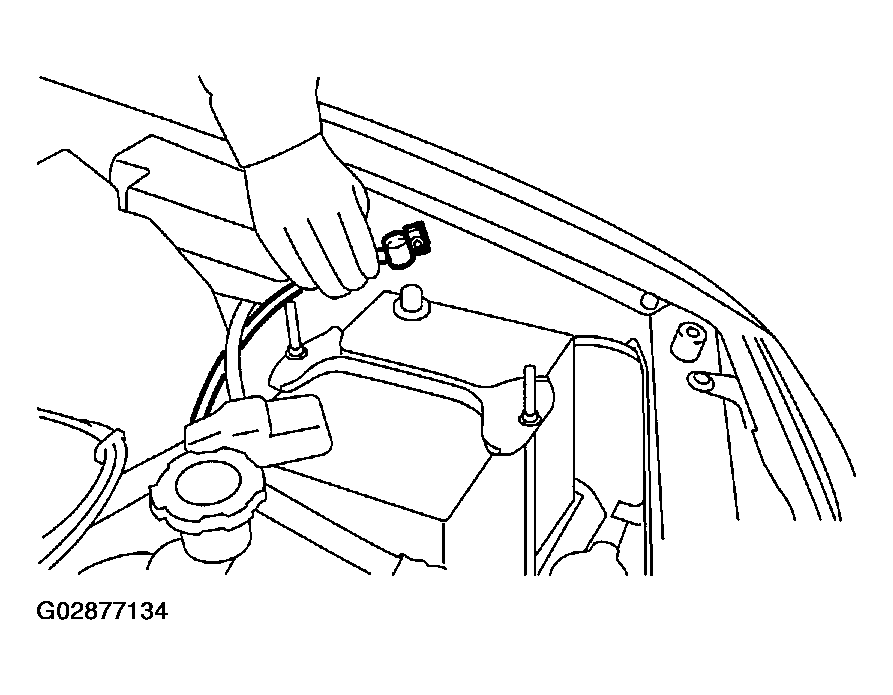

    Fig 1: Disconnecting Battery Ground Cable
    G02877134Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector (A) from idle air control solenoid valve.
  3. Disconnect air by-pass hose (B) from idle air control solenoid valve.
  4. Remove idle air control solenoid valve from throttle body.
    Fig 2: Removing Idle Air Control Solenoid Valve From Throttle Body
    G02877135Courtesy of SUBARU OF AMERICA, INC.
