VTD Model

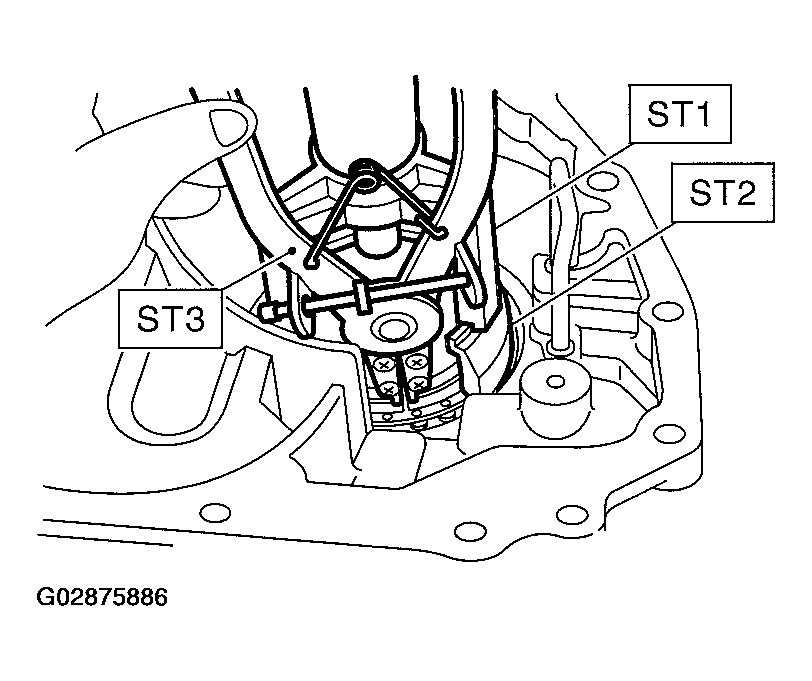

  1. Remove snap ring using ST1, ST2, ST3 and a press.
    1. ST1 398673600 COMPRESSOR
    2. ST2 498627100 SHEAT
    3. ST3 398663600 PLYER
    Fig 1: Removing Snap Ring ST (VTD Model)
    G02875886Courtesy of SUBARU OF AMERICA, INC.

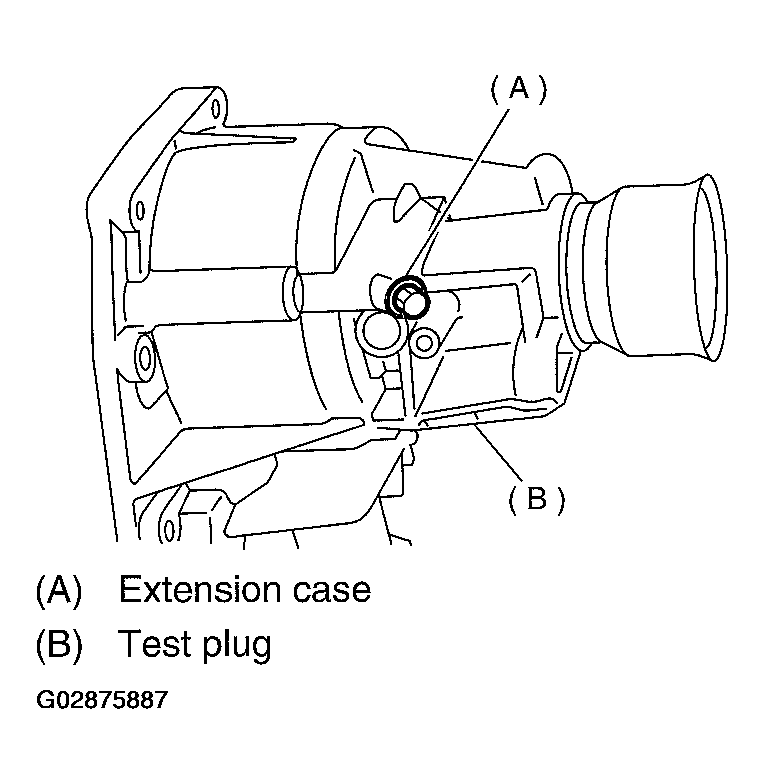

  2. Remove test plug.
    Fig 2: Removing Test Plug
    G02875887Courtesy of SUBARU OF AMERICA, INC.

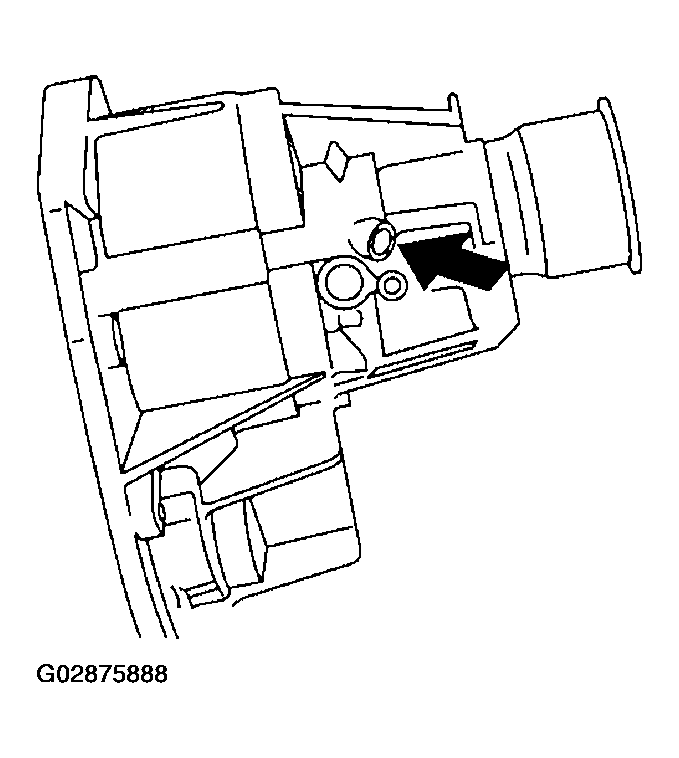

  3. Remove clutch piston using compressed air.
    Fig 3: Removing Clutch Piston Using Compressed Air
    G02875888Courtesy of SUBARU OF AMERICA, INC.

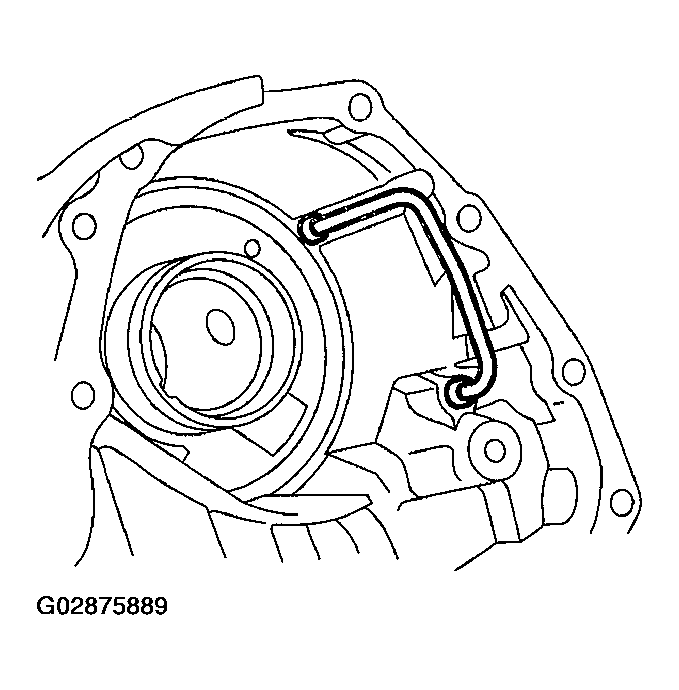

  4. Pay attention, not to bend pipe, and remove transfer clutch pipe.
    Fig 4: Removing Transfer Clutch Pipe
    G02875889Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the dust cover from the extension case.
  6. Remove the oil seal from the extension case.
