Torque Converter Clutch

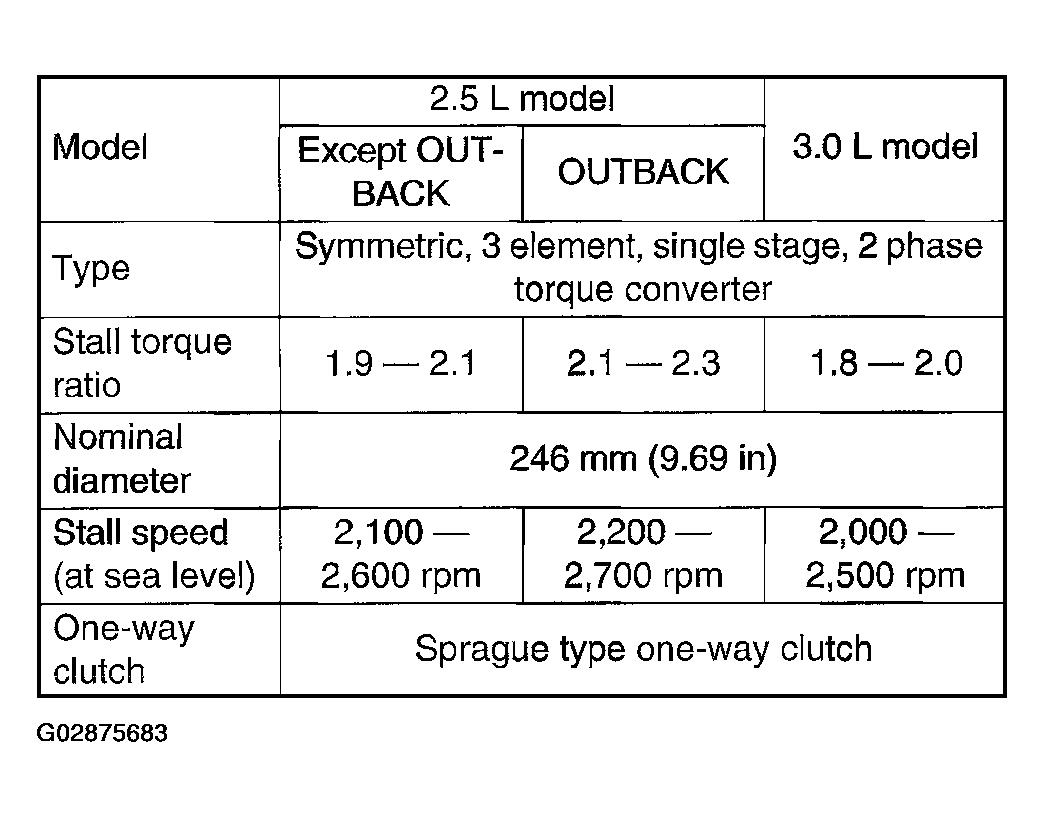

Fig 1: Torque Converter Clutch Specifications Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
